TH8D36CA has a power of up to 12,000 watts for car multifunction device, which can pass the car surge test.
Car multi-function instrument integrates a variety of functions of automotive electronic equipment, including vehicle diagnostics, driving records, navigation, Bluetooth connectivity, reverse camera, vehicle information display, safety warning and other functions. As products on the car, they are easier to be subjected to a variety of car surge impact, especially in the case of throwing loads. Huge surge energy is very easy to damage the car products. And now Socay Electronics launched a car surge special protection device TH8D36CA for car surge.
The device adopts plug-in package for easy installation. Anti-surge capability is very strong. The diode itself power up to 12000W and can pass surge level of ISO 7637-2:2004 standard, 24V system: waveform-5A , 174V, 2 Ω, 350ms .
TH8D36CA's operating voltage 36V, Clamp voltage 58.1V within the operating temperature range of -55 ~ +150 ℃.
TH8D36CA Transient Suppression Diode Features:
Operating voltage VR: 36V
Breakdown voltage VBR @ (1mA): 40.00V - 44.20V
Clamp voltage VC @ (200.7A): 59.8V
Leakage Current IR @ (36V): 5uA

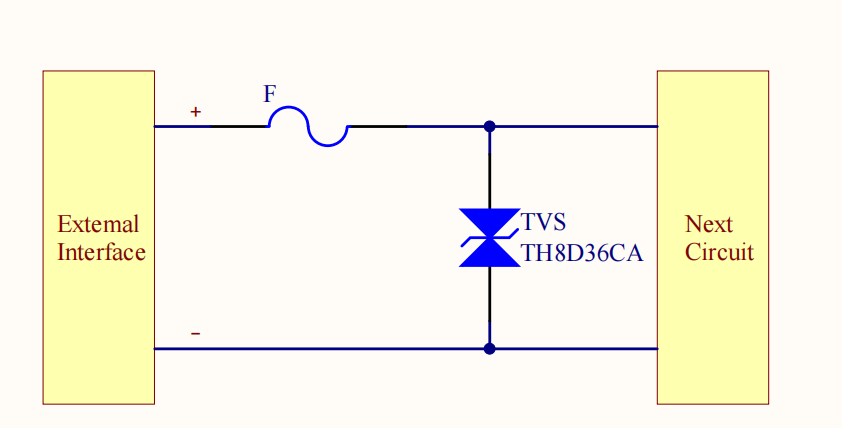

Protection diagram of TH8D36CA-transient suppression diode:
TH8D36CA-Transient Suppressor Diode Applications.
Etc.
