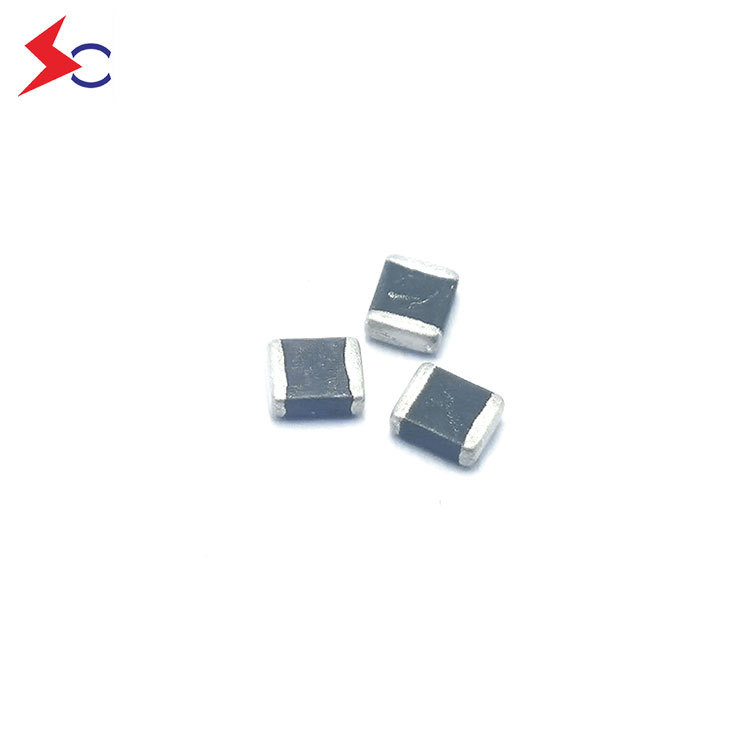

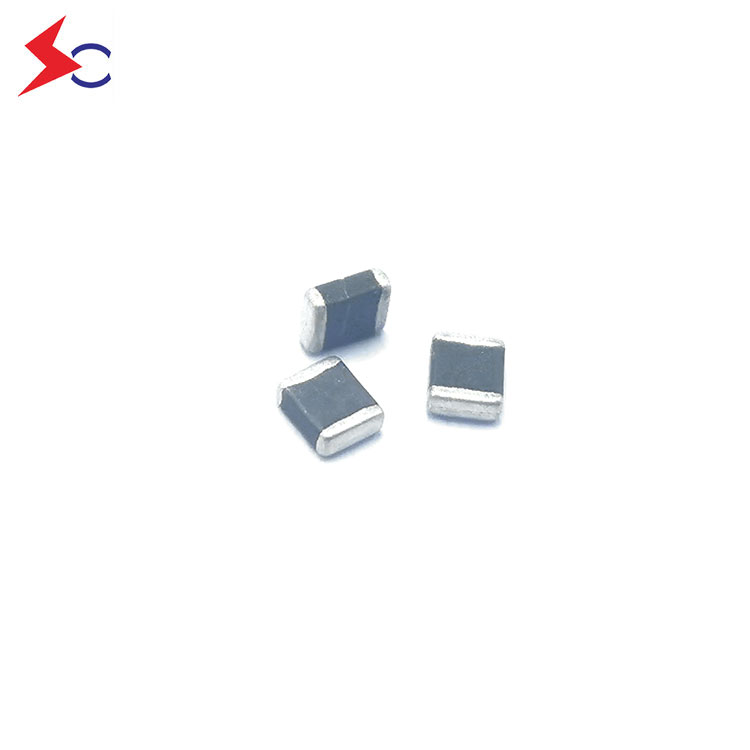

18V Surface Mount Multilayer Varistor SV1210N180G0A Application for Cellular Phone

Name: 18V Surface Mount Multilayer Varistor SV1210N180G0A Application for Cellular Phone
Brand: DIANDAODIAN
Price: 0.1 USD
Availability: InStock

0.0 (0)

0 Sold

$0.10 ~~$0.11~~

Part Number: SV1210N180G0A
Max. VRMS: 14V
Max. VDC: 18V
Min. Vv: 21.6V
Max. Vv: 27V
Max. Vc: 59V
Imax: 250A
Wmax: 0.8J
Dimension: 3.20 * 2.50 * 2.50 mm

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Description:

The SV1210N180G0A is based on Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC). The SV1210N180G0A is typically applied to protect integrated circuits and other components at the circuit board level. It can operate over a wider temperature range than zener diodes.

Features：
Rectangle, sizes serialization for hybrid integrated circuit or printed circuit surface mount components.
There are many side electrode lead-out material, particularly suitable for surface mount technology for solderability and resistance to soldering heat of the stringent requirements.
Fast response (<1ns).
Low leakage current, low clamping voltage.
Suitable for reflow, wave soldering and hot air hand soldering.

Applications：
Application for Mother Board, Notebook, Cellular Phone, PDA, handheld device, DSC, DV, Scanner, and Set- Top Box…etc.
Suitable for Push-Button, Power Line and Low Frequency single line over-voltage protect.

Part Number: SV1210N180G0A
Max. VRMS: 14V
Max. VDC: 18V
Min. Vv: 21.6V
Max. Vv: 27V
Max. Vc: 59V
Imax: 250A
Wmax: 0.8J
Dimension: 3.20 * 2.50 * 2.50 mm
