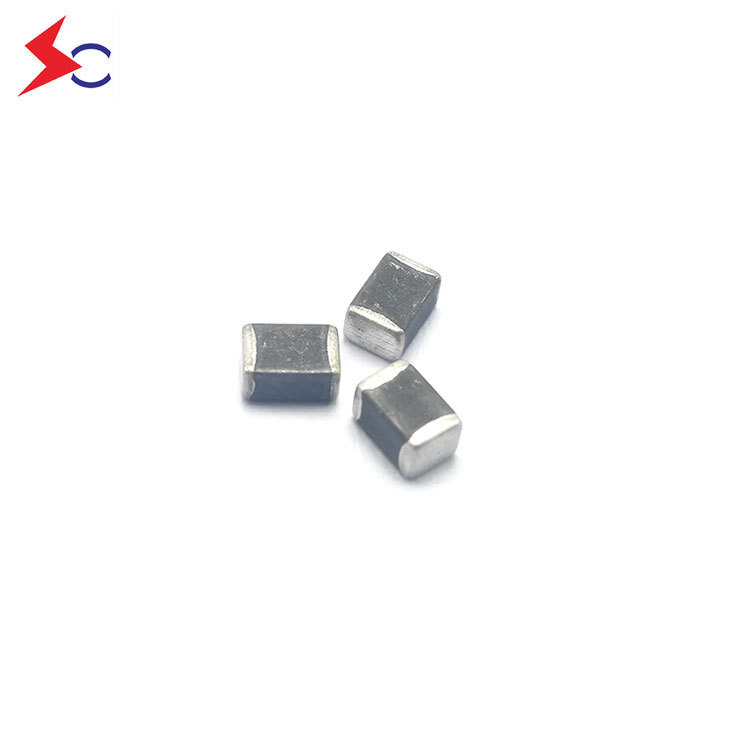

  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
1/1
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
Share:

460V Max VDC Chip Varistor SV1812H561G0A High Quality and Affordable Price

SKU:
0.0 (0)
0 Sold
$0.18 $0.19
Part Number: SV1812H561G0A
Max. VRMS: 350V
Max. VDC: 460V
Min. Vv: 504V
Max. Vv: 616V
Max. Vc: 925V
Imax: 400A
Wmax: 2.3J
Dimension: 4.50 * 3.20 * 3.70 mm
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
Add to Favorites (0)
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
1/1
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • Description

Description:

The SV1812H561G0A is based on Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC). The SV1812H561G0A is typically applied to protect integrated circuits and other components at the circuit board level. It can operate over a wider temperature range than zener diodes.


Features：
Rectangle, sizes serialization for hybrid integrated circuit or printed circuit surface mount components.
There are many side electrode lead-out material, particularly suitable for surface mount technology for solderability and resistance to soldering heat of the stringent requirements.
Fast response (<1ns).
Low leakage current, low clamping voltage.
Suitable for reflow, wave soldering and hot air hand soldering.


Applications：
Application for Mother Board, Notebook, Cellular Phone, PDA, handheld device, DSC, DV, Scanner, and Set- Top Box…etc.
Suitable for Push-Button, Power Line and Low Frequency single line over-voltage protect.




Part Number: SV1812H561G0A
Max. VRMS: 350V
Max. VDC: 460V
Min. Vv: 504V
Max. Vv: 616V
Max. Vc: 925V
Imax: 400A
Wmax: 2.3J
Dimension: 4.50 * 3.20 * 3.70 mm

Datasheet
