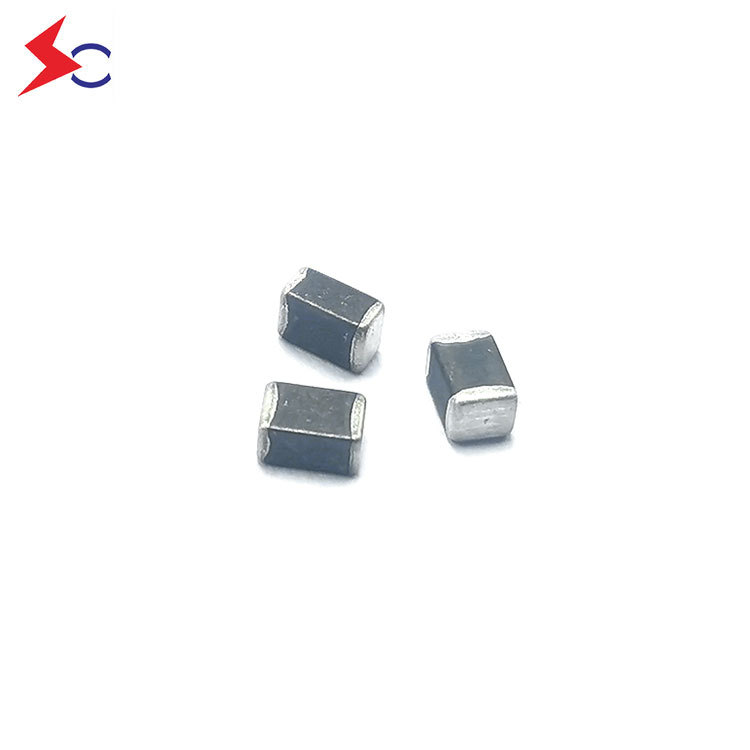

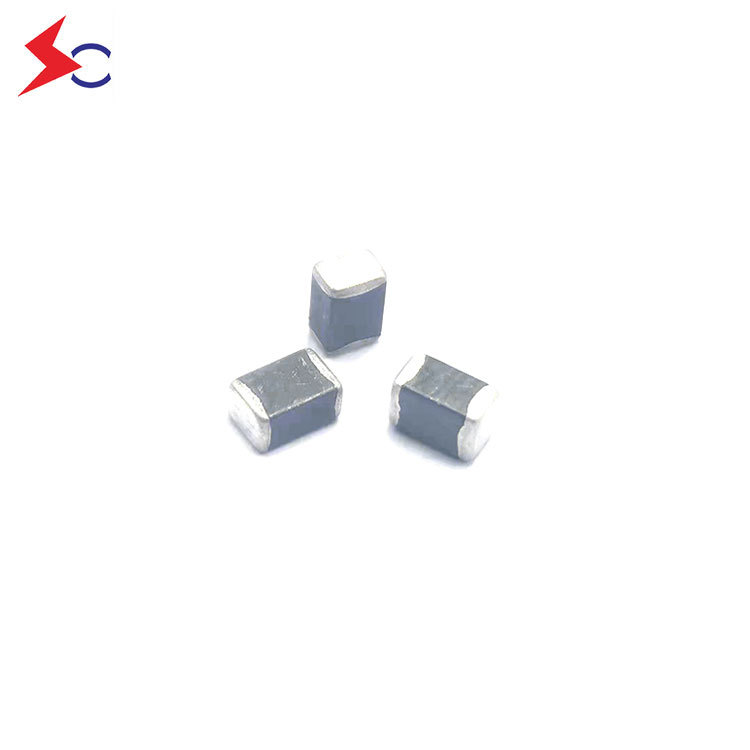

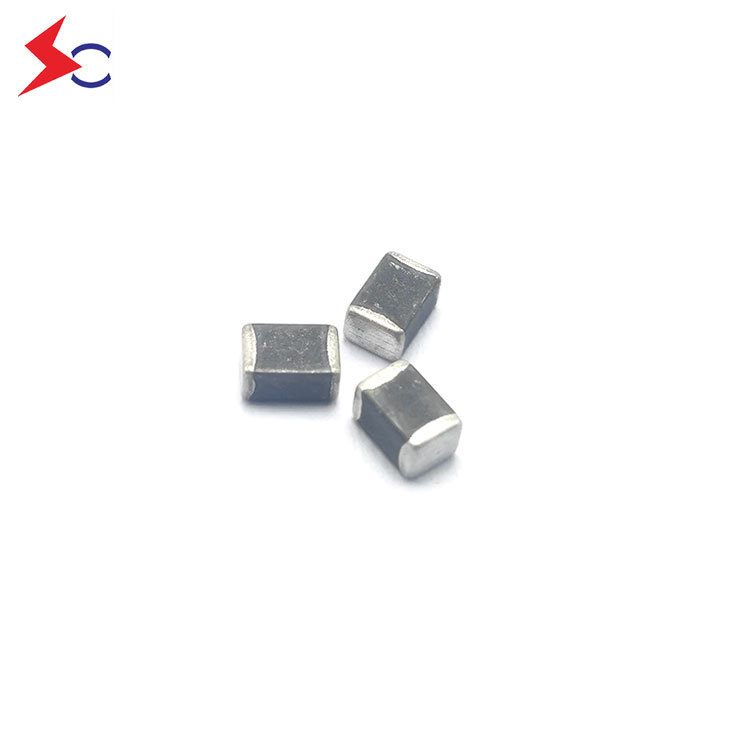

Based on Multilayer Fabrication Technology SV1812H121G0A Designed to Suppress a Variety of Transient Events

Name: Based on Multilayer Fabrication Technology SV1812H121G0A Designed to Suppress a Variety of Transient Events
Brand: DIANDAODIAN
SKU: SV1812H121G0A
Price: 0.17 USD
Availability: InStock

0.0 (0)

0 Sold

$0.17 ~~$0.18~~

Part Number: SV1812H121G0A
Max. VRMS: 71V
Max. VDC: 100V
Min. Vv: 108V
Max. Vv: 132V
Max. Vc: 290V
Imax: 500A
Wmax: 1.8J
Dimension: 4.50 * 3.20 * 3.40 mm

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Description:

The SV1812H121G0A is based on Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC). The SV1812H121G0A is typically applied to protect integrated circuits and other components at the circuit board level. It can operate over a wider temperature range than zener diodes.

Features：
Rectangle, sizes serialization for hybrid integrated circuit or printed circuit surface mount components.
There are many side electrode lead-out material, particularly suitable for surface mount technology for solderability and resistance to soldering heat of the stringent requirements.
Fast response (<1ns).
Low leakage current, low clamping voltage.
Suitable for reflow, wave soldering and hot air hand soldering.

Applications：
Application for Mother Board, Notebook, Cellular Phone, PDA, handheld device, DSC, DV, Scanner, and Set- Top Box…etc.
Suitable for Push-Button, Power Line and Low Frequency single line over-voltage protect.

Part Number: SV1812H121G0A
Max. VRMS: 71V
Max. VDC: 100V
Min. Vv: 108V
Max. Vv: 132V
Max. Vc: 290V
Imax: 500A
Wmax: 1.8J
Dimension: 4.50 * 3.20 * 3.40 mm
