Socay Negative Temperature Coefficient Thermistor MF72-SCN16D-5 For Switch Mode Power Supply

Name: Socay Negative Temperature Coefficient Thermistor MF72-SCN16D-5 For Switch Mode Power Supply
Brand: DIANDAODIAN
Price: 0.03 USD
Availability: InStock

0.0 (0)

0 Sold

$0.03 ~~$0.04~~

Part Number: MF72-SCN16D-5
Resistance at 25℃ ±20%: 16Ω
Max. Permissible Working Current: 0.5A
Resistance under Load: 1093mΩ
Dissipation Factor: 6mW/℃
Thermal Time Constant: 18 Sec.
Maximum Permissible Capacitance @240Vac: 47μF
Dimension: φ5mm

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Descriptions：
Negative Temperature Coefficient Thermistor, also known as NTC Thermistor, is a type of sensor resistor whose resistance value decreases with increasing temperature. Widely used in various electronic components, such as temperature sensors, reversible fuses, and automatically adjustable heaters.

Features：
RoHS & Halogen Free (HF) compliant.
Body size: Ф5mm.
Radial lead resin coated.
High power rating.
Wide resistance range.
Cost effective.
Operating temperature range: -40~+200℃.

Applications：
Switch mode power supply.
Electric motor.
Transformer.
Adapter.
Projector.
Halogen lamp.
LED driver circuit.

Storage Conditions of Products：
Storage Conditions:
Storage Temperature: -10℃ ~ +40℃.
Relative Humidity: ≤ 75%RH.
Keep away from corrosive atmosphere and sunlight.
Period of Storage: 1 year.

Part Number: MF72-SCN16D-5
Resistance at 25℃ ±20%: 16Ω
Max. Permissible Working Current: 0.5A
Resistance under Load: 1093mΩ
Dissipation Factor: 6mW/℃
Thermal Time Constant: 18 Sec.
Maximum Permissible Capacitance @240Vac: 47μF
Dimension: φ5mm

CUSTOMER REVIEWS

0.0 0 Reviews

Write a review

Reviews

With Media

Socay Negative Temperature Coefficient Thermistor MF72-SCN16D-5 For Switch Mode Power Supply

Quantity:

Datasheet

CUSTOMER REVIEWS

You May Like

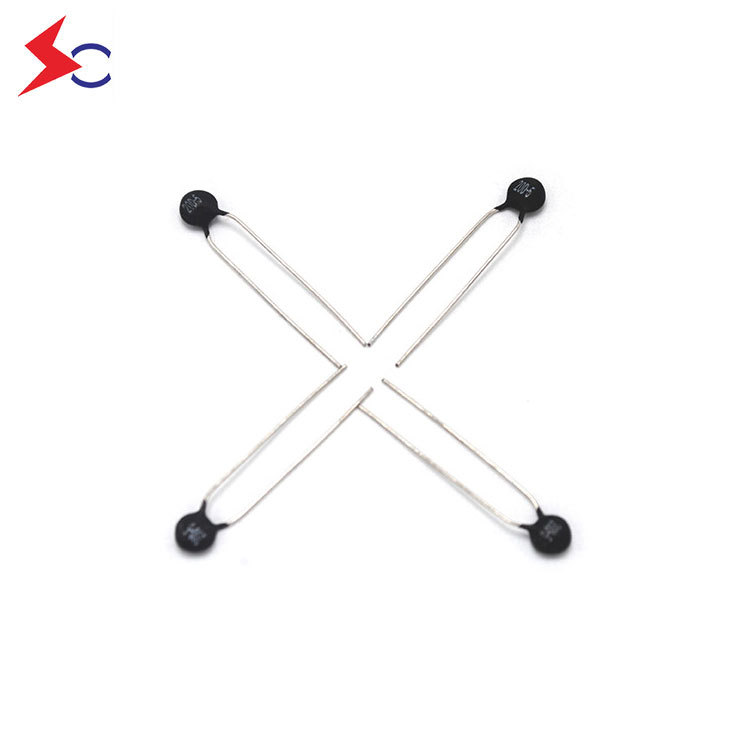

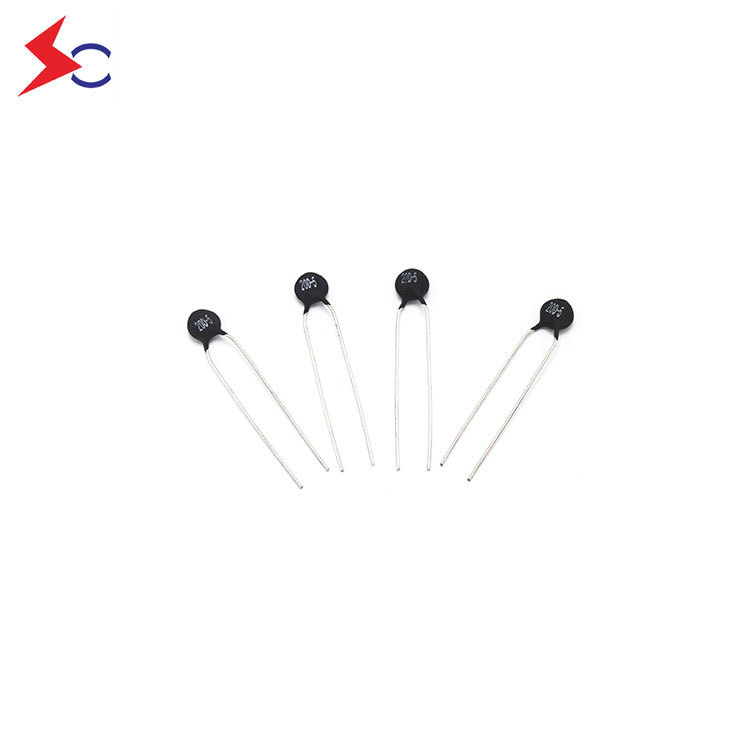

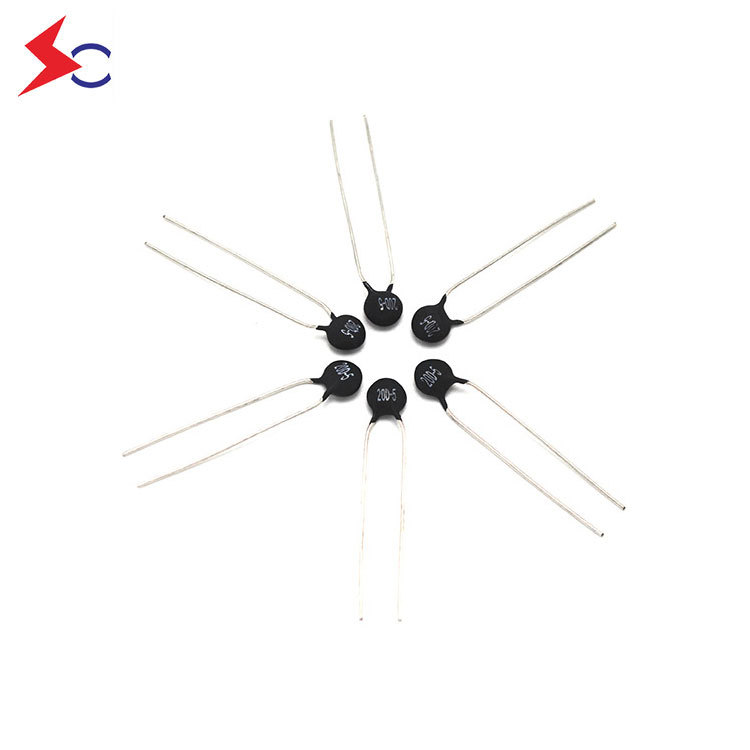

Socay Radial Lead Resin Coated NTC Thermistor MF72-SCN20D-5 Negative Temperature Coefficient Thermistor
