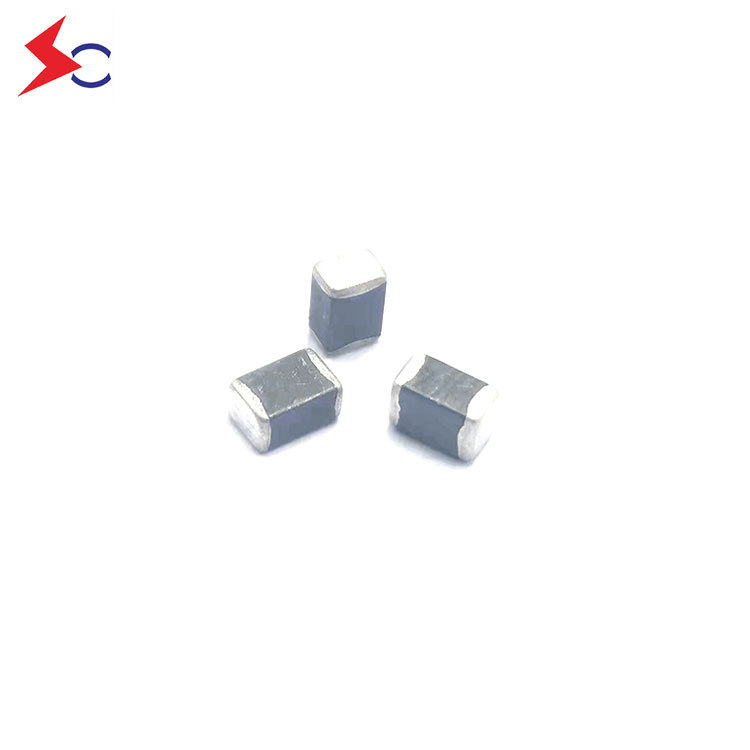

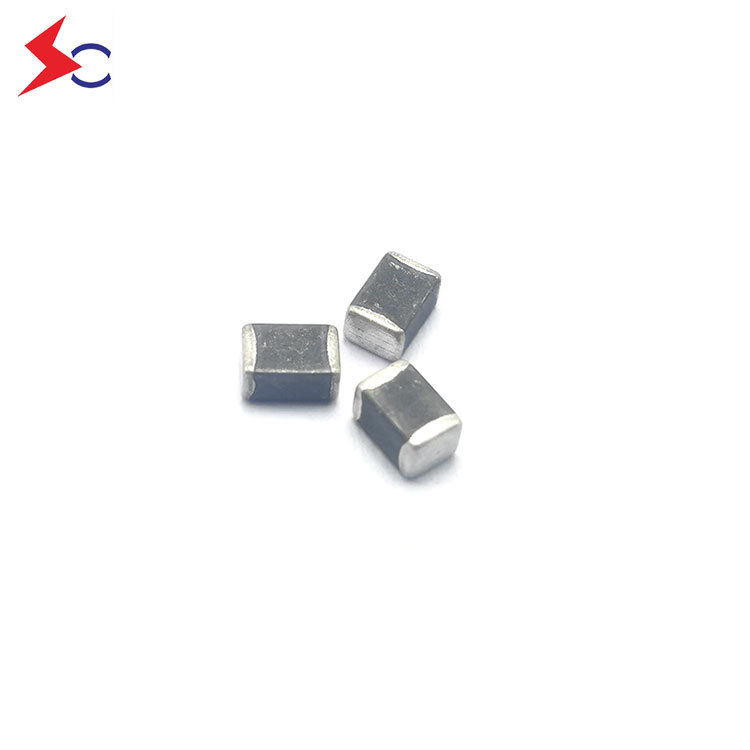

  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
1/1
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
Share:

Original SMD Varistor 56V Maximum DC Operating Voltage SV1812N560G0A Fast Response (<1ns)

SKU:
0.0 (0)
0 Sold
$0.17 $0.18
Part Number: SV1812N560G0A
Max. VRMS: 40V
Max. VDC: 56V
Min. Vv: 67.2V
Max. Vv: 84V
Max. Vc: 184V
Imax: 800A
Wmax: 1.5J
Dimension: 4.50 * 3.20 * 3.20 mm
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
Add to Favorites (0)
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
1/1
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • Description

Description:

The SV1812N560G0A is based on Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC). The SV1812N560G0A is typically applied to protect integrated circuits and other components at the circuit board level. It can operate over a wider temperature range than zener diodes.


Features：
Rectangle, sizes serialization for hybrid integrated circuit or printed circuit surface mount components.
There are many side electrode lead-out material, particularly suitable for surface mount technology for solderability and resistance to soldering heat of the stringent requirements.
Fast response (<1ns).
Low leakage current, low clamping voltage.
Suitable for reflow, wave soldering and hot air hand soldering.


Applications：
Application for Mother Board, Notebook, Cellular Phone, PDA, handheld device, DSC, DV, Scanner, and Set- Top Box…etc.
Suitable for Push-Button, Power Line and Low Frequency single line over-voltage protect.




Part Number: SV1812N560G0A
Max. VRMS: 40V
Max. VDC: 56V
Min. Vv: 67.2V
Max. Vv: 84V
Max. Vc: 184V
Imax: 800A
Wmax: 1.5J
Dimension: 4.50 * 3.20 * 3.20 mm

Datasheet
