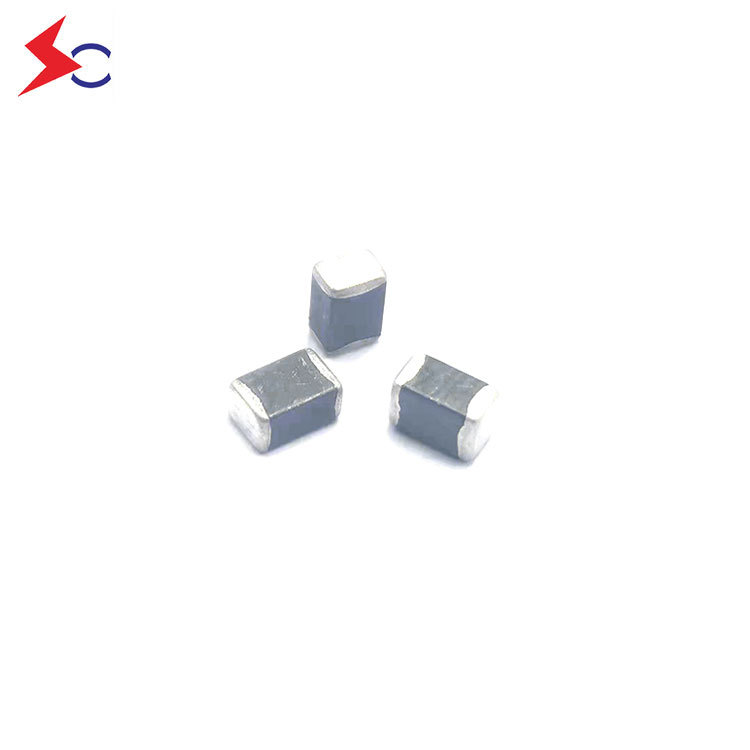

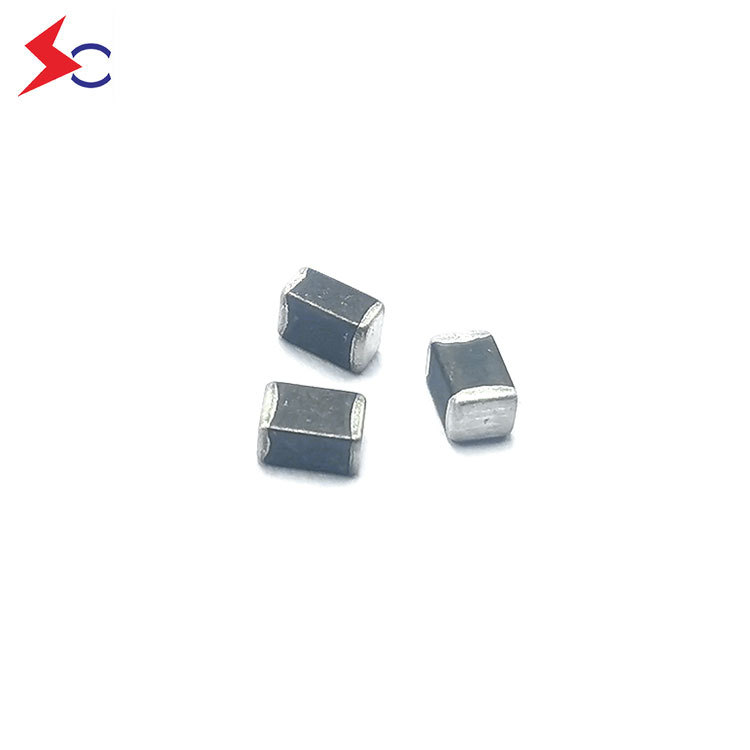

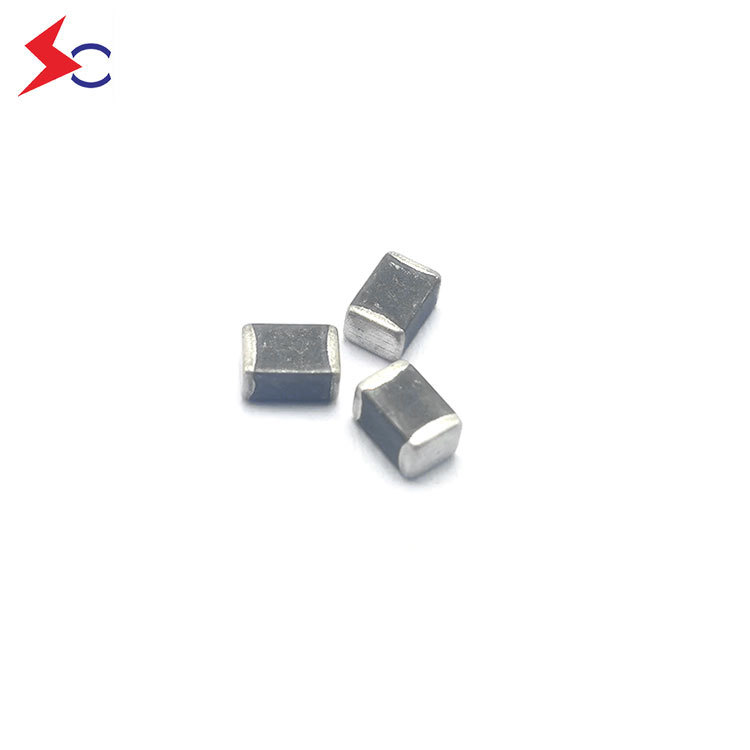

SMD Type Zinc Oxide Based Ceramic Chip Varistor SV1812N260G0B High Reliability Multilayer Varistor

SKU:
0.0 (0)
0 Sold
$0.46 $0.47
Part Number: SV1812N260G0B
Max. VRMS: 18V
Max. VDC: 26V
Min. Vv: 31V
Max. Vv: 38V
Max. Vc: 62V
Typ. Cp: 2300pF
Imax: 800A
Dimension: 4.50 * 3.20 * 2.5 mm
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
Add to Favorites (0)
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
1/1
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • SMD1812 Series Multilayer Varistor SV1812H271G0A Surface Mount Suitable for Push-Button
  • Description

Description:

The SV1812N260G0B is based on Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC). The SV1812N260G0B is typically applied to protect integrated circuits and other components at the circuit board level. It can operate over a wider temperature range than zener diodes.


Features：
Rectangle, sizes serialization for hybrid integrated circuit or printed circuit surface mount components.
There are many side electrode lead-out material, particularly suitable for surface mount technology for solderability and resistance to soldering heat of the stringent requirements.
Fast response (<1ns).
Low leakage current, low clamping voltage.
Suitable for reflow, wave soldering and hot air hand soldering.


Applications：
Application for Mother Board, Notebook, Cellular Phone, PDA, handheld device, DSC, DV, Scanner, and Set- Top Box…etc.
Suitable for Push-Button, Power Line and Low Frequency single line over-voltage protect.




Part Number: SV1812N260G0B
Max. VRMS: 18V
Max. VDC: 26V
Min. Vv: 31V
Max. Vv: 38V
Max. Vc: 62V
Typ. Cp: 2300pF
Imax: 800A
Dimension: 4.50 * 3.20 * 2.5 mm
