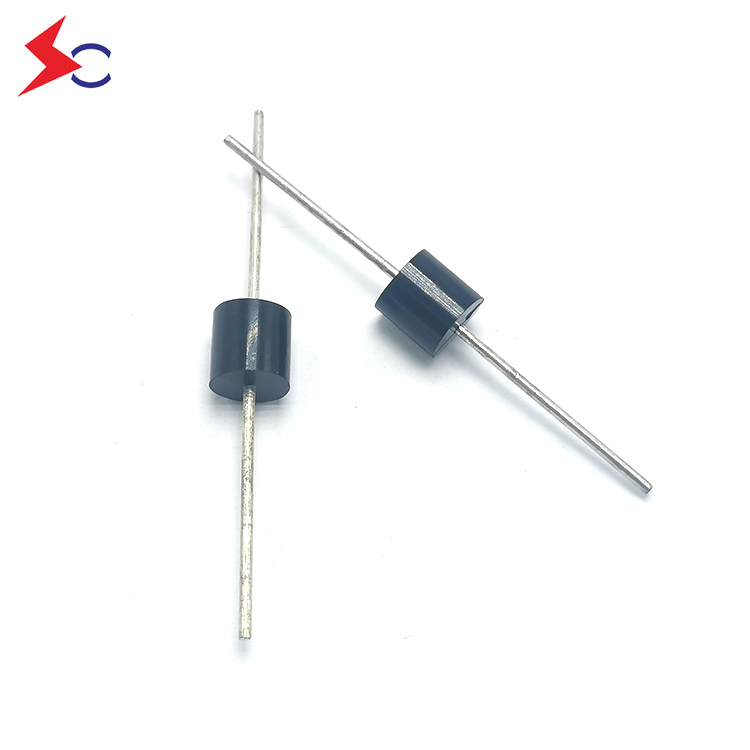

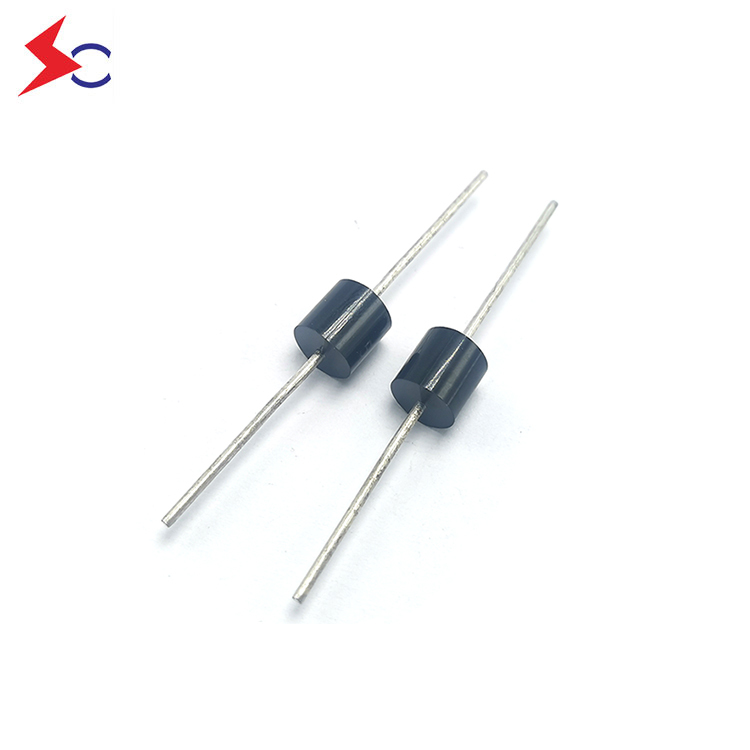

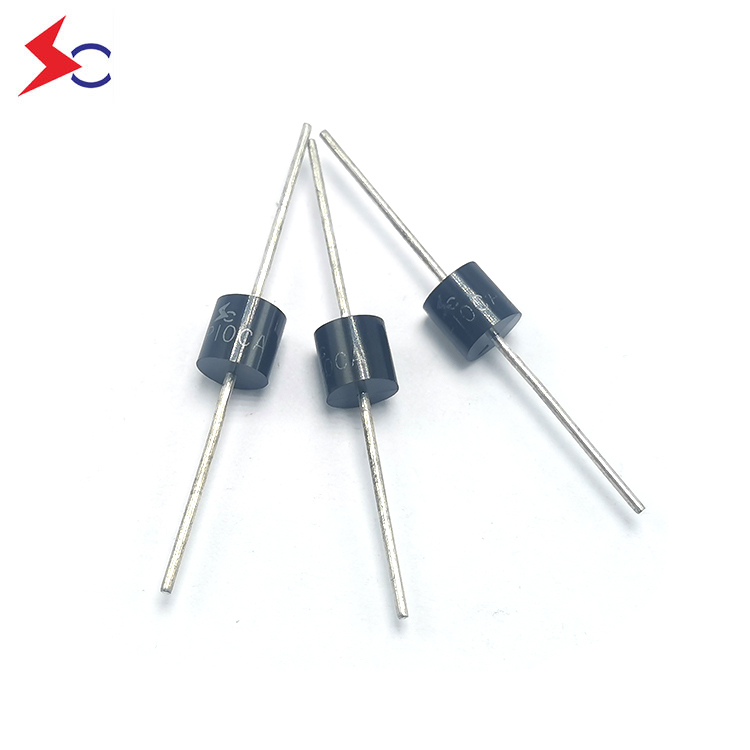

SOCAY Axial Lead TVS 6600W 43.0V P600 Package TH8S43A TH8S Series Transient Voltage Suppressors Diodes
SKU: TH8S43A
(0)
0 Sold
$0.61
$0.62
The Price Is For Reference Only. Please Consult Customer Service.
Reverse Stand-Off Voltage VRWM (V)：43.0
Reverse Leakage IR@VRWM (μA)：5.0
Breakdown Voltage VBR(V) @IT(Min)：47.8
Breakdown Voltage VBR(V) @IT(Max)：52.8
Test Current IT (mA)：5.0
Maximum Clamping Voltage VC@IPP (V) ：69.4
Maximum Peak Pulse Current IPP (A)：95.1
