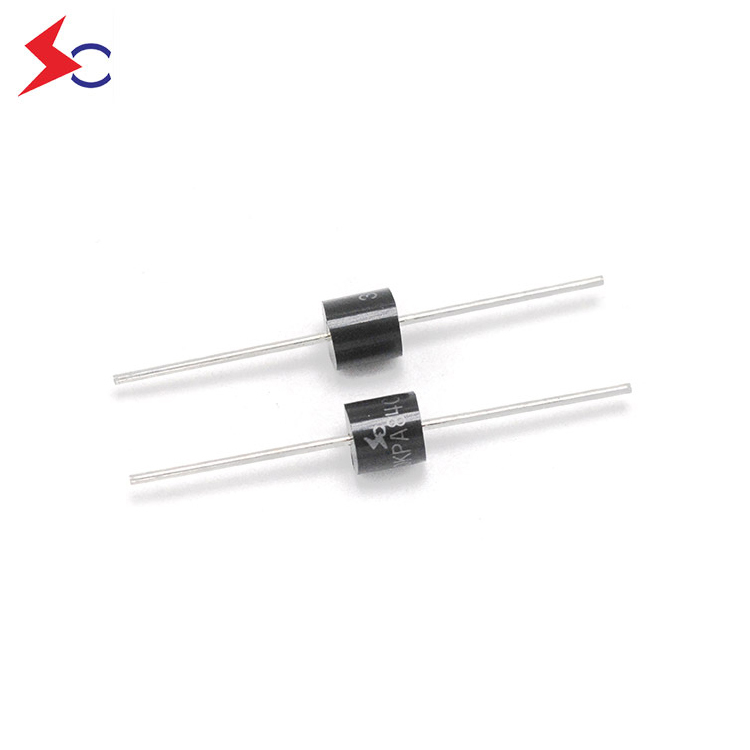

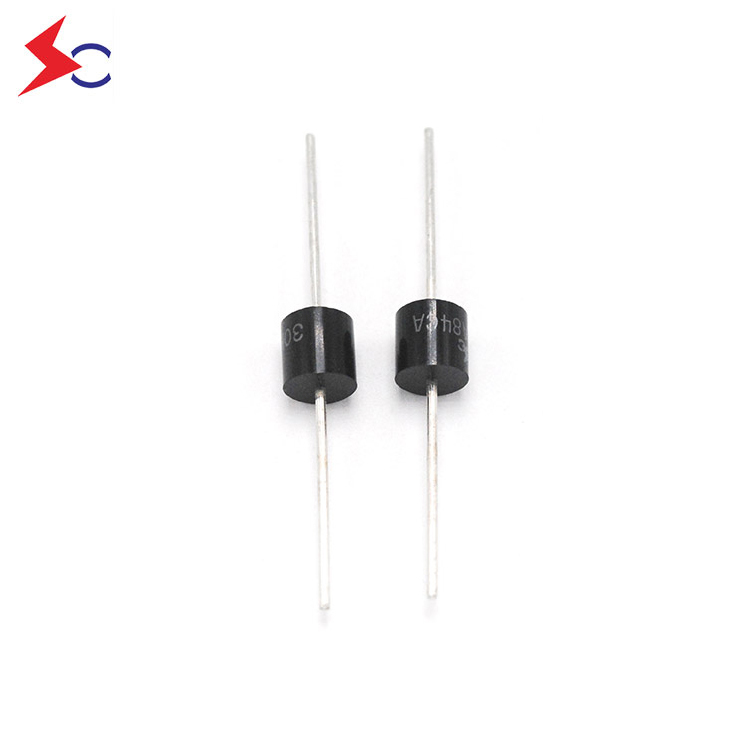

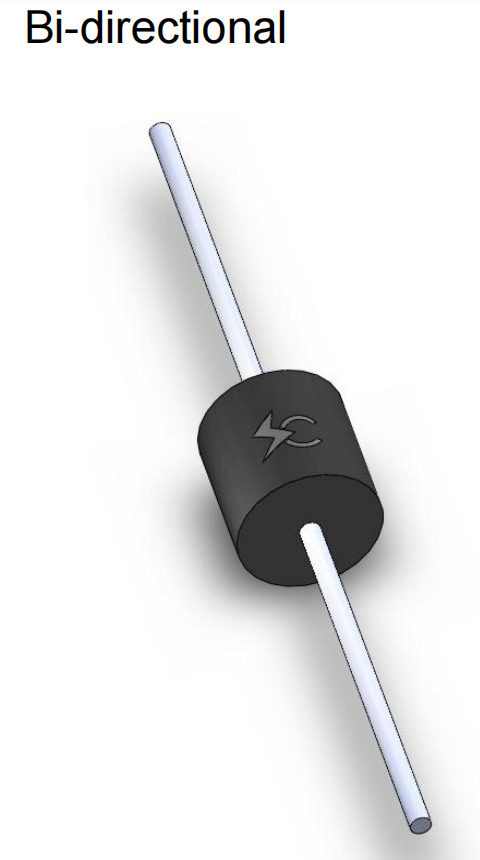

SOCAY Bi-directional 30KPA Series R6 Package TVS 30KPA72CA Axial Lead Transient Voltage Suppressors Diodes For Consumer Electronic Applications
SKU: 30KPA72CA
(0)
0 Sold
$2.66
$2.67
The Price Is For Reference Only. Please Consult Customer Service.
Reverse Stand-Off Voltage VRWM (V)：72.0
Breakdown Voltage VBR(V) @IT(Min)：80.4
Test Current IT (mA)：5.0
Maximum Clamping Voltage VC@IPP (V) ：114.0
Maximum Peak Pulse Current IPP (A)：265.8
Maximum Reverse Leakage IR@VRWM (μA)：2.0
