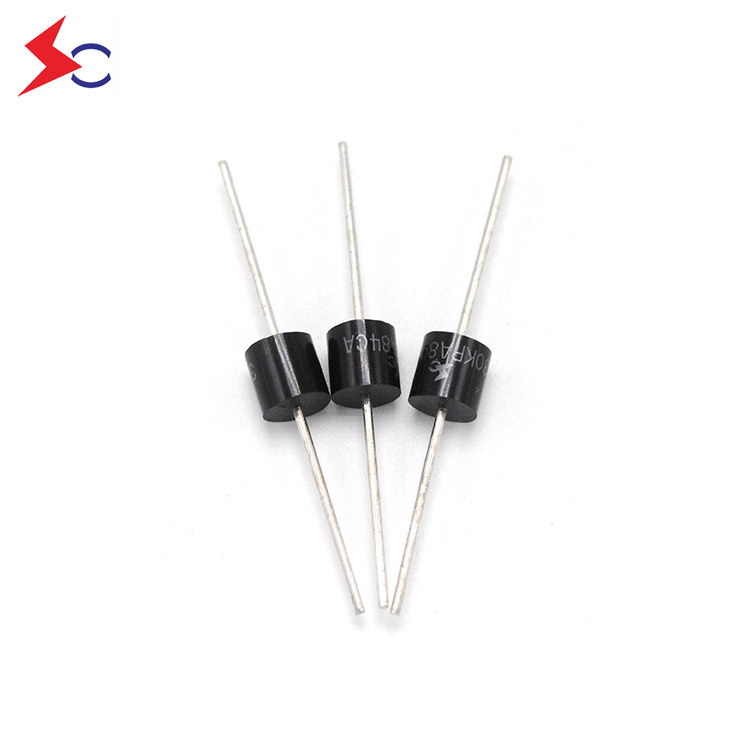

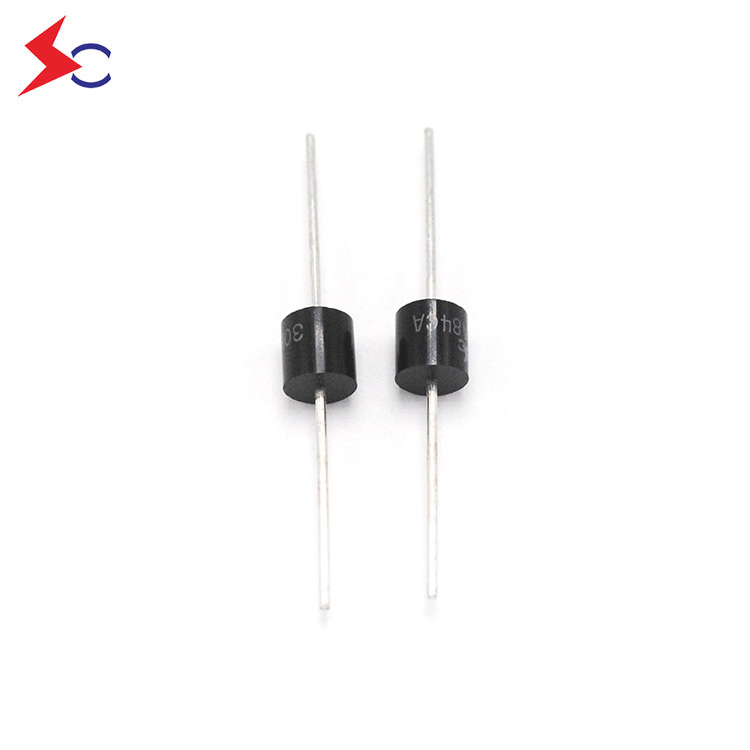

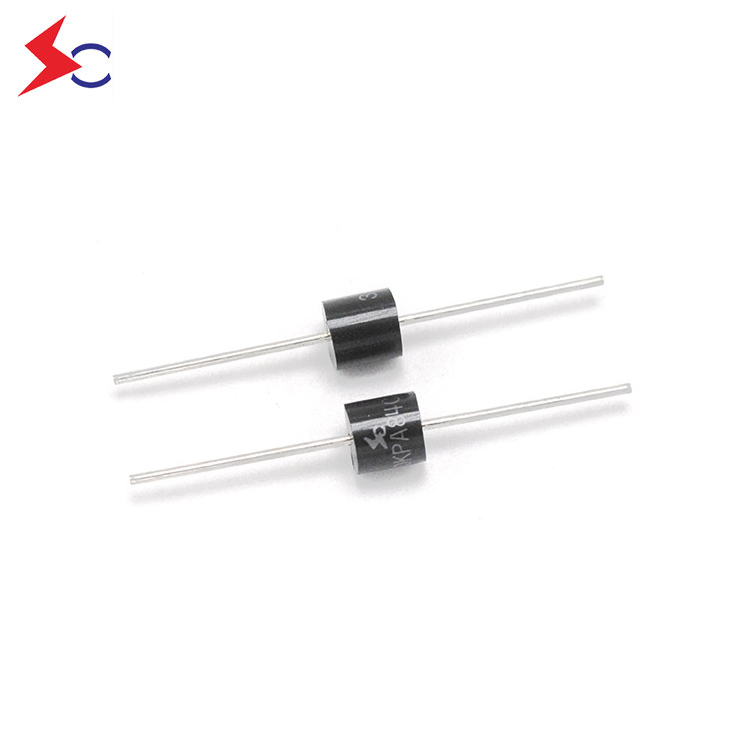

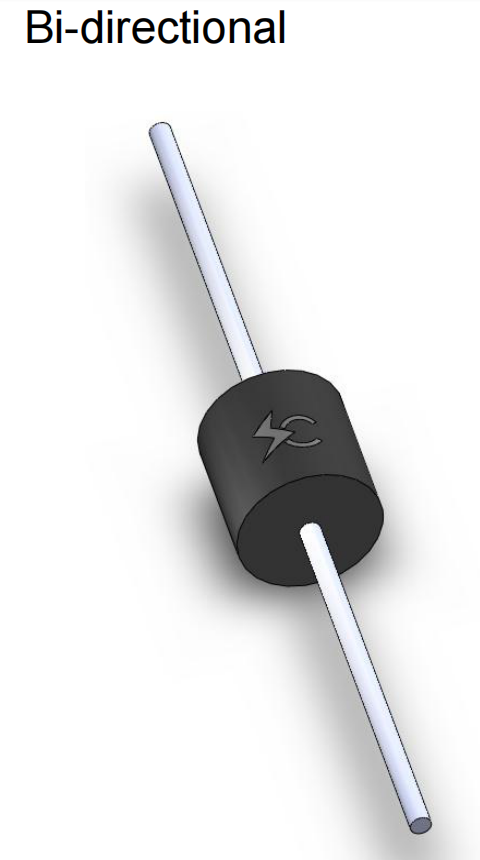

SOCAY Circuit Protection Axial Lead TVS 30000W Diodes 30KPA150CA R6 Package Transient Voltage Suppressors For Consumer Electronic Applications
SKU: 30KPA150CA
(0)
0 Sold
$2.66
$2.67
The Price Is For Reference Only. Please Consult Customer Service.
Reverse Stand-Off Voltage VRWM (V)：150.0
Breakdown Voltage VBR(V) @IT(Min)：167.6
Breakdown Voltage VBR(V) @IT(Max)：184.36
Test Current IT (mA)：5.0
Maximum Clamping Voltage VC@IPP (V) ：233.4
Maximum Peak Pulse Current IPP (A)：129.8
Maximum Reverse Leakage IR@VRWM (μA)：2.0
