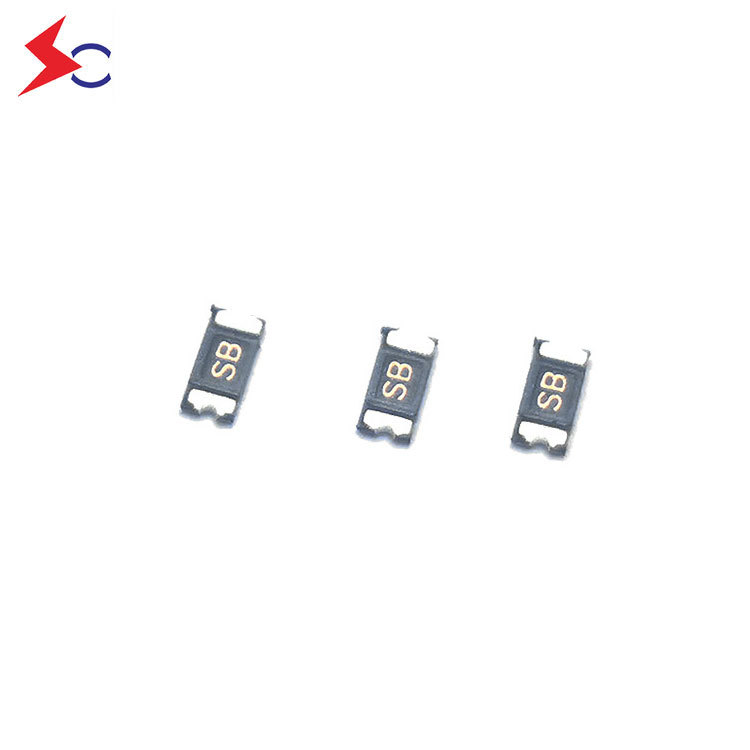

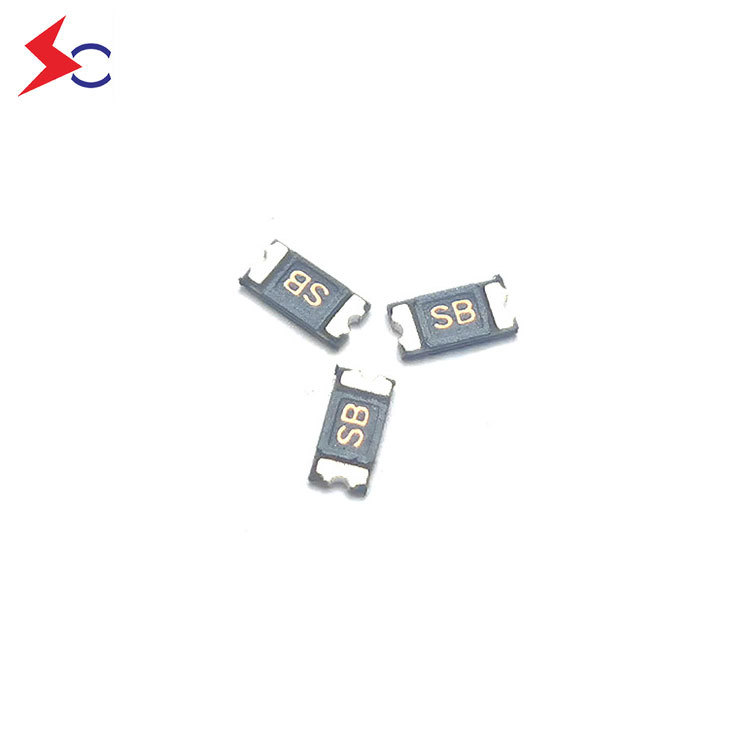

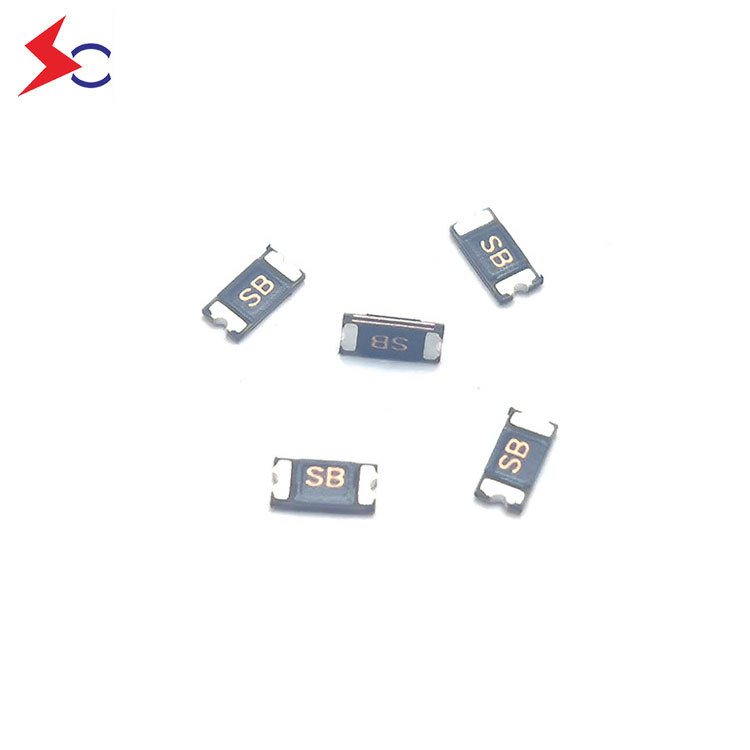

SOCAY Circuit Protection Surface Mount PPTC 7.0Vdc SCF700-1206RZB SMD Resettable Polymer PTCs Fuses
SKU: SCF700-1206RZB
(0)
0 Sold
$0.11
$0.12
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SCF700-1206RZB
Hold Current—I hold(A)：7.0
Trip Current—I trip(A)：14.0
Rated Voltage—V max(Vdc)：6.0
Max Current—I max(A)：50.0
Typical Power—P dtyp.(W)：1.2
Maximum TimeTo Trip—Current(A) ：35.0
Maximum TimeTo Trip—Time(Sec.)：2.0
Resistance—R min(Ω)：0.001
Resistance—R 1max(Ω)：0.008
Part Number：SCF700-1206RZB
Hold Current—I hold(A)：7.0
Trip Current—I trip(A)：14.0
Rated Voltage—V max(Vdc)：6.0
Max Current—I max(A)：50.0
Typical Power—P dtyp.(W)：1.2
Maximum TimeTo Trip—Current(A) ：35.0
Maximum TimeTo Trip—Time(Sec.)：2.0
Resistance—R min(Ω)：0.001
Resistance—R 1max(Ω)：0.008
