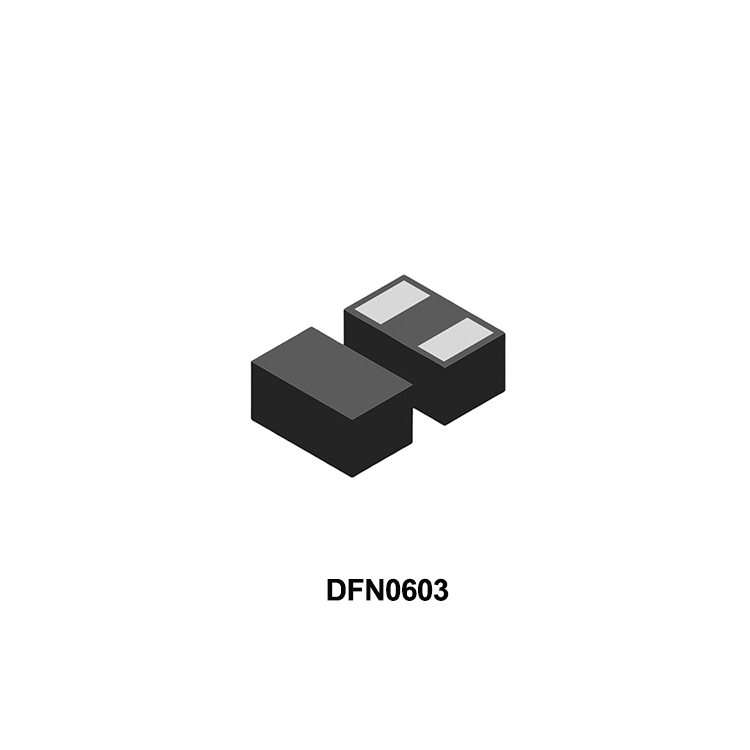

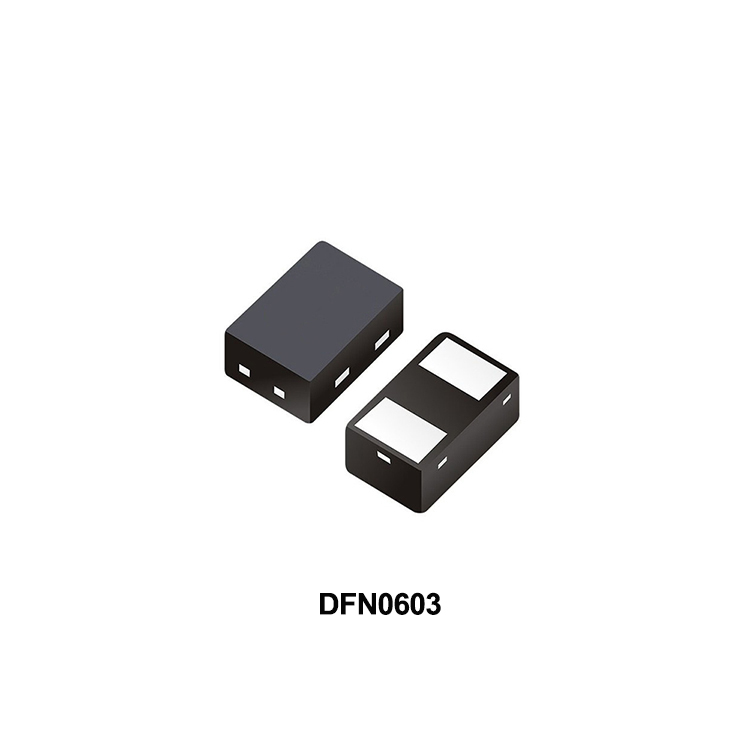

DFN0603 Surface Mount Schottky Rectifiers SKD0103N2 Chinese 30V Schottky Barrier Diode

Name: DFN0603 Surface Mount Schottky Rectifiers SKD0103N2 Chinese 30V Schottky Barrier Diode
Brand: DIANDAODIAN
SKU: SKD0103N2
Price: 0.08 USD
Availability: InStock

0.0 (0)

0 Sold

$0.08 ~~$0.09~~

Part Number：SKD0103N2
VRRM (Max.)：30V
VRMS (Max.)：21V
VR (Max.)：30V
IF(AV) (Max.)：100mA
PD：250mW
IFSM：500mA
RθJA：500℃/W
TJ,TSTG：-55℃ to +150℃
Package：DFN0603

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Features：
Fast switching speed
Surface mount package ideally suited for automatic insertion
Electrical identical standard JEDEC
High conductor
Lead free in compliance with EU RoHS 2.0
Green molding compound as per IEC 61249 standard

Mechanical Data：
Case: DFN0603-2L, Molded Plastic
Terminals: Solderable per MIL-STD-750, Method 2026
Approx. Weight: 0.00001 ounces, 0.00028grams
Polarity: Color band denotes cathode end

Part Number：SKD0103N2
VRRM (Max.)：30V
VRMS (Max.)：21V
VR (Max.)：30V
IF(AV) (Max.)：100mA
PD：250mW
IFSM：500mA
RθJA：500℃/W
TJ,TSTG：-55℃ to +150℃
Package：DFN0603
