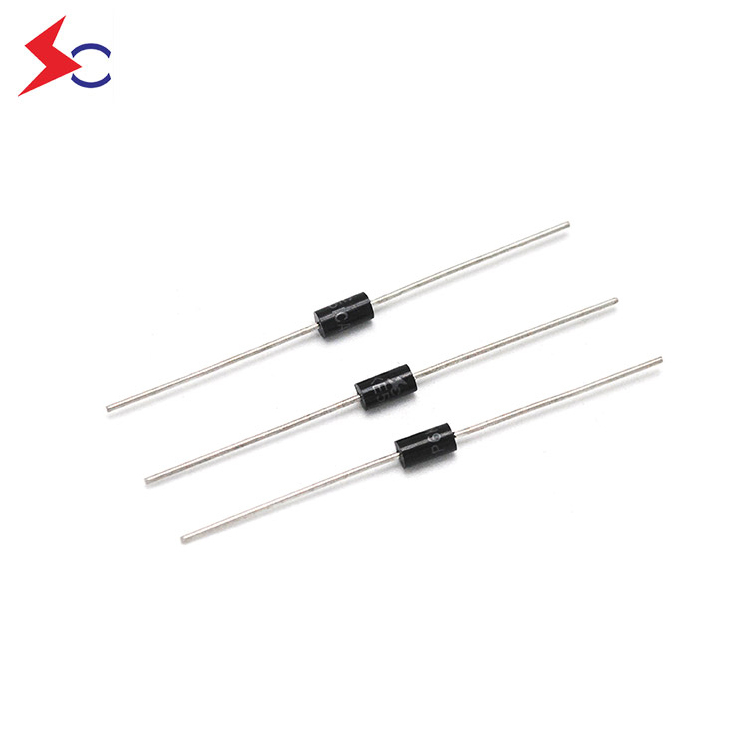

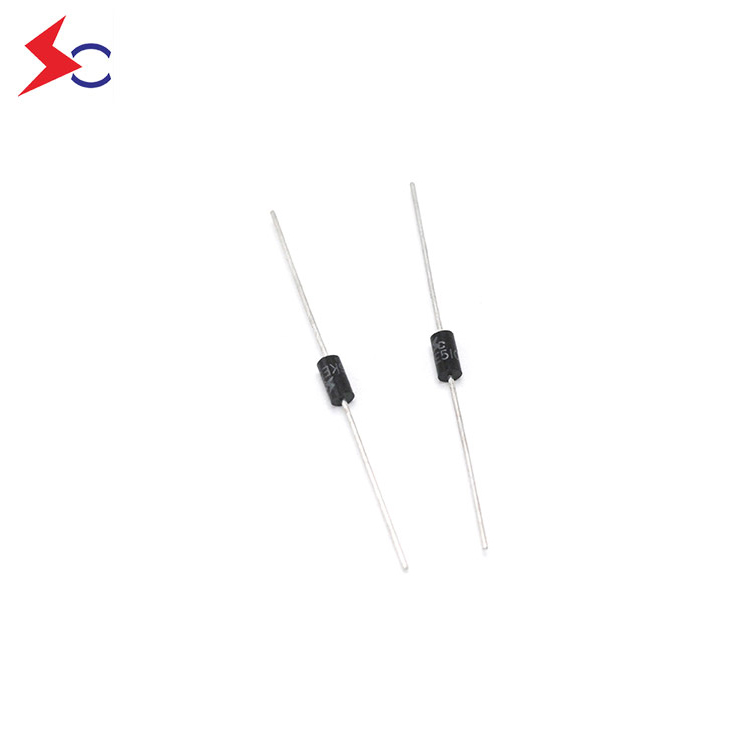

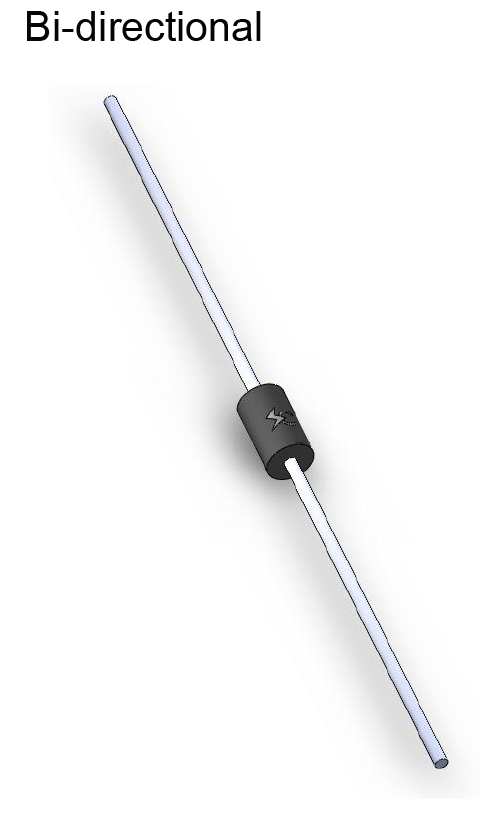

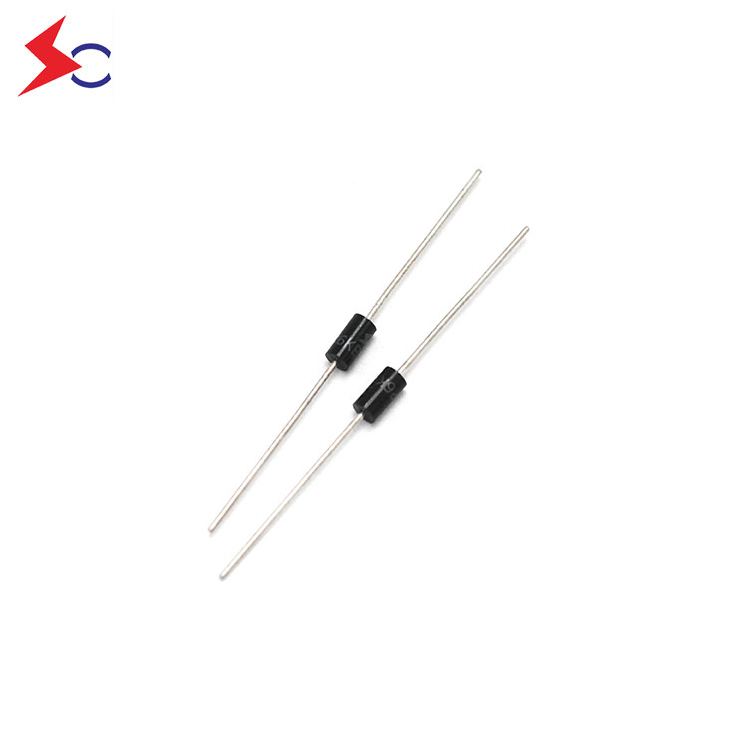

SOCAY Diodes Components 600W DO-15 Package TVS P6KE250CA P6KE Series Axial Lead Transient Voltage Suppressors
SKU: P6KE250CA
(0)
0 Sold
$0.66
$0.67
The Price Is For Reference Only. Please Consult Customer Service.
Reverse Stand-Off Voltage VRWM (V)：214.0
Breakdown Voltage VBR(V) @IT(Min)：237.5
Breakdown Voltage VBR(V) @IT(Max)：262.5
Test Current IT (mA)：1.0
Maximum Clamping Voltage VC@IPP (V) ：344.0
Maximum Peak Pulse Current IPP (A)：1.74
Maximum Reverse Leakage IR@VRWM (μA)：5.0
