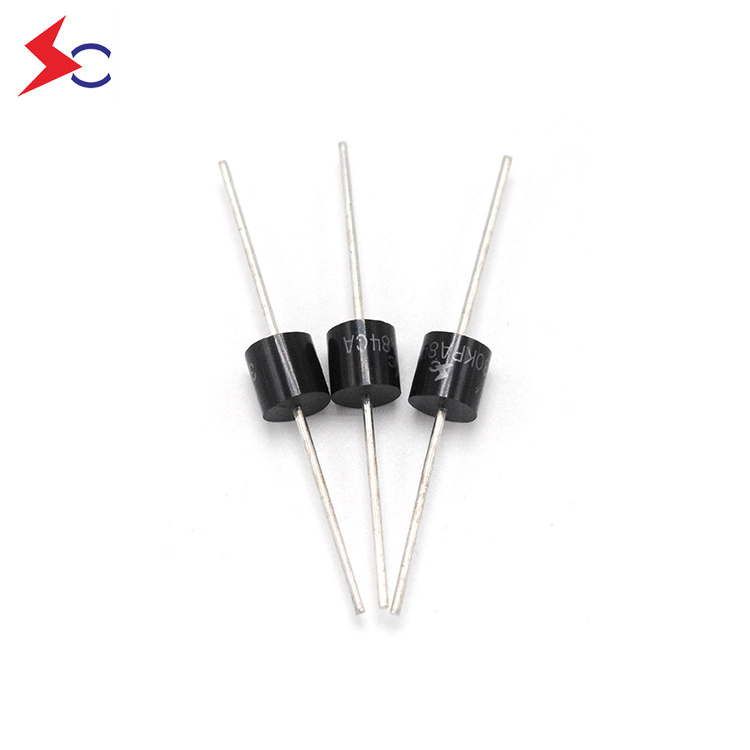

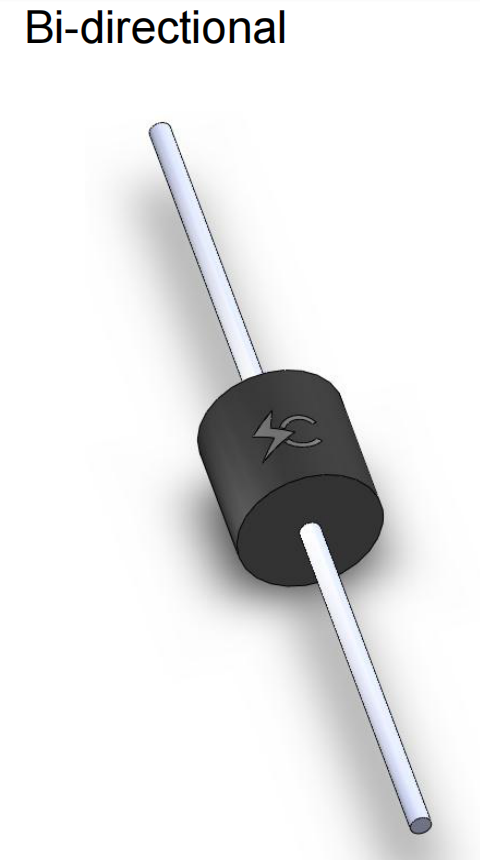

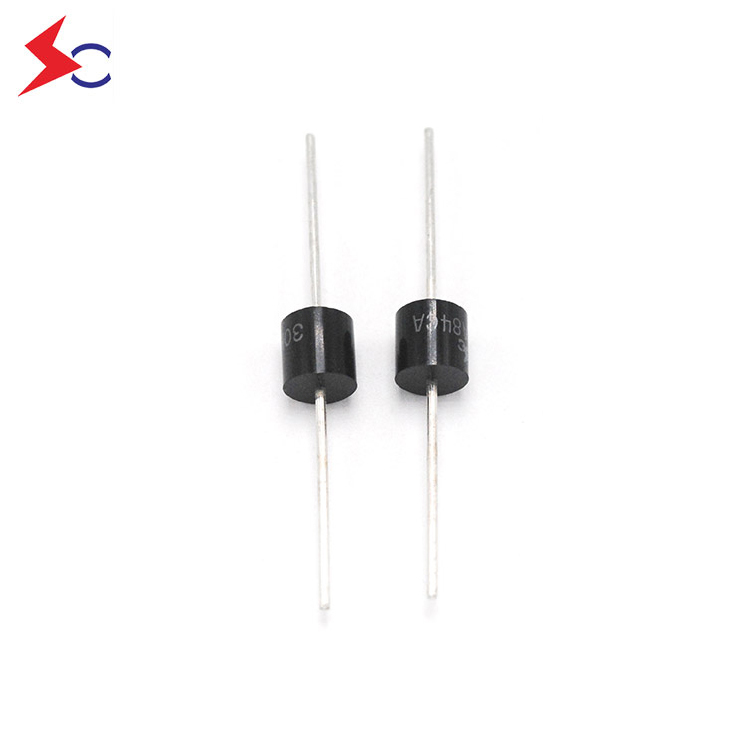

SOCAY Diodes Components P600 Package 30000W TVS 30KPA108CA 30KPA Series Axial Lead Transient Voltage Suppressors
SKU: 30KPA108CA
(0)
0 Sold
$2.66
$2.67
The Price Is For Reference Only. Please Consult Customer Service.
Reverse Stand-Off Voltage VRWM (V)：108.0
Breakdown Voltage VBR(V) @IT(Min)：120.6
Breakdown Voltage VBR(V) @IT(Max)：132.66
Test Current IT (mA)：5.0
Maximum Clamping Voltage VC@IPP (V) ：175.2
Maximum Peak Pulse Current IPP (A)：172.9
Maximum Reverse Leakage IR@VRWM (μA)：2.0
