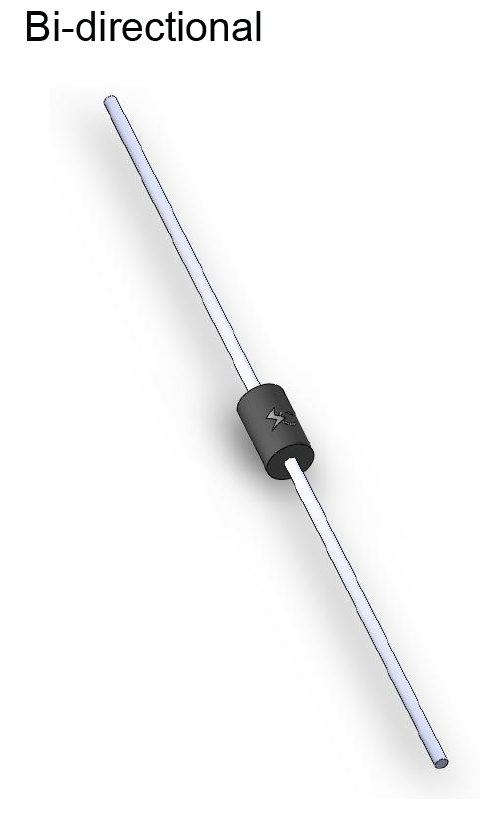

SOCAY Electronics Components P6KE Series TVS Diodes P6KE180CA 600W DO-15 Package Axial Lead Transient Voltage Suppressors
SKU: P6KE180CA
(0)
0 Sold
$0.66
$0.67
The Price Is For Reference Only. Please Consult Customer Service.
Reverse Stand-Off Voltage VRWM (V)：154.0
Breakdown Voltage VBR(V) @IT(Min)：171.0
Breakdown Voltage VBR(V) @IT(Max)：189.0
Test Current IT (mA)：1.0
Maximum Clamping Voltage VC@IPP (V) ：246.0
Maximum Peak Pulse Current IPP (A)：2.44
Maximum Reverse Leakage IR@VRWM (μA)：5.0
