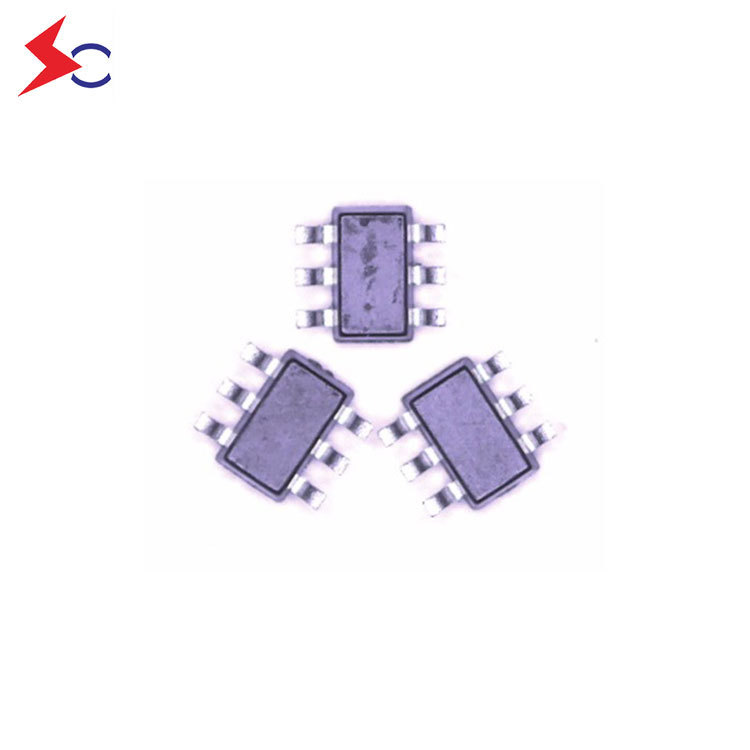

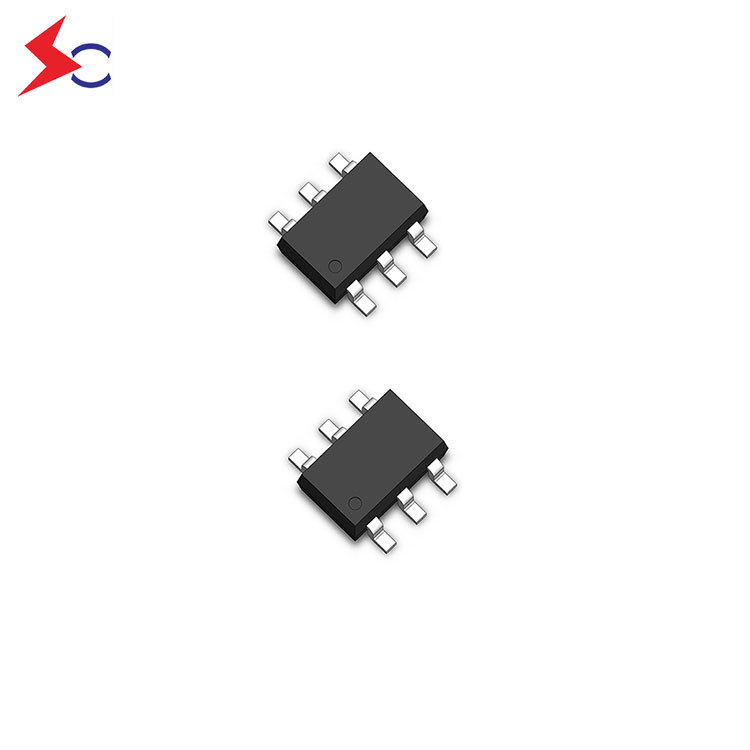

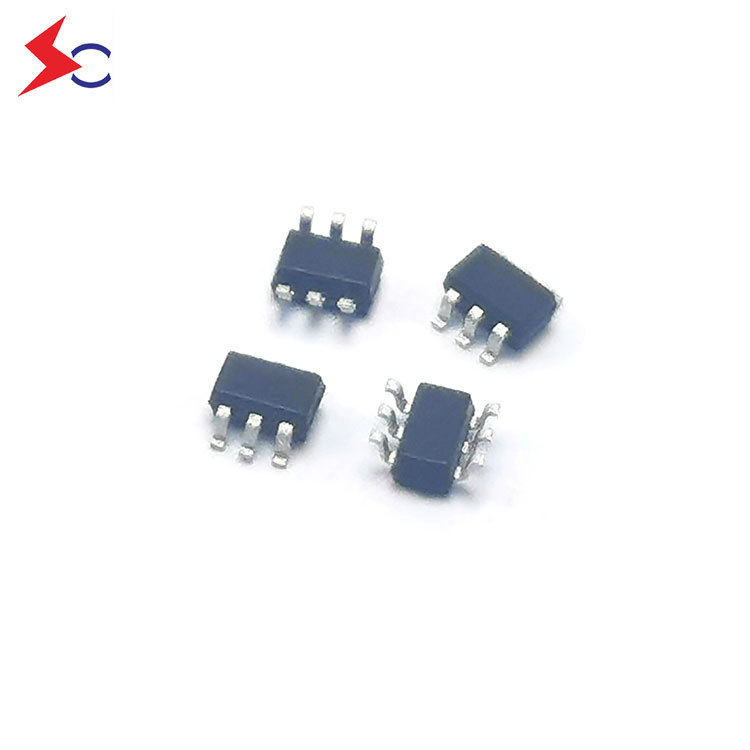

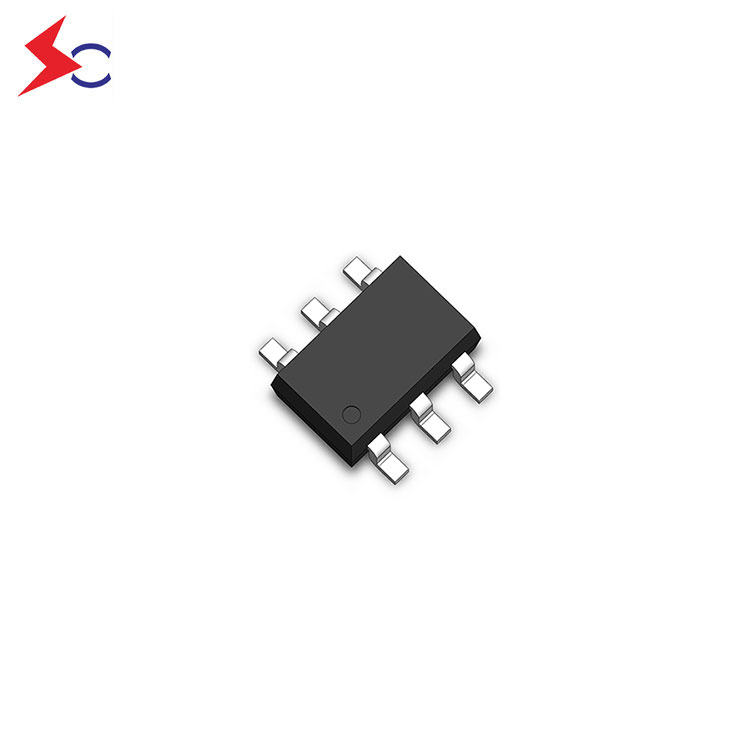

SOCAY ESD Diodes SOT-363 Package SE05T4D14GD Transient Voltage Suppressors for ESD Protection
SKU: SE05T4D14GD
(0)
0 Sold
$0.05
$0.06
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SE05T4D14GD
Peak Reverse Working Voltage @ pin 5 to pin 2,T=25℃ —Vrwm(V)：5.0
Breakdown Voltage @ IT—IT=1mA，pin 5 to pin 2 —VBR Min(V)：6.0
Reverse Leakage Current —IR Max(μA)：0.1
Forward Voltage @ IT—IT=10mA — VF(V)：0.8
Clamping Voltage @ Ipp—Ipp=3A , tp=8/20μs Vc Typ(V)：11.0
Junction Capacitance @ VR=0V,f=1MHz, I/O pin to GND—CJ Typ(pF)：0.6
Junction Capacitance @ VR=0V,f=1MHz, Between I/O pins—CJ Typ(pF)：0.3
Part Number：SE05T4D14GD
Peak Reverse Working Voltage @ pin 5 to pin 2,T=25℃ —Vrwm(V)：5.0
Breakdown Voltage @ IT—IT=1mA，pin 5 to pin 2 —VBR Min(V)：6.0
Reverse Leakage Current —IR Max(μA)：0.1
Forward Voltage @ IT—IT=10mA — VF(V)：0.8
Clamping Voltage @ Ipp—Ipp=3A , tp=8/20μs Vc Typ(V)：11.0
Junction Capacitance @ VR=0V,f=1MHz, I/O pin to GND—CJ Typ(pF)：0.6
Junction Capacitance @ VR=0V,f=1MHz, Between I/O pins—CJ Typ(pF)：0.3
