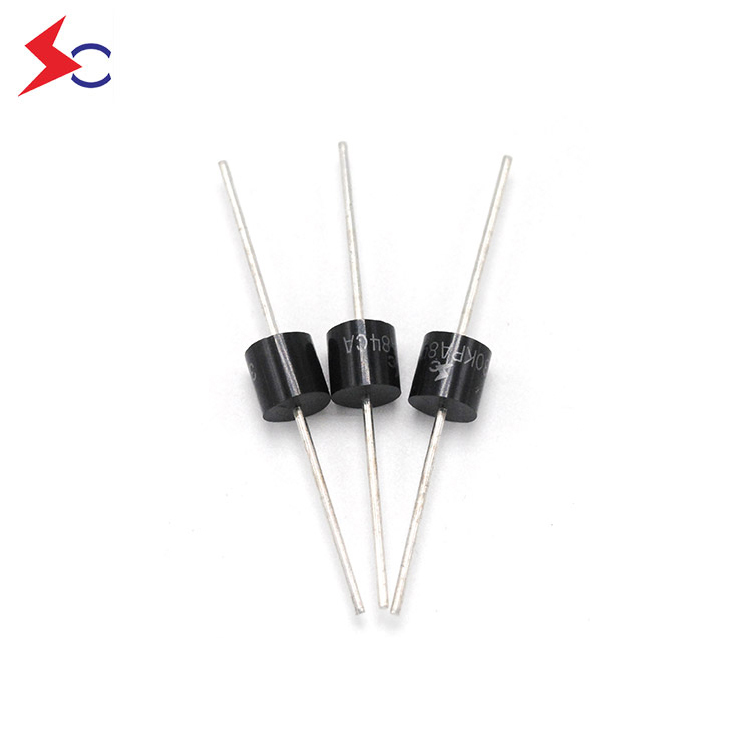

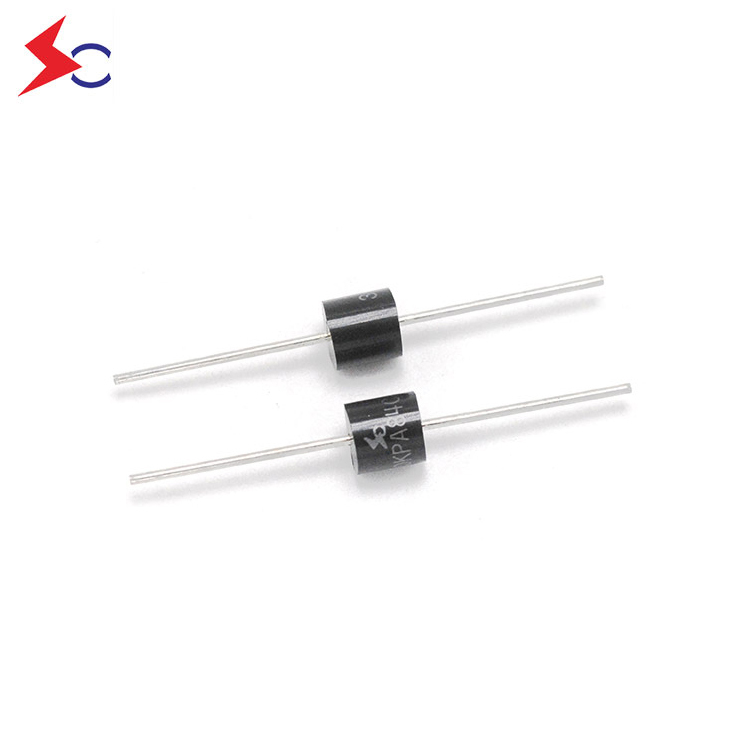

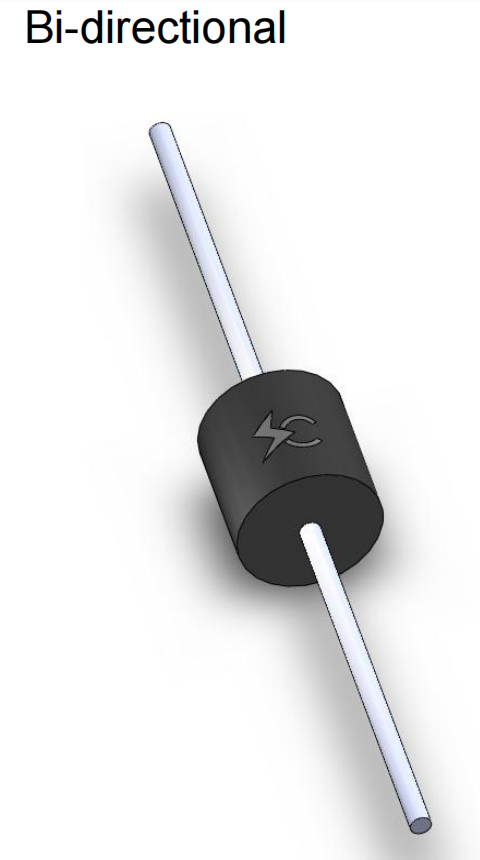

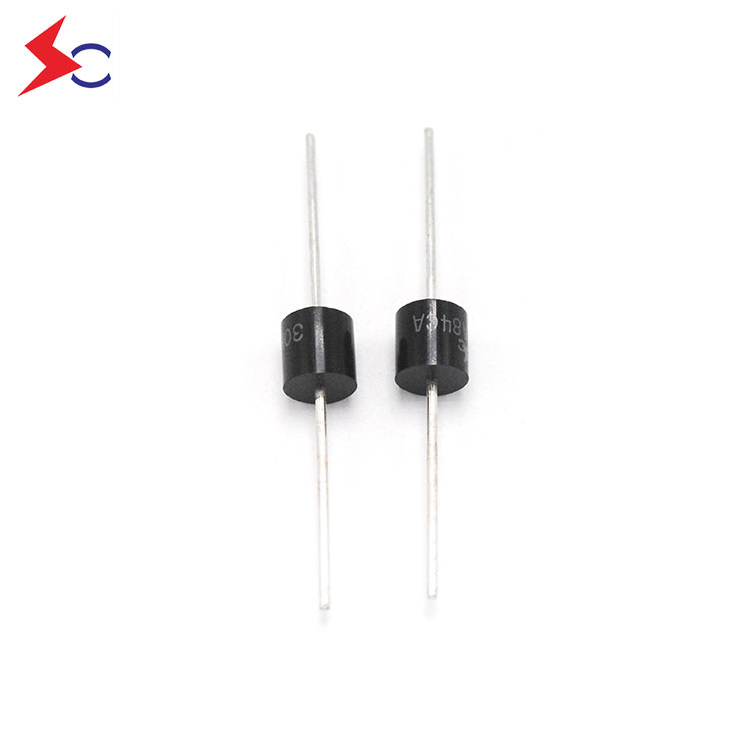

SOCAY Factory Direct Supply 30KPA Series 30000W TVS 30KPA132CA P600 Package Axial Lead Transient Voltage Suppressors Diodes
SKU: 30KPA132CA
(0)
0 Sold
$2.66
$2.67
The Price Is For Reference Only. Please Consult Customer Service.
Reverse Stand-Off Voltage VRWM (V)：132.0
Breakdown Voltage VBR(V) @IT(Min)：147.4
Breakdown Voltage VBR(V) @IT(Max)：162.14
Test Current IT (mA)：5.0
Maximum Clamping Voltage VC@IPP (V) ：213.0
Maximum Peak Pulse Current IPP (A)：142.3
Maximum Reverse Leakage IR@VRWM (μA)：2.0
