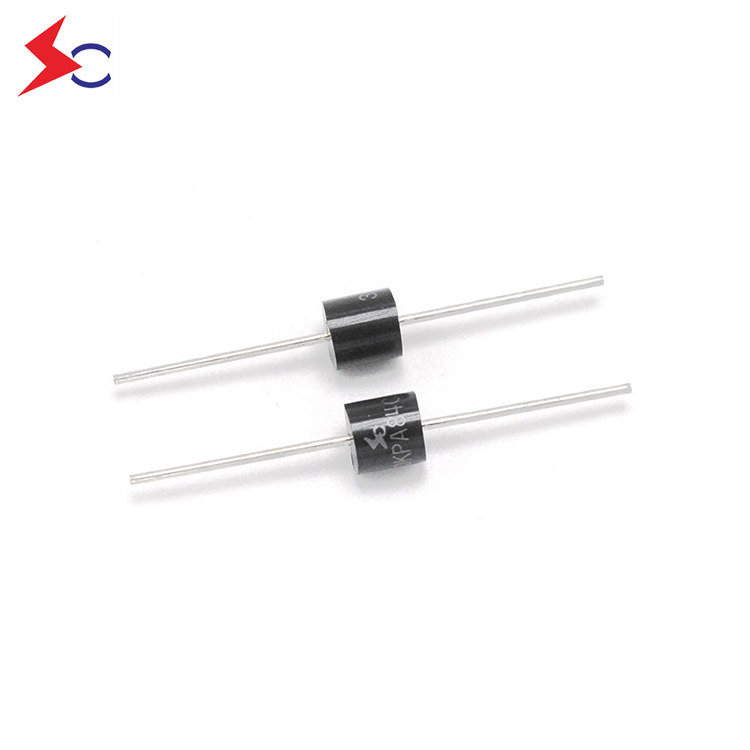

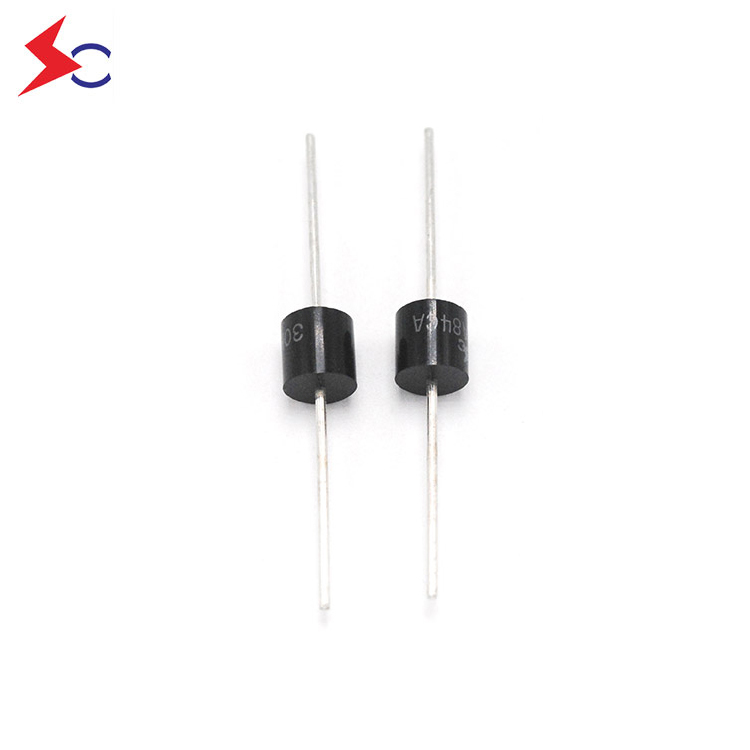

SOCAY High Quality 30KPA Series R6 Package TVS 30KPA160A 30000W Axial Lead Transient Voltage Suppressors Diodes
SKU: 30KPA160A
(0)
0 Sold
$2.66
$2.67
The Price Is For Reference Only. Please Consult Customer Service.
Reverse Stand-Off Voltage VRWM (V)：160.0
Breakdown Voltage VBR(V) @IT(Min)：178.7
Breakdown Voltage VBR(V) @IT(Max)：196.57
Test Current IT (mA)：5.0
Maximum Clamping Voltage VC@IPP (V) ：252.6
Maximum Peak Pulse Current IPP (A)：120.0
Maximum Reverse Leakage IR@VRWM (μA)：2.0
