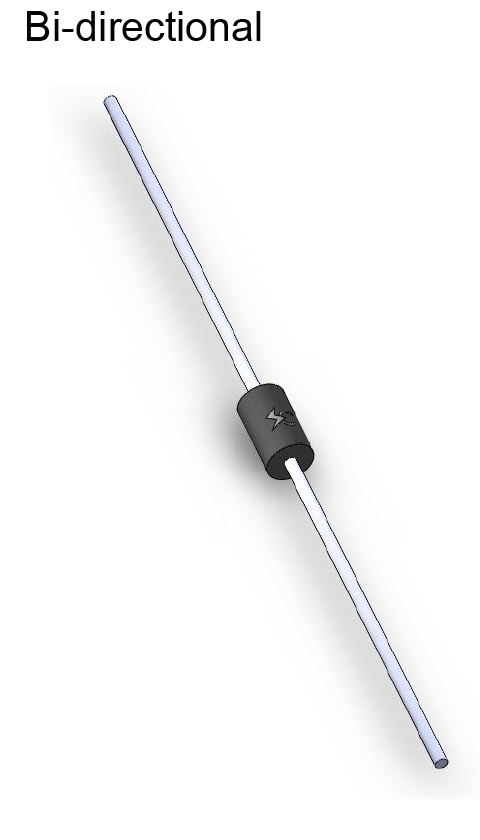

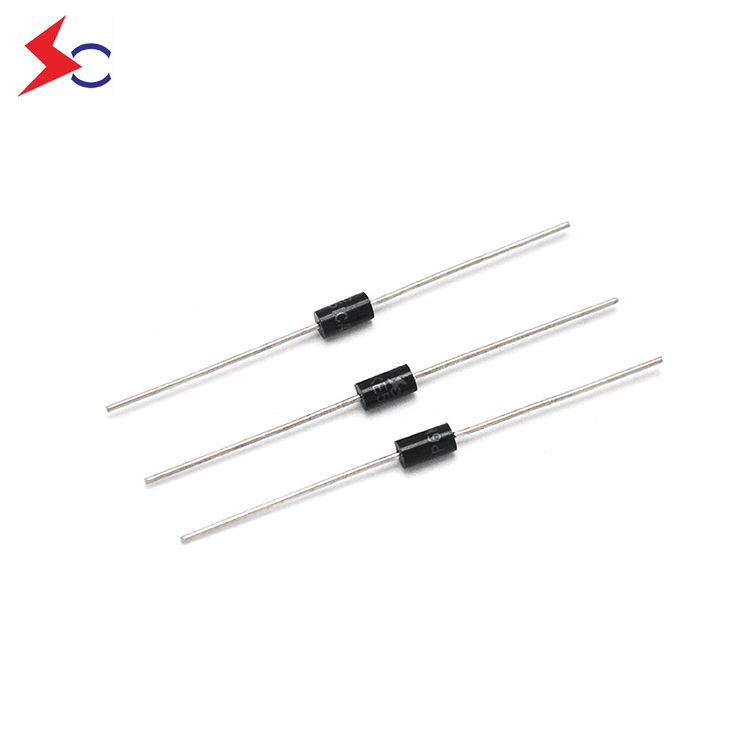

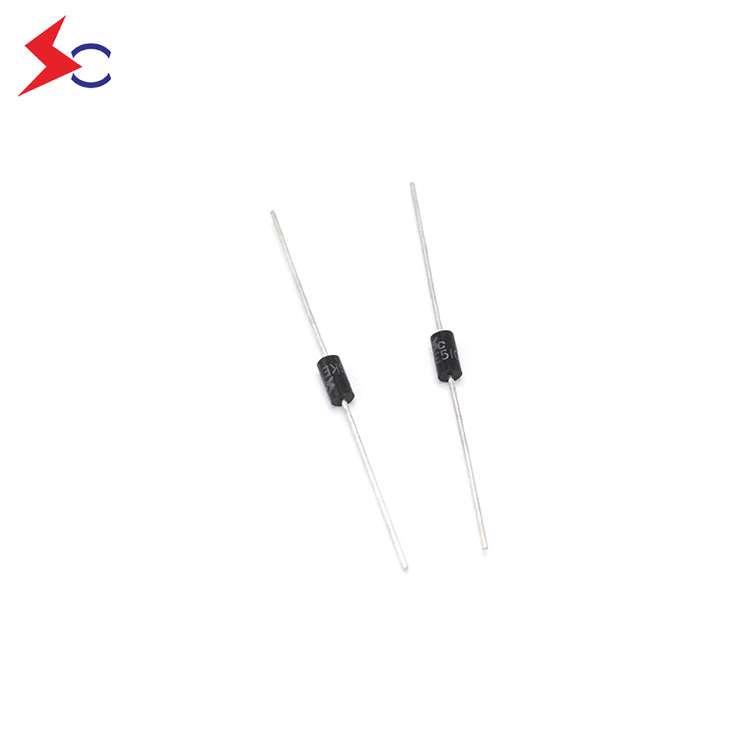

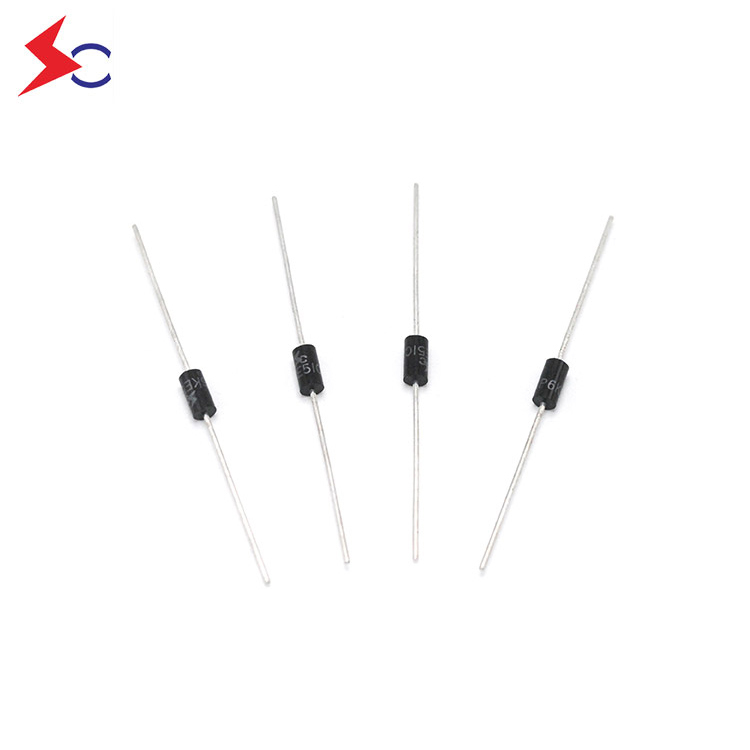

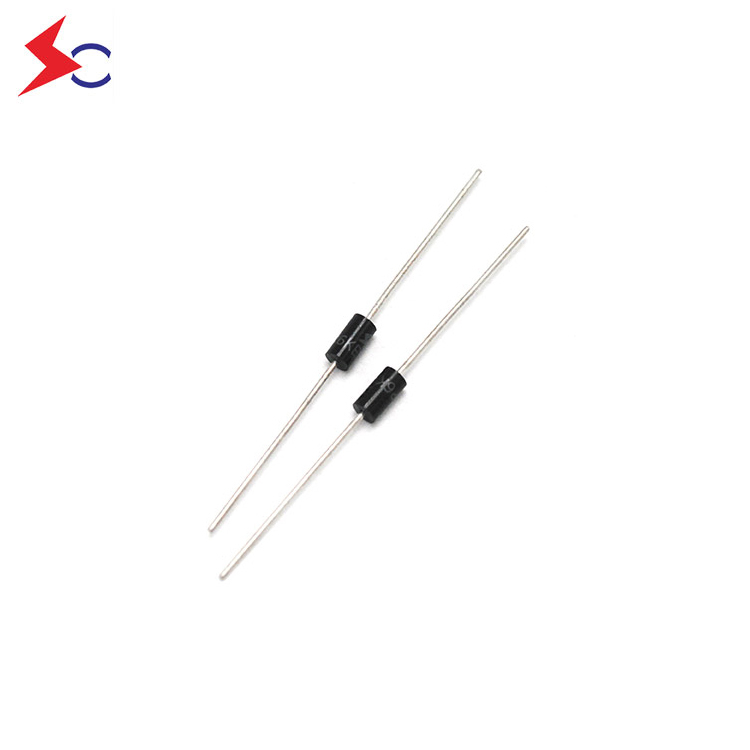

SOCAY Low leakage DO-15 Package TVS P6KE120CA 600W Axial Lead Transient Voltage Suppressors Diodes
SKU: P6KE120CA
(0)
0 Sold
$0.66
$0.67
The Price Is For Reference Only. Please Consult Customer Service.
Reverse Stand-Off Voltage VRWM (V)：102.0
Breakdown Voltage VBR(V) @IT(Min)：114.0
Breakdown Voltage VBR(V) @IT(Max)：126.0
Test Current IT (mA)：1.0
Maximum Clamping Voltage VC@IPP (V) ：165.0
Maximum Peak Pulse Current IPP (A)：3.64
Maximum Reverse Leakage IR@VRWM (μA)：5.0
