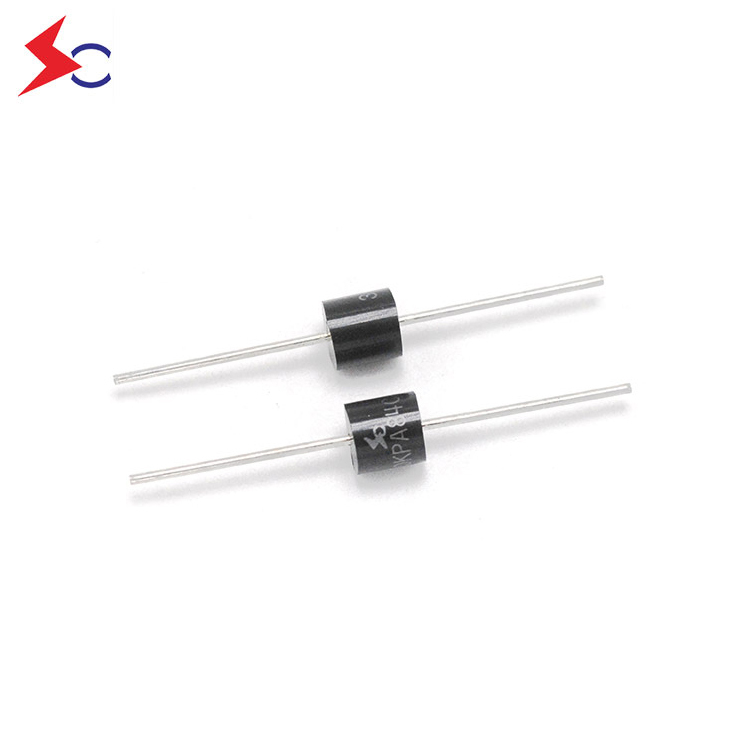

SOCAY Manufacturer 30KPA Series P600 Package TVS 30KPA78CA 30000W Axial Lead Transient Voltage Suppressors Diodes

Name: SOCAY Manufacturer 30KPA Series P600 Package TVS 30KPA78CA 30000W Axial Lead Transient Voltage Suppressors Diodes
Brand: DIANDAODIAN
SKU: 30KPA78CA
Price: 2.66 USD
Availability: InStock

SKU: 30KPA78CA

0.0 (0)

0 Sold

$2.66 ~~$2.67~~

The Price Is For Reference Only. Please Consult Customer Service.

Part Number：30KPA78CA
Reverse Stand-Off Voltage VRWM (V)：78.0
Breakdown Voltage VBR(V) @IT(Min)：87.1
Test Current IT (mA)：5.0
Maximum Clamping Voltage VC@IPP (V) ：129.0
Maximum Peak Pulse Current IPP (A)：234.9
Maximum Reverse Leakage IR@VRWM (μA)：2.0

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Part Number:
30KPA78CA

Description：
The 30KPA series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features：
Glass passivated chip junction in P600 Package.
Low leakage.

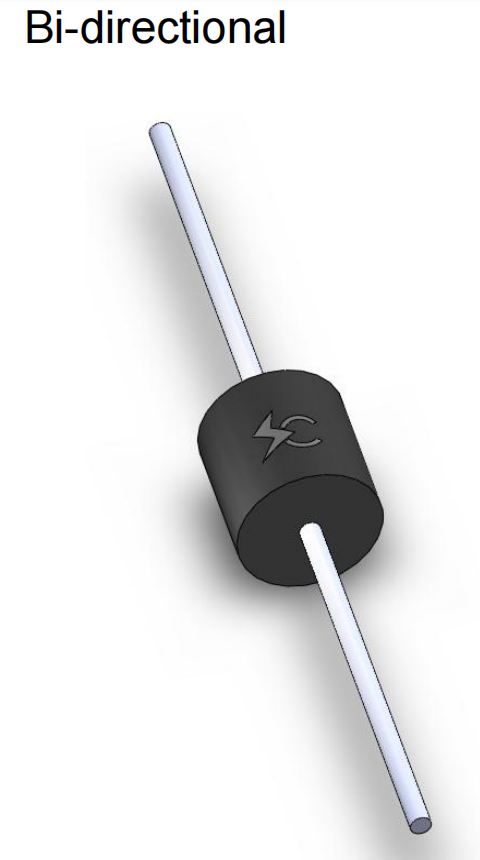

Uni and Bidirectional unit.
Excellent clamping capability.
30000W Peak power capability at 10 × 1000μs waveform Repetition rate (duty cycle): 0.01%.
Fast response time: typically less than 1.0ps from 0 Volts to VBR min.
Typical IR less than 2μA above 73V.
High Temperature soldering: 260°C/40 seconds at terminals.
Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C× ΔT.
Plastic package has Underwriters Laboratory Flammability 94V-0.
Matte tin lead–free Plated.
Halogen free and RoHS compliant.
Typical failure mode is short from over-specified voltage or current.
Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c.
IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact).
ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2).
EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4).

Application:
TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
