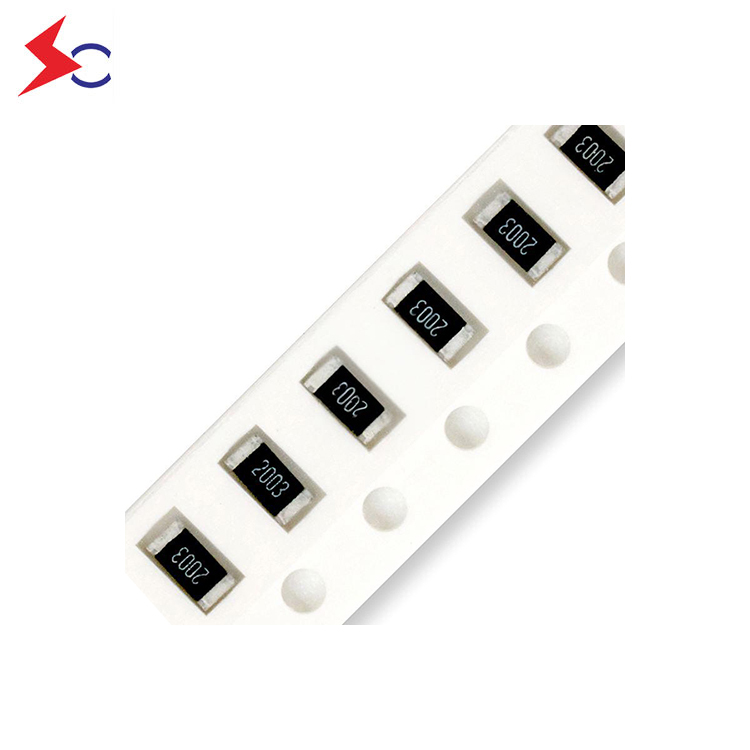

SOCAY Original Factory 0805 Package RED Series Chip Resistors REDE080510KJDD Surface Mount SMD LED Chip Resistor

Name: SOCAY Original Factory 0805 Package RED Series Chip Resistors REDE080510KJDD Surface Mount SMD LED Chip Resistor
Brand: DIANDAODIAN
SKU: REDE080510KJDD
Price: 0.29 USD
Availability: InStock

SKU: REDE080510KJDD

0.0 (0)

0 Sold

$0.29 ~~$0.30~~

The Price Is For Reference Only. Please Consult Customer Service.

Part Number：REDE080510KJDD

Power Rating：1/8W

Operating Temp. Range：-55℃ ~ +155℃

Max Operating Voltage：150V

Max Overload Voltage：300V

Resistance Range：±5%

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Part Number:
REDE080510KJDD

Description：

The 0805(2012) LED Chip Resistor has Excellent Solderability and terminal bending capacity, especially suitable for LED and the field of flexible circuit board.

Construction:

① Alumina Substrate

② Resistor Layer

③ Protective Coating

④ Inner Electrode

⑤ Middle Electrode

⑥ Outer Electrode

Product Details:

Part Number: REDE080510KJDD

Marking Code: 0

Power Rating: 1/8W

Operating Temp. Range: -55℃ ~ +155℃

Max. Operating Voltage: 150V

Max. Overload Voltage: 300V

Resistance Range: ±5%

Dimension: L: 2.00±0.10mm; W: 1.25±0.10mm; H: 0.50±0.10mm

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: REACH,ROHS

Payment & Shipping Terms:

Minimum Order Quantity: 20,000PCS

Price: Negotiable

Packaging Details: Reel
