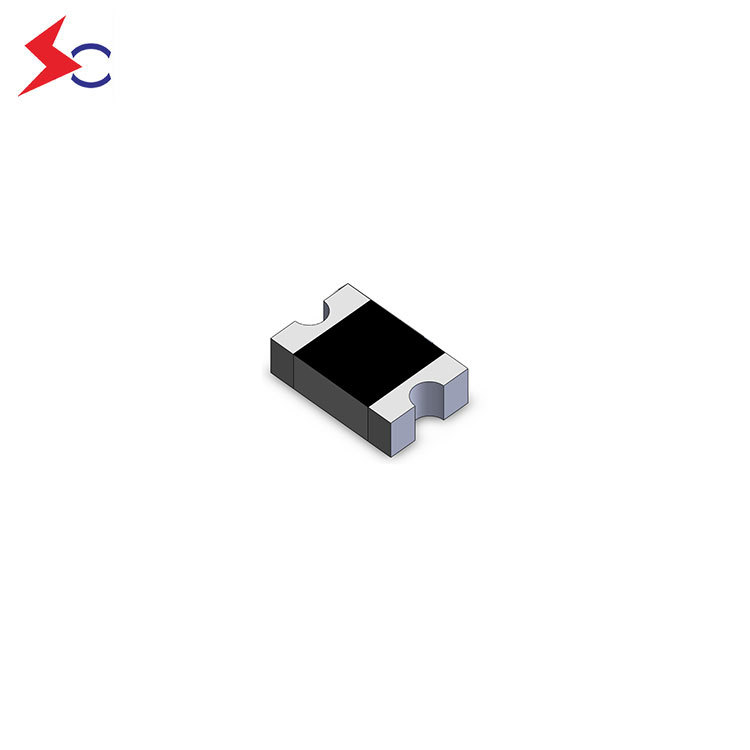

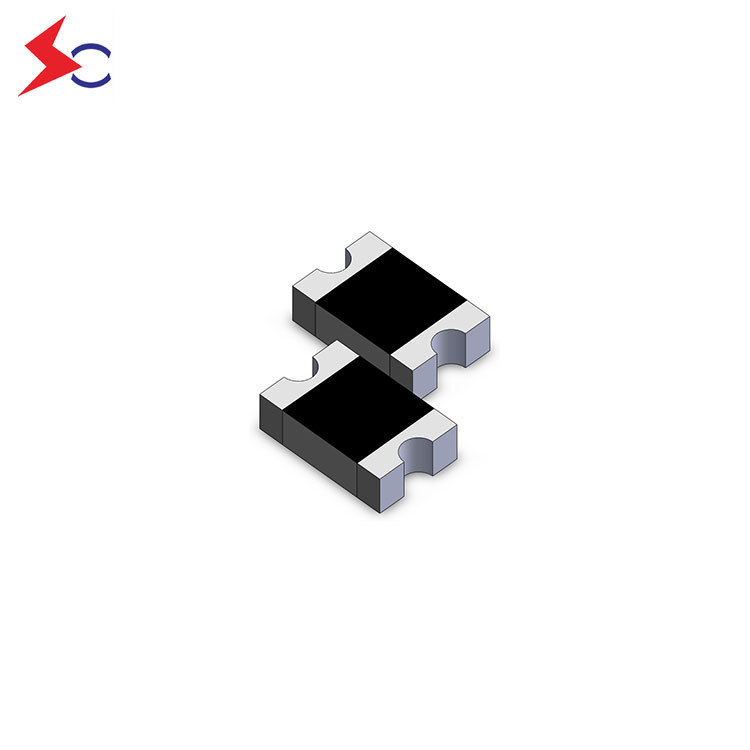

SOCAY Original Factory Vdc6.0V With I hold 0.75A PPTC SCF075-0805RZB Surface Mount Resettable Polymer PTCs
SKU: SCF075-0805RZB
(0)
0 Sold
$0.06
$0.07
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SCF075-0805RZB
Hold Current—I hold(A)：0.75
Trip Current—I trip(A)：1.5
Rated Voltage—V max(Vdc)：6.0
Max Current—I max(A)：50.0
Typical Power—P dtyp.(W)：0.7
Maximum TimeTo Trip—Current(A) ：8.0
Maximum TimeTo Trip—Time(Sec.)：1.0
Resistance—R min(Ω)：0.06
Resistance—R 1max(Ω)：0.3
Part Number：SCF075-0805RZB
Hold Current—I hold(A)：0.75
Trip Current—I trip(A)：1.5
Rated Voltage—V max(Vdc)：6.0
Max Current—I max(A)：50.0
Typical Power—P dtyp.(W)：0.7
Maximum TimeTo Trip—Current(A) ：8.0
Maximum TimeTo Trip—Time(Sec.)：1.0
Resistance—R min(Ω)：0.06
Resistance—R 1max(Ω)：0.3
