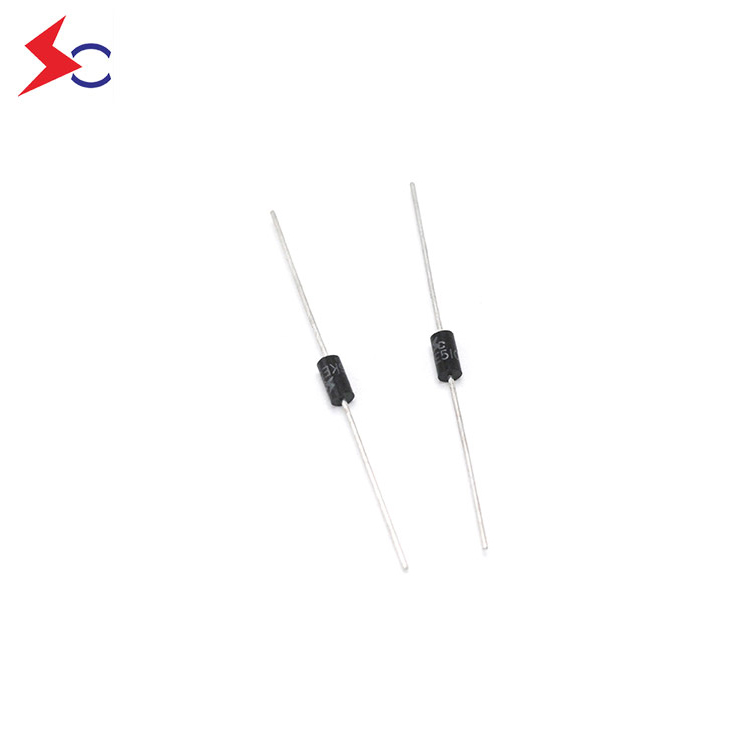

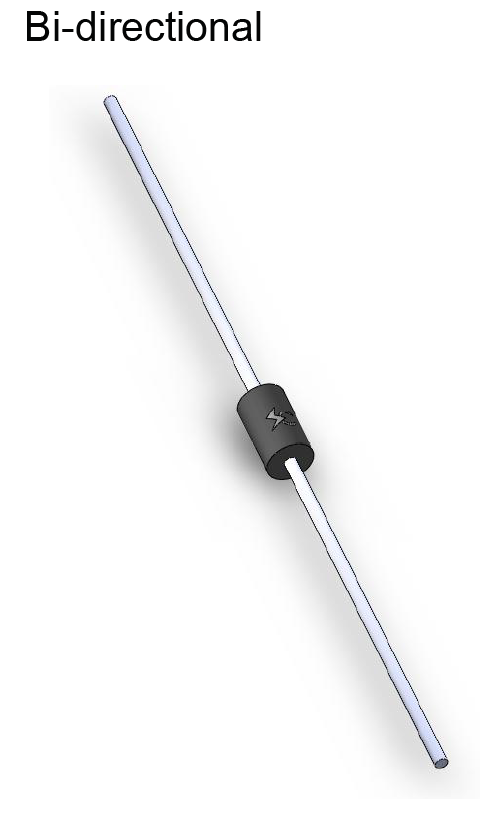

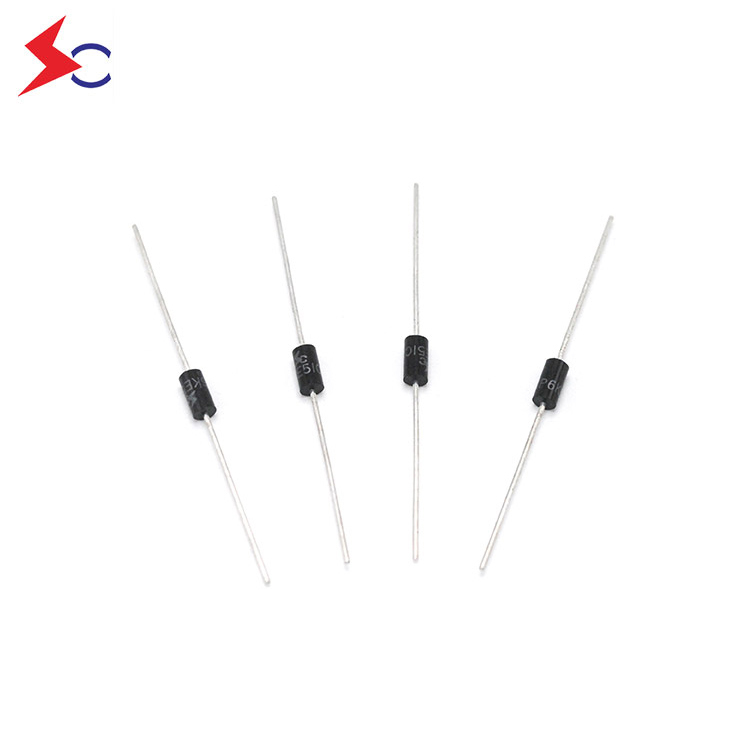

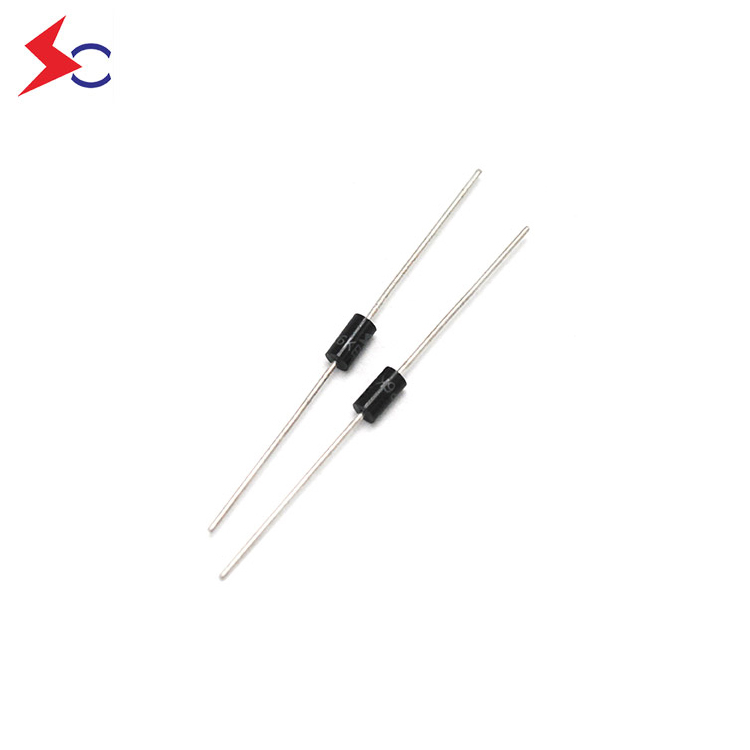

SOCAY P6KE Series DO-204AC Package TVS P6KE170CA 600W 145.0V Axial Lead Transient Voltage Suppressors Diodes
SKU: P6KE170CA
(0)
0 Sold
$0.66
$0.67
The Price Is For Reference Only. Please Consult Customer Service.
Reverse Stand-Off Voltage VRWM (V)：145.0
Breakdown Voltage VBR(V) @IT(Min)：161.5
Breakdown Voltage VBR(V) @IT(Max)：178.5
Test Current IT (mA)：1.0
Maximum Clamping Voltage VC@IPP (V) ：234.0
Maximum Peak Pulse Current IPP (A)：2.56
Maximum Reverse Leakage IR@VRWM (μA)：5.0
