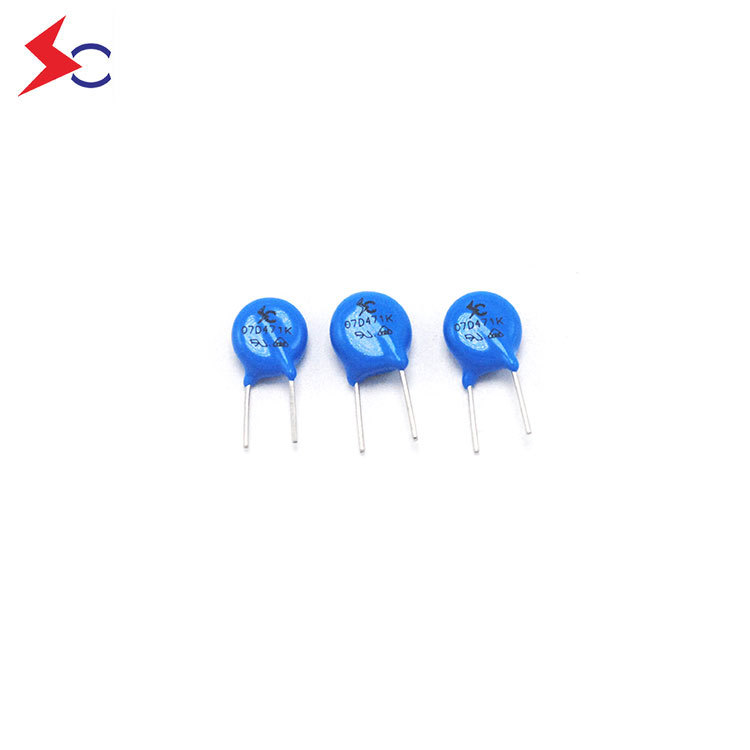

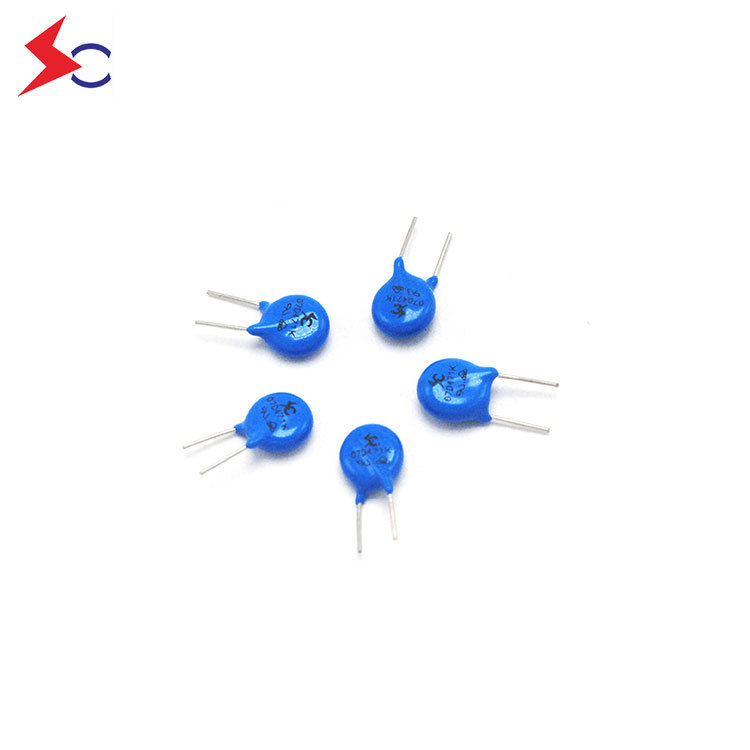

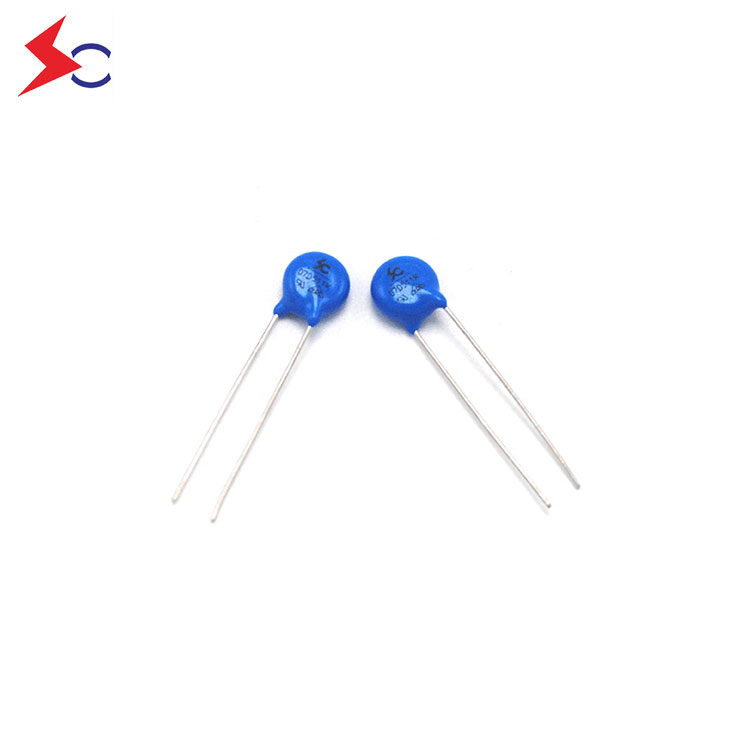

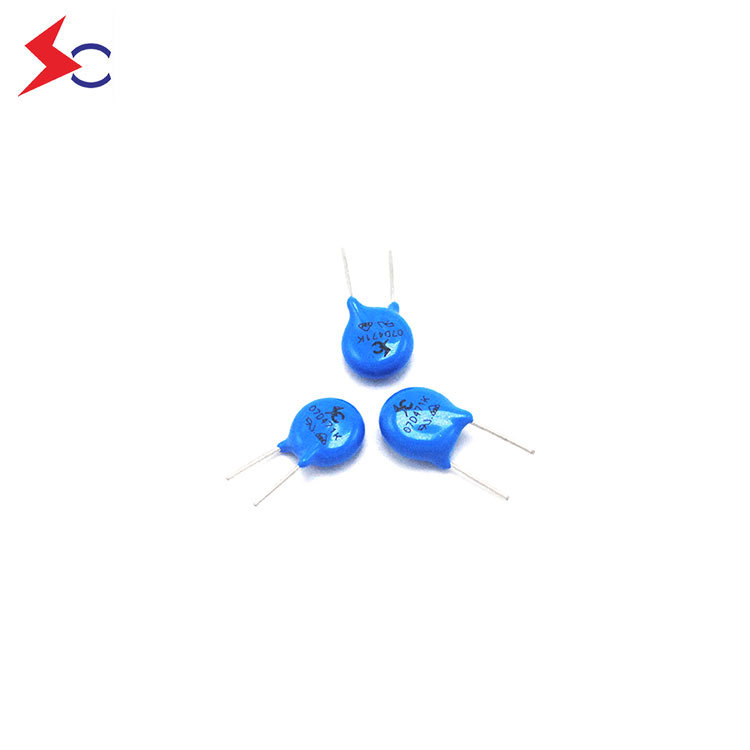

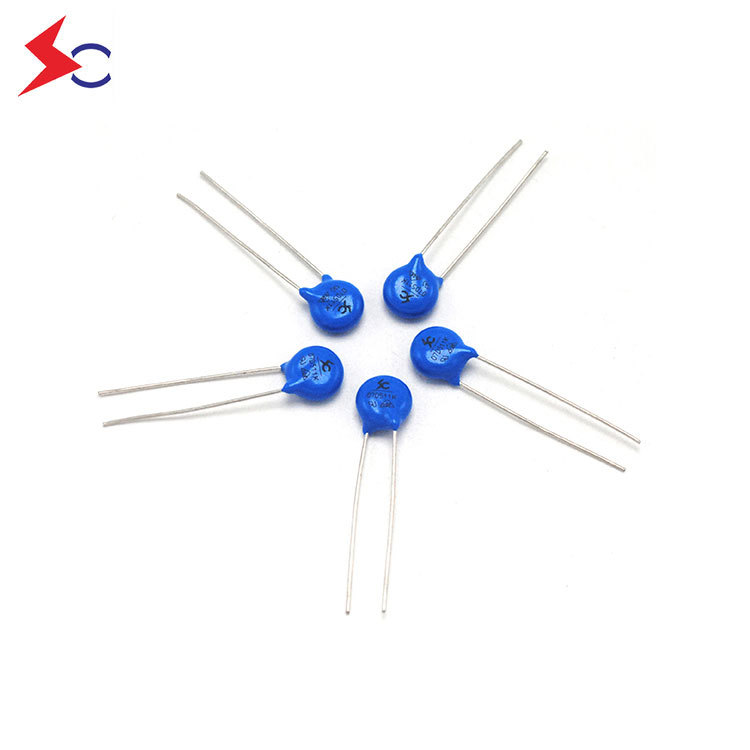

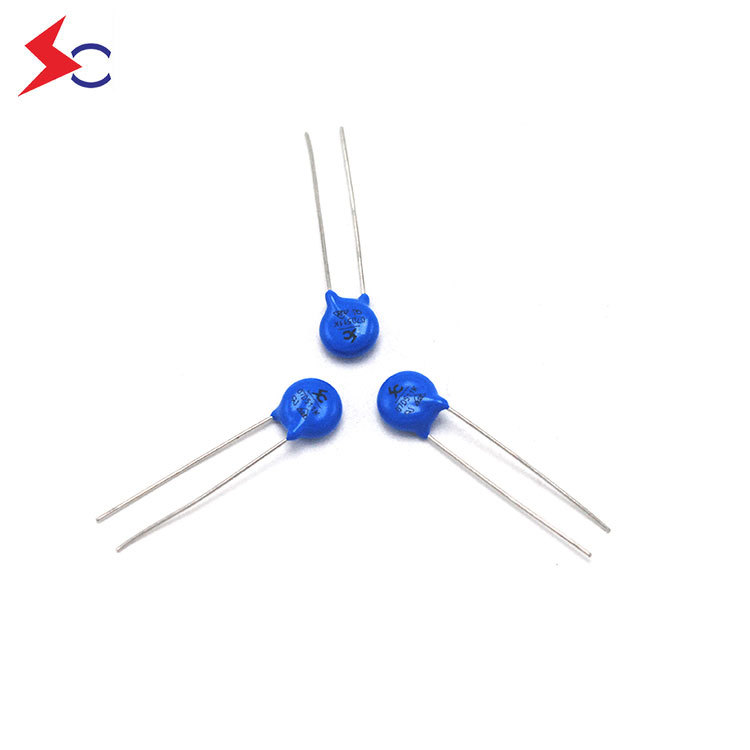

SOCAY 07D Series MOV 07D391KJ Varistor Voltage V1mA 351V to 429V Axial Lead Varistors
(0)
0 Sold
$0.04
$0.14
The Price Is For Reference Only. Please Consult Customer Service.
Type Number: 07D391KJ
Maximum Allowable voltage Vac(V)：250
Varistor Voltage Vdc(V)：320
Varistor Voltage V1mA(V)：390(351~429)
Maximum Clamping Voltage Ip(A): 10
Maximum Clamping Voltage Vc(V): 650
Withstanding Surge Current I(A) (1 time): 1750
Withstanding Surge Current I(A) (2 times): 1250
Maximum Energy(10/1000μs) (J): 25
Rated Power(W): 0.25
Typical Capacitance (Reference) @1KHZ (pf): 130
Type Number: 07D391KJ
Maximum Allowable voltage Vac(V)：250
Varistor Voltage Vdc(V)：320
Varistor Voltage V1mA(V)：390(351~429)
Maximum Clamping Voltage Ip(A): 10
Maximum Clamping Voltage Vc(V): 650
Withstanding Surge Current I(A) (1 time): 1750
Withstanding Surge Current I(A) (2 times): 1250
Maximum Energy(10/1000μs) (J): 25
Rated Power(W): 0.25
Typical Capacitance (Reference) @1KHZ (pf): 130
