Home > Metal Oxide Varistor > 07D Series > SOCAY Surge Current Capability Radial Lead Metal Oxide Varistor 07D Series MOV 07D821K Varistor Voltage V1mA 738V to 902V
1/1
Share:

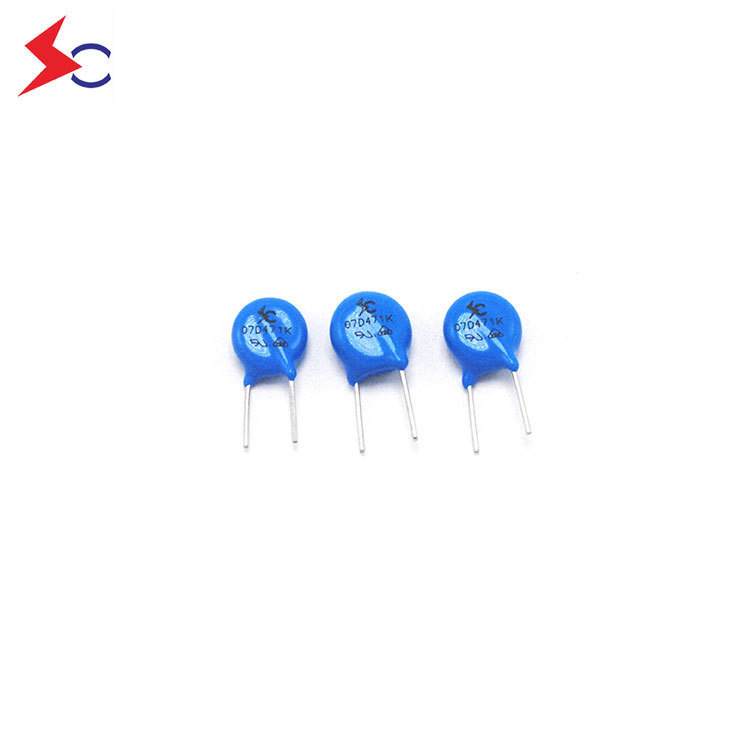

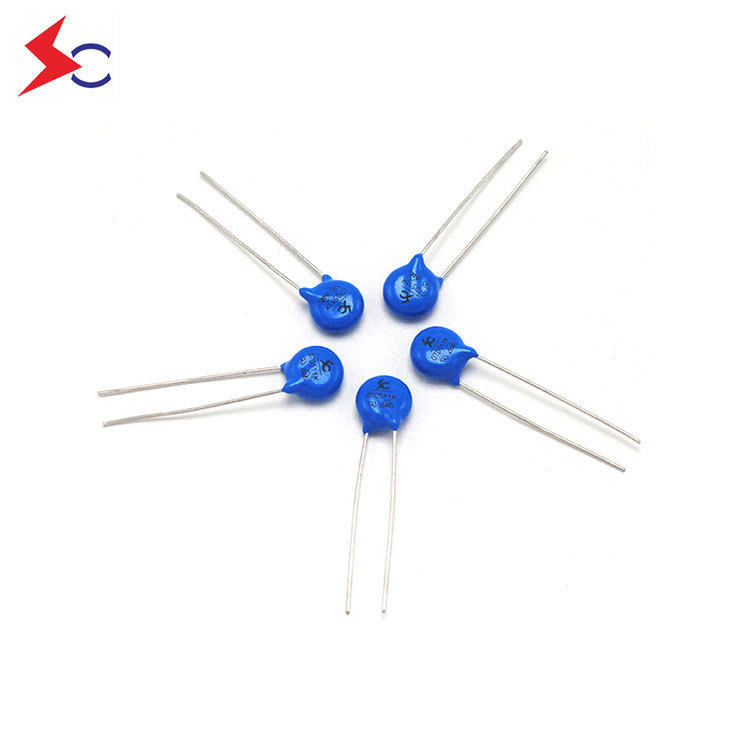

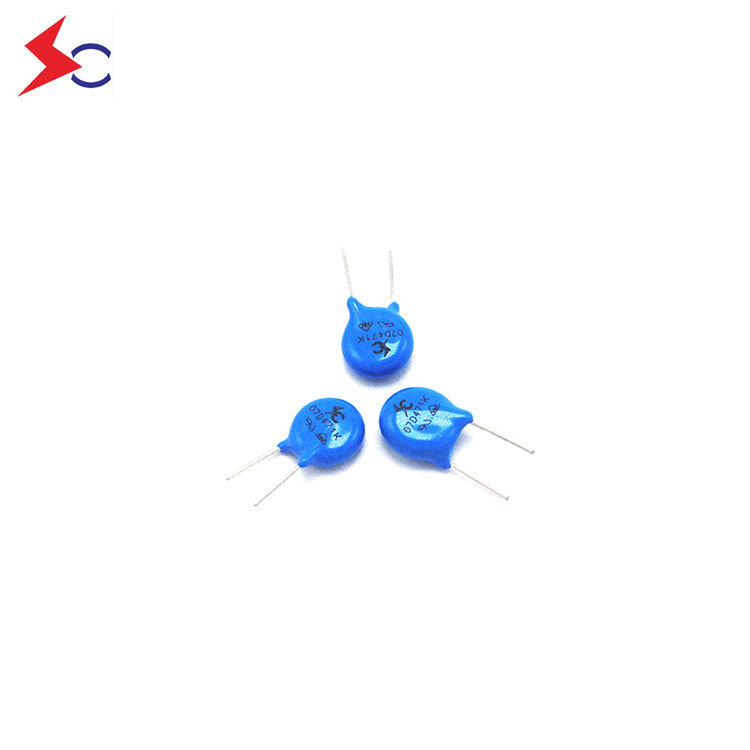

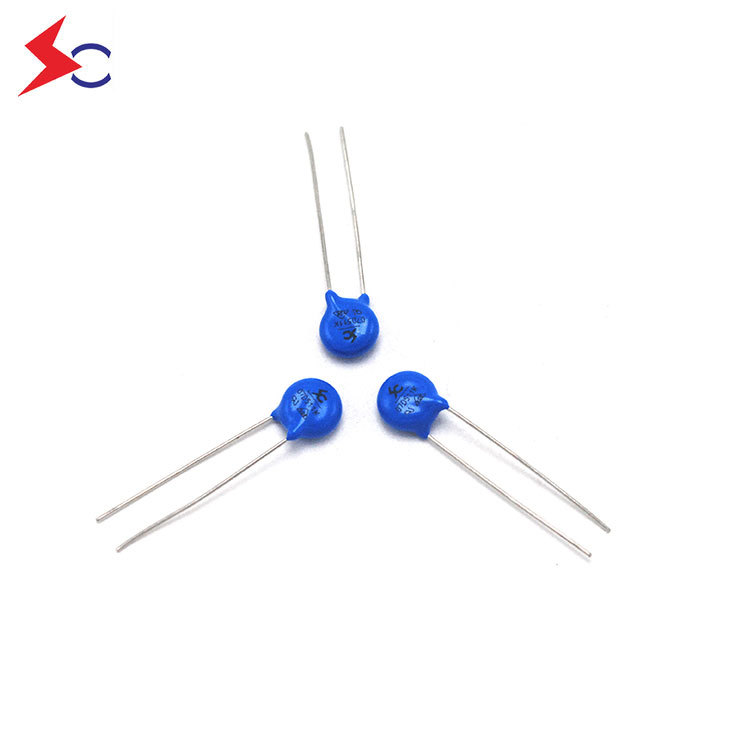

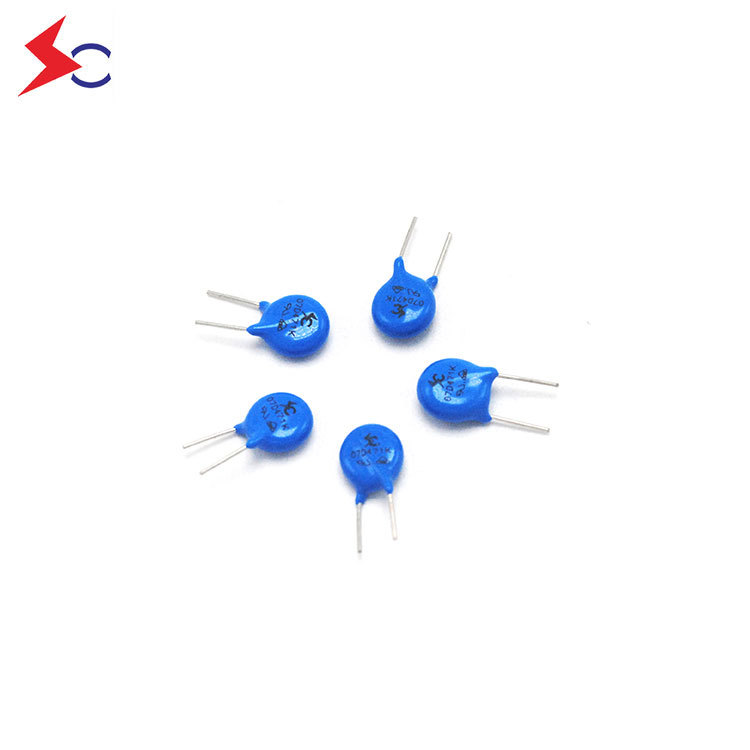

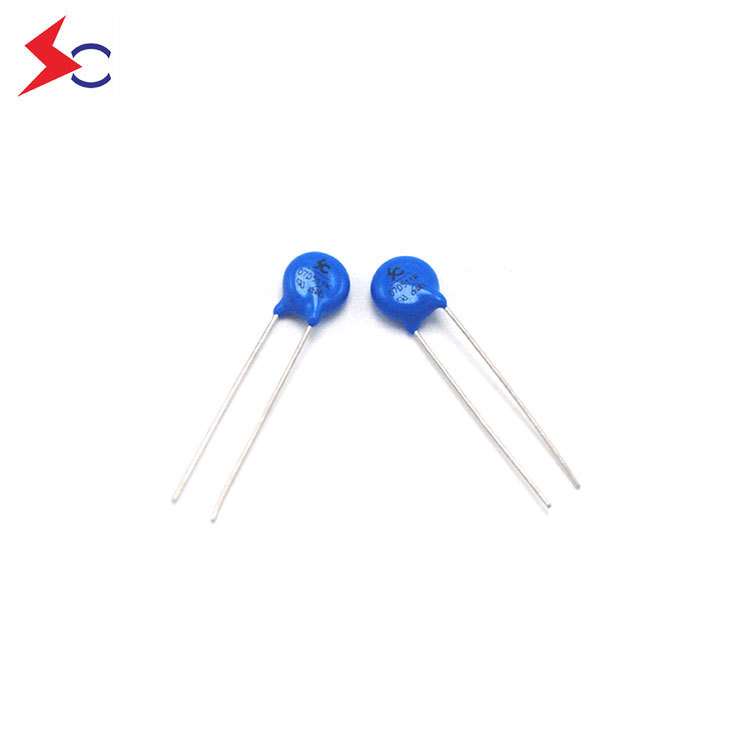

SOCAY Surge Current Capability Radial Lead Metal Oxide Varistor 07D Series MOV 07D821K Varistor Voltage V1mA 738V to 902V
(0)
0 Sold
$0.05
$0.15
The Price Is For Reference Only. Please Consult Customer Service.
Type Number: 07D821K
Maximum Allowable voltage Vac(V)：510
Varistor Voltage Vdc(V)：670
Varistor Voltage V1mA(V)：820(738~902)
Maximum Clamping Voltage Ip(A): 10
Maximum Clamping Voltage Vc(V): 1355
Withstanding Surge Current I(A) (1 time): 1200
Withstanding Surge Current I(A) (2 times): 600
Maximum Energy(10/1000μs) (J): 67.2
Rated Power(W): 0.25
Typical Capacitance (Reference) @1KHZ (pf): 60
Type Number: 07D821K
Maximum Allowable voltage Vac(V)：510
Varistor Voltage Vdc(V)：670
Varistor Voltage V1mA(V)：820(738~902)
Maximum Clamping Voltage Ip(A): 10
Maximum Clamping Voltage Vc(V): 1355
Withstanding Surge Current I(A) (1 time): 1200
Withstanding Surge Current I(A) (2 times): 600
Maximum Energy(10/1000μs) (J): 67.2
Rated Power(W): 0.25
Typical Capacitance (Reference) @1KHZ (pf): 60
