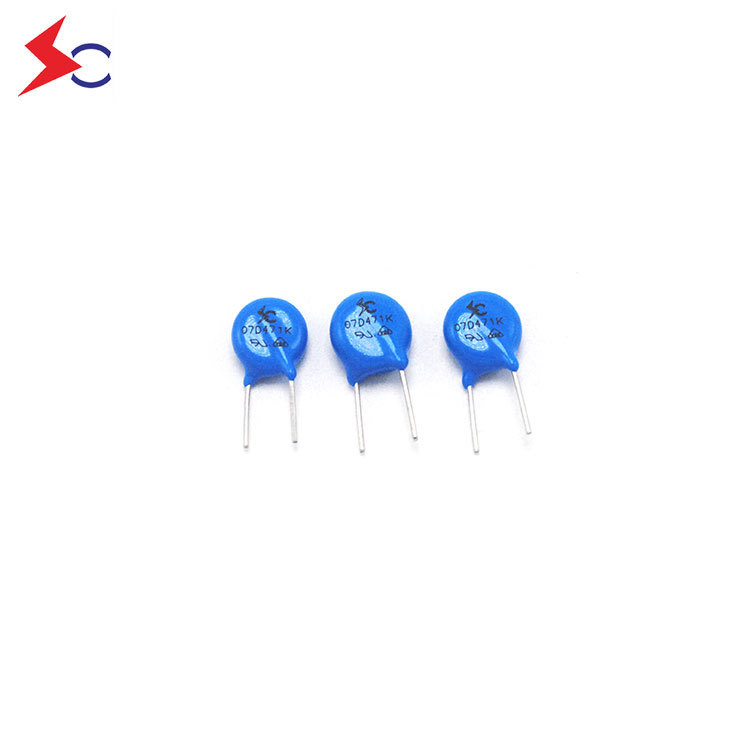

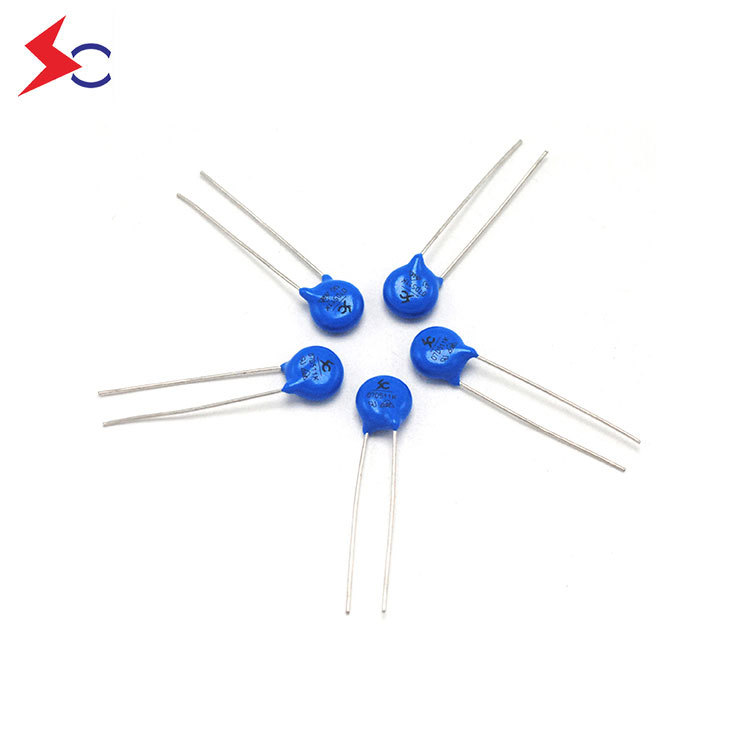

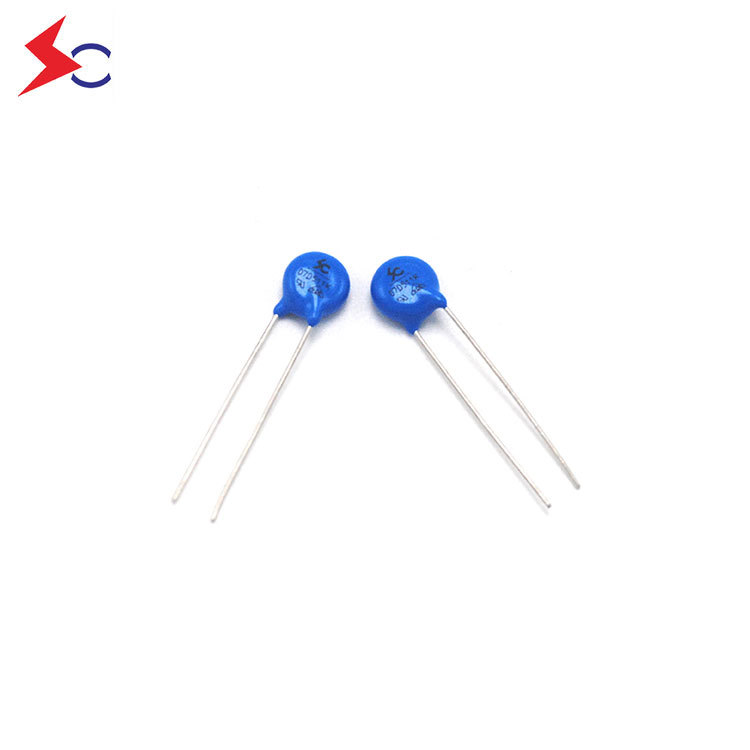

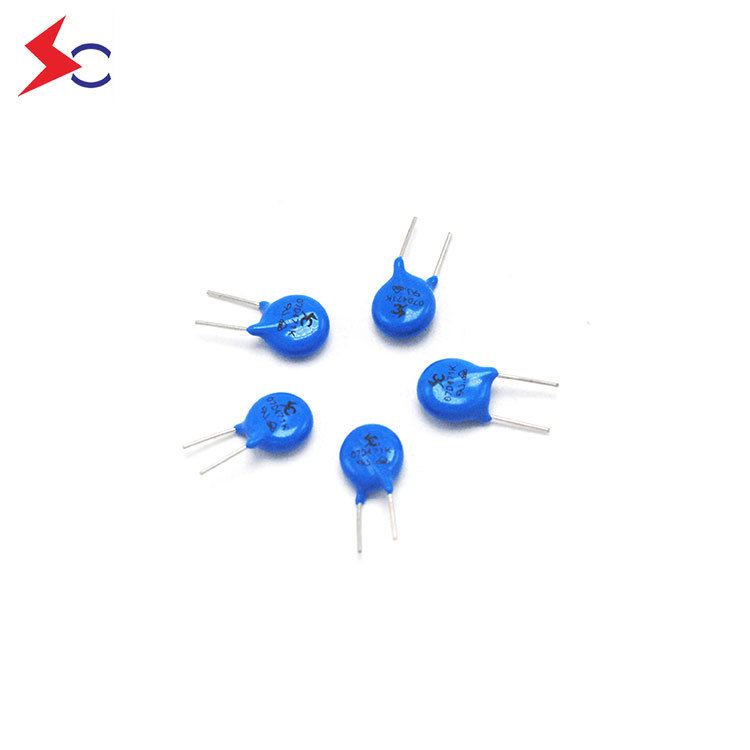

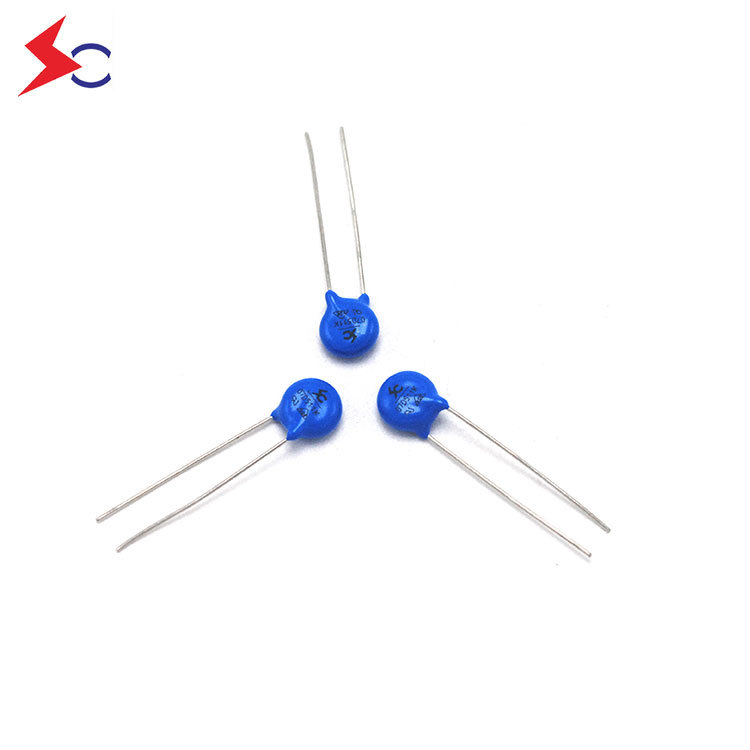

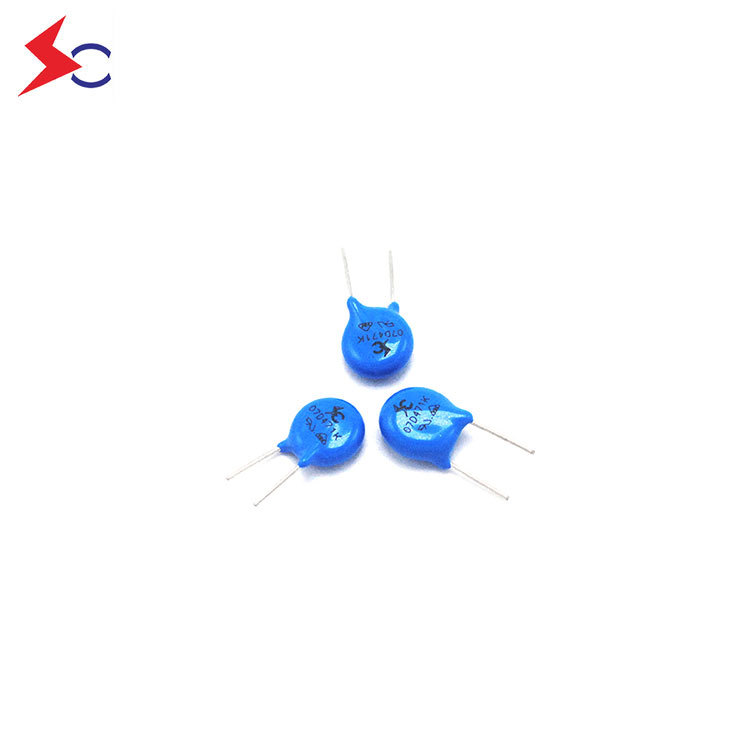

SOCAY Axial Lead Varistors 07D Series MOV 07D751KJ Varistor Voltage V1mA 675V to 825V
(0)
0 Sold
$0.04
$0.14
The Price Is For Reference Only. Please Consult Customer Service.
Type Number: 07D751KJ
Maximum Allowable voltage Vac(V)：460
Varistor Voltage Vdc(V)：615
Varistor Voltage V1mA(V)：750(675~825)
Maximum Clamping Voltage Ip(A): 10
Maximum Clamping Voltage Vc(V): 1240
Withstanding Surge Current I(A) (1 time): 1750
Withstanding Surge Current I(A) (2 times): 1250
Maximum Energy(10/1000μs) (J): 65
Rated Power(W): 0.25
Typical Capacitance (Reference) @1KHZ (pf): 70
Type Number: 07D751KJ
Maximum Allowable voltage Vac(V)：460
Varistor Voltage Vdc(V)：615
Varistor Voltage V1mA(V)：750(675~825)
Maximum Clamping Voltage Ip(A): 10
Maximum Clamping Voltage Vc(V): 1240
Withstanding Surge Current I(A) (1 time): 1750
Withstanding Surge Current I(A) (2 times): 1250
Maximum Energy(10/1000μs) (J): 65
Rated Power(W): 0.25
Typical Capacitance (Reference) @1KHZ (pf): 70
