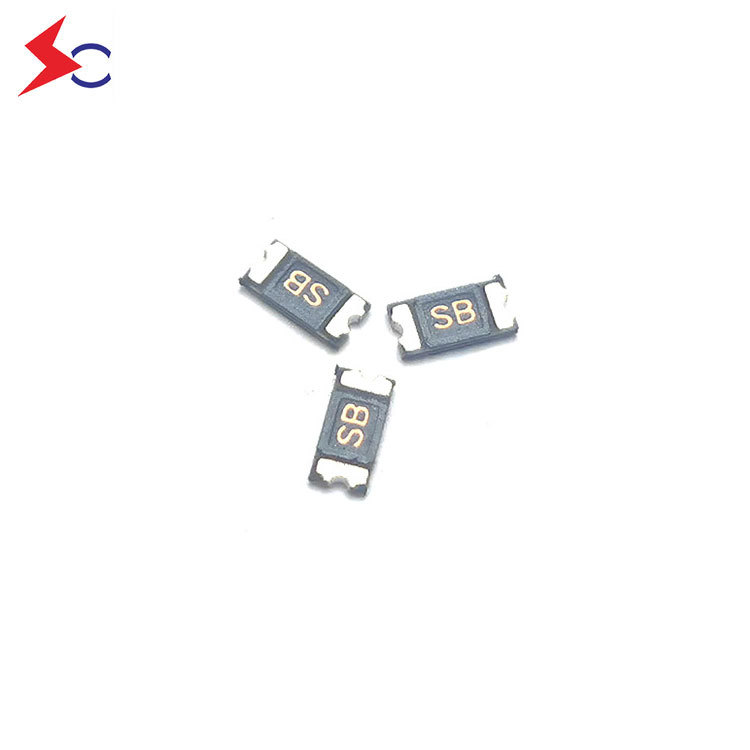

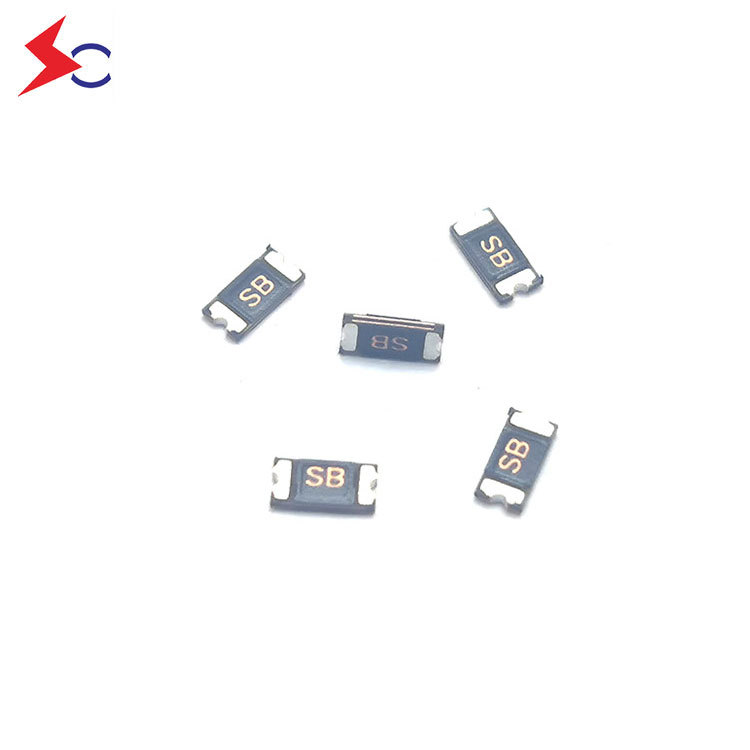

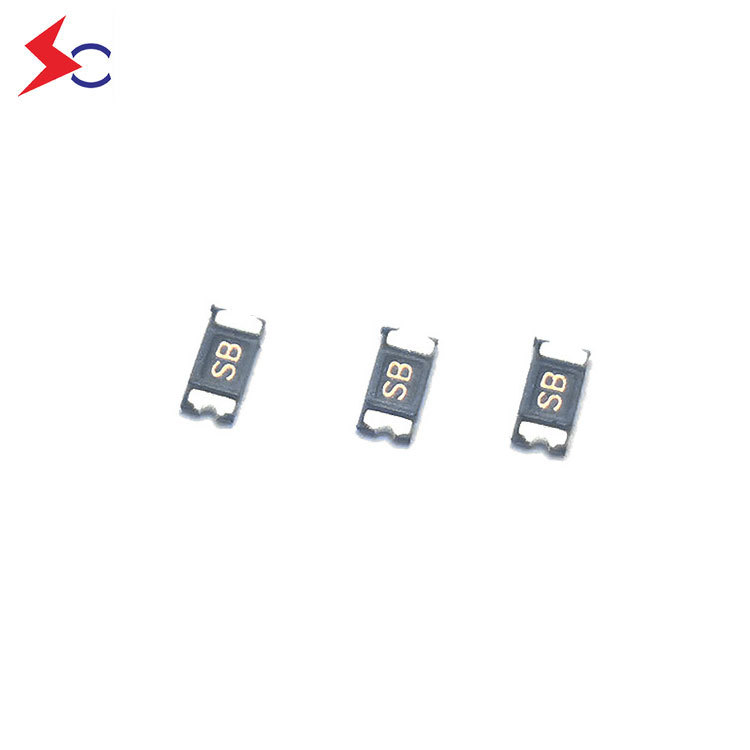

SOCAY 1206RZB Series Vdc6.0V SMD PPTC Fuse SCF450-1206RZB Surface Mount Resettable PTCs For Over-Current Protection
SKU: SCF450-1206RZB
(0)
0 Sold
$0.11
$0.12
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SCF450-1206RZB
Hold Current—I hold(A)：4.5
Trip Current—I trip(A)：9.0
Rated Voltage—V max(Vdc)：6.0
Max Current—I max(A)：50.0
Typical Power—P dtyp.(W)：1.0
Maximum TimeTo Trip—Current(A) ：22.5
Maximum TimeTo Trip—Time(Sec.)：2.0
Resistance—R min(Ω)：0.002
Resistance—R 1max(Ω)：0.012
Part Number：SCF450-1206RZB
Hold Current—I hold(A)：4.5
Trip Current—I trip(A)：9.0
Rated Voltage—V max(Vdc)：6.0
Max Current—I max(A)：50.0
Typical Power—P dtyp.(W)：1.0
Maximum TimeTo Trip—Current(A) ：22.5
Maximum TimeTo Trip—Time(Sec.)：2.0
Resistance—R min(Ω)：0.002
Resistance—R 1max(Ω)：0.012
