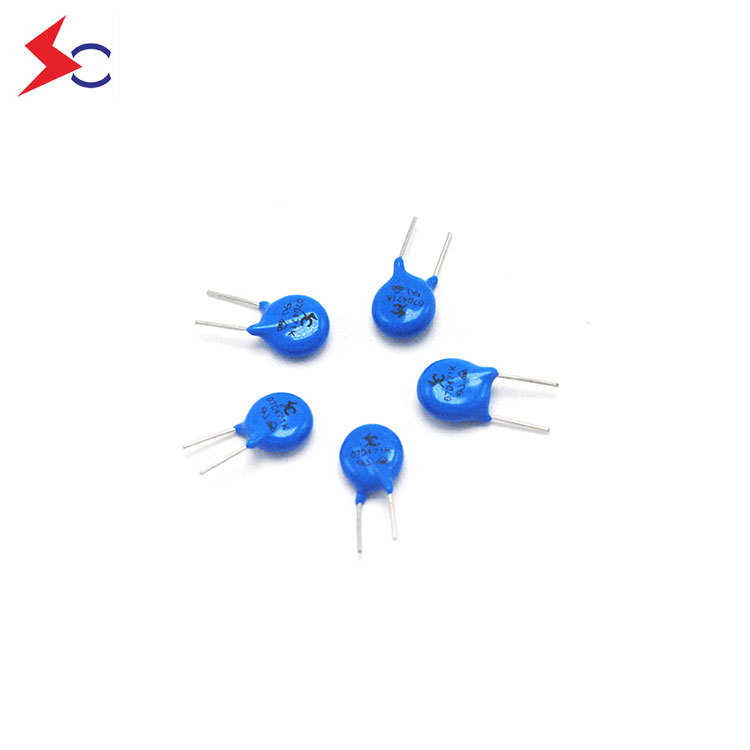

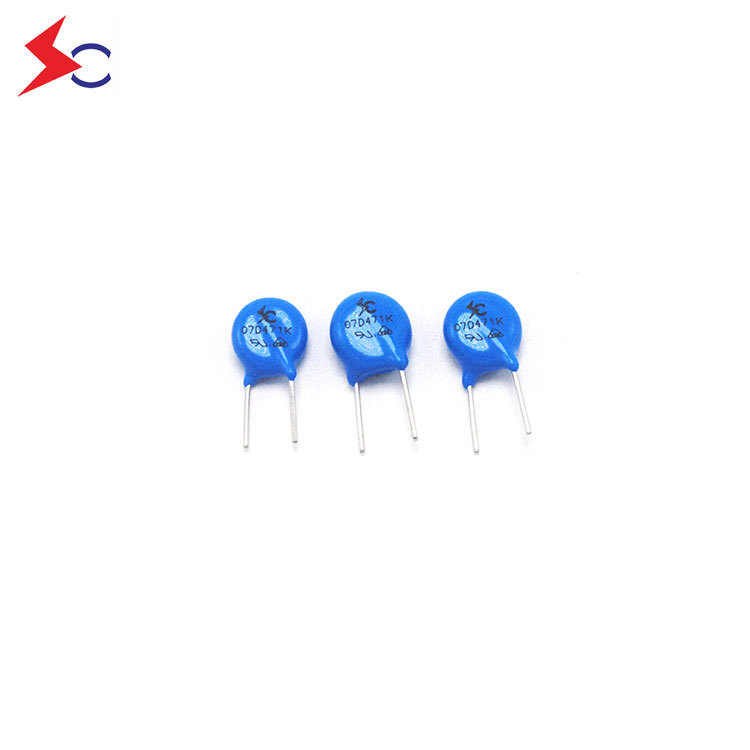

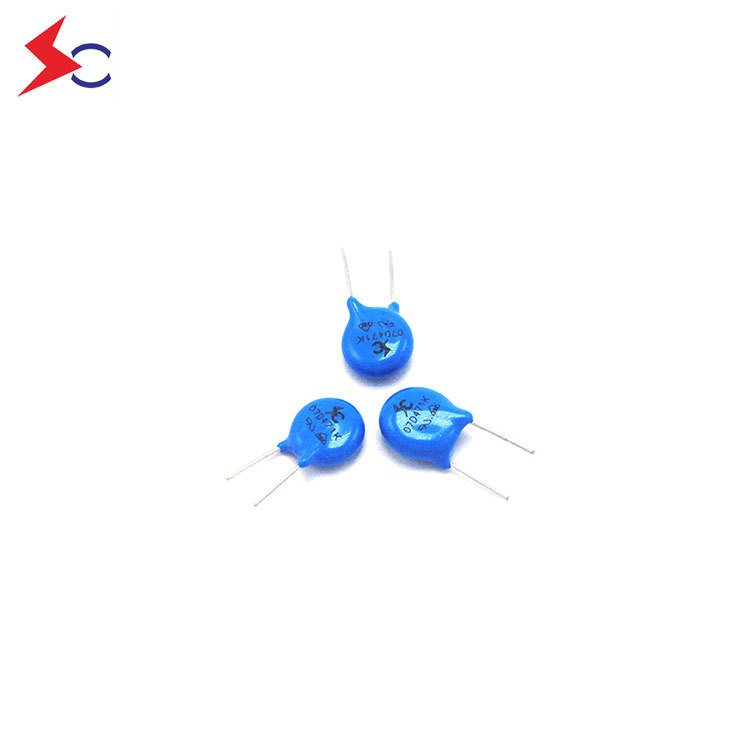

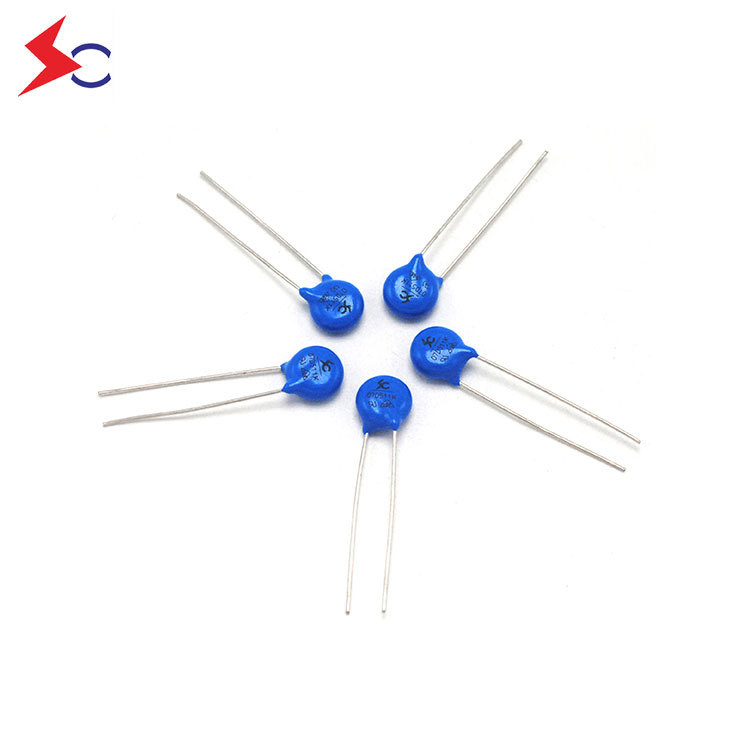

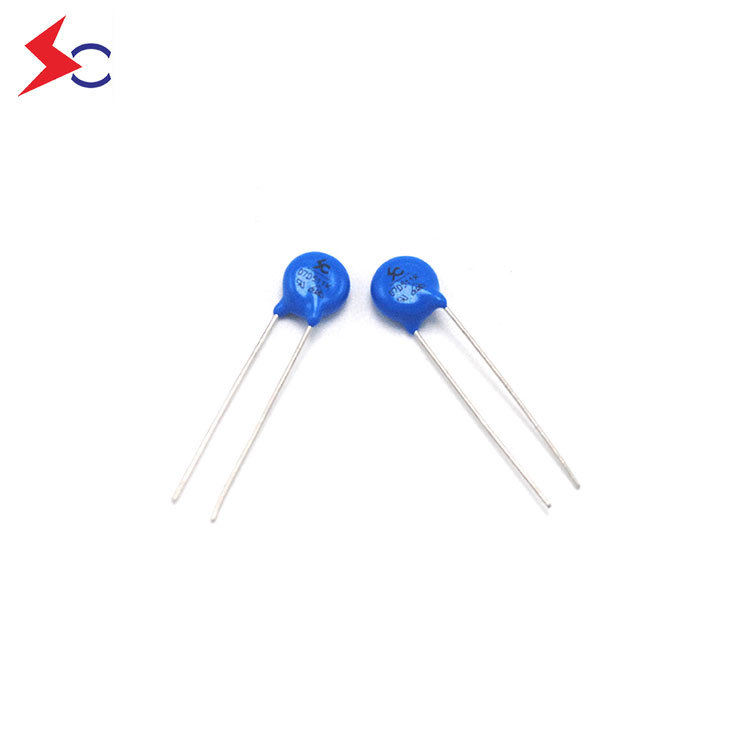

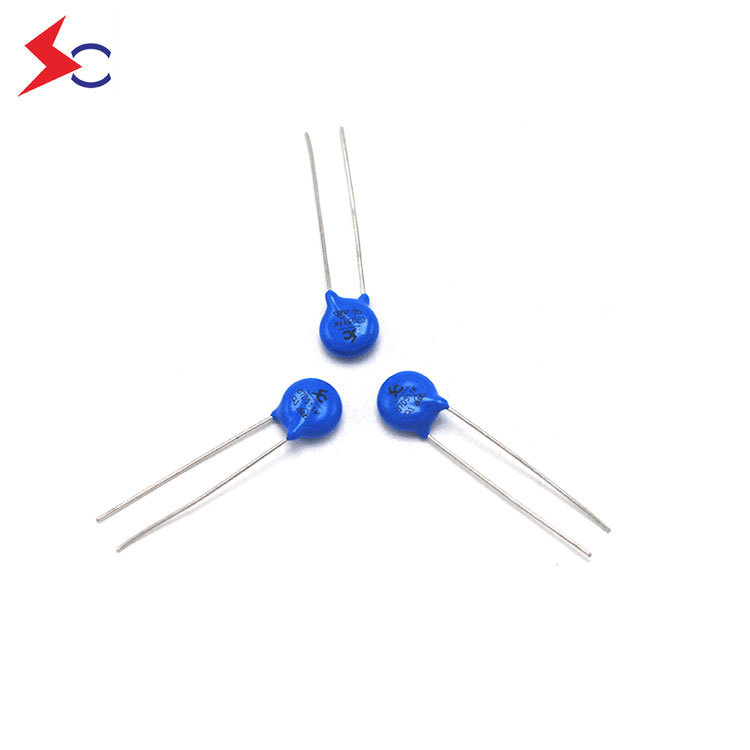

SOCAY Overvoltage Protection Varistors 07D Series MOV 07D621KJ Varistor Voltage V1mA 558V to 682V
(0)
0 Sold
$0.04
$0.14
The Price Is For Reference Only. Please Consult Customer Service.
Type Number: 07D621KJ
Maximum Allowable voltage Vac(V)：385
Varistor Voltage Vdc(V)：505
Varistor Voltage V1mA(V)：620(558~682)
Maximum Clamping Voltage Ip(A): 10
Maximum Clamping Voltage Vc(V): 1025
Withstanding Surge Current I(A) (1 time): 1750
Withstanding Surge Current I(A) (2 times): 1250
Maximum Energy(10/1000μs) (J): 33
Rated Power(W): 0.25
Typical Capacitance (Reference) @1KHZ (pf): 80
Type Number: 07D621KJ
Maximum Allowable voltage Vac(V)：385
Varistor Voltage Vdc(V)：505
Varistor Voltage V1mA(V)：620(558~682)
Maximum Clamping Voltage Ip(A): 10
Maximum Clamping Voltage Vc(V): 1025
Withstanding Surge Current I(A) (1 time): 1750
Withstanding Surge Current I(A) (2 times): 1250
Maximum Energy(10/1000μs) (J): 33
Rated Power(W): 0.25
Typical Capacitance (Reference) @1KHZ (pf): 80
