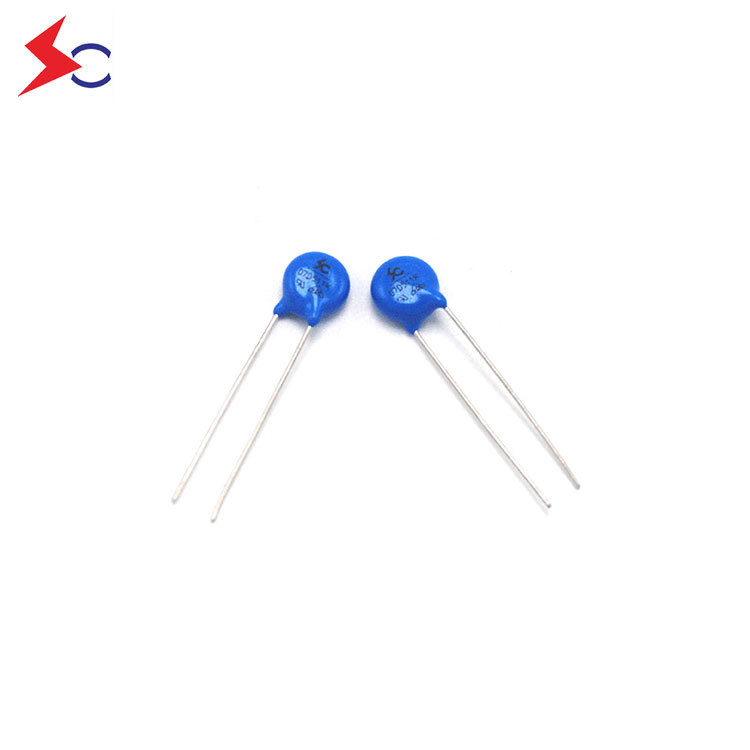

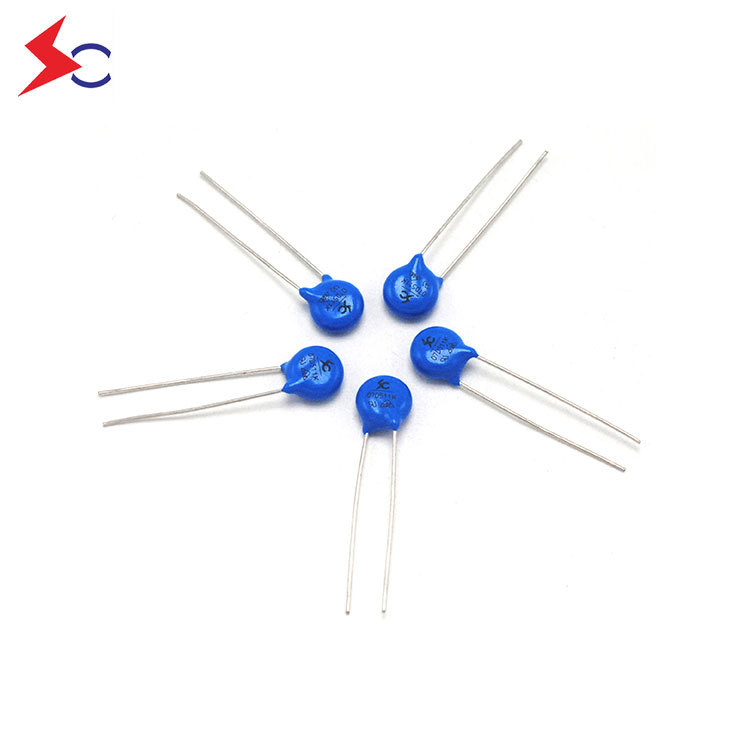

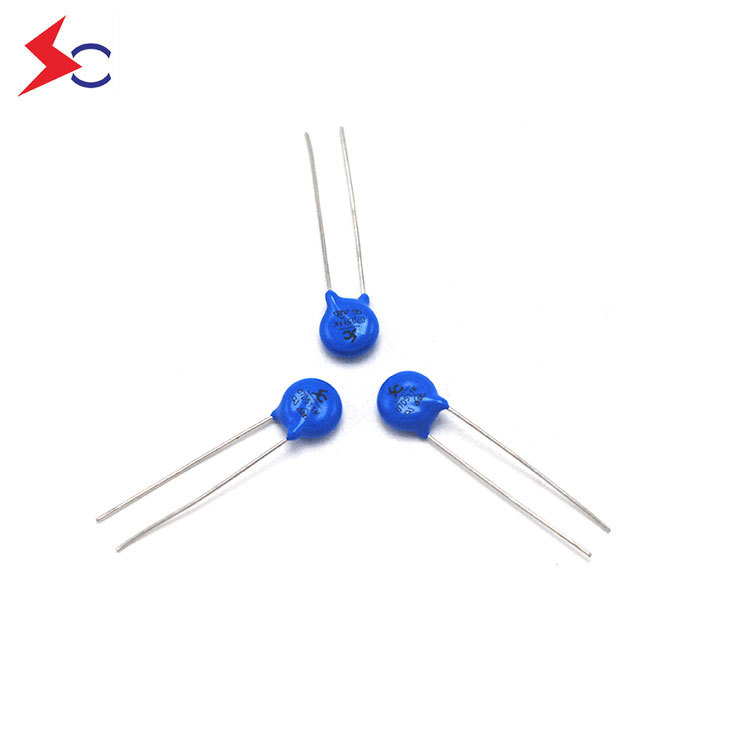

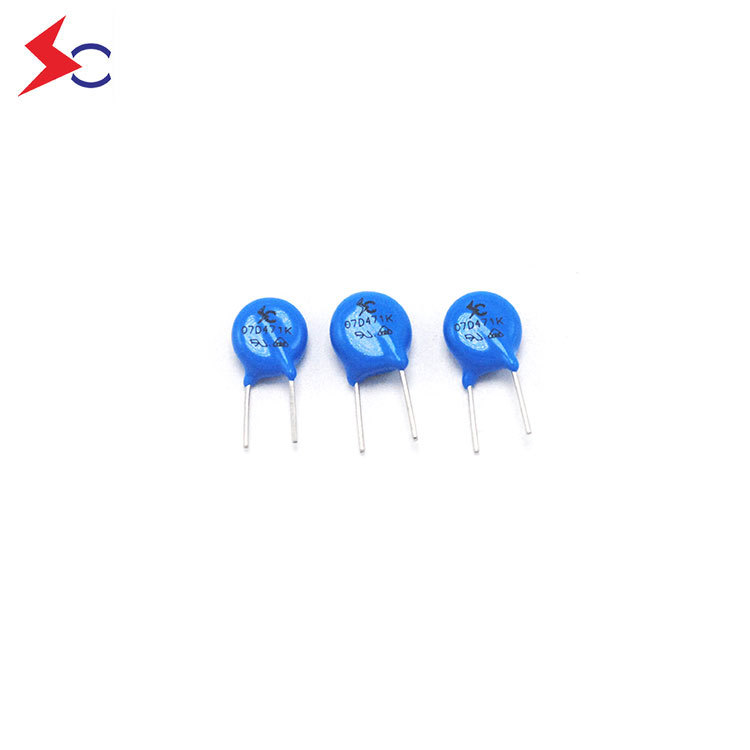

SOCAY Radial Lead Varistors 07D Series MOV 07D681KJ Varistor Voltage V1mA 612V to 748V
(0)
0 Sold
$0.03
$0.13
The Price Is For Reference Only. Please Consult Customer Service.
Type Number: 07D681KJ
Maximum Allowable voltage Vac(V)：420
Varistor Voltage Vdc(V)：560
Varistor Voltage V1mA(V)：680(612~748)
Maximum Clamping Voltage Ip(A): 10
Maximum Clamping Voltage Vc(V): 1120
Withstanding Surge Current I(A) (1 time): 1750
Withstanding Surge Current I(A) (2 times): 1250
Maximum Energy(10/1000μs) (J): 60
Rated Power(W): 0.25
Typical Capacitance (Reference) @1KHZ (pf): 75
Type Number: 07D681KJ
Maximum Allowable voltage Vac(V)：420
Varistor Voltage Vdc(V)：560
Varistor Voltage V1mA(V)：680(612~748)
Maximum Clamping Voltage Ip(A): 10
Maximum Clamping Voltage Vc(V): 1120
Withstanding Surge Current I(A) (1 time): 1750
Withstanding Surge Current I(A) (2 times): 1250
Maximum Energy(10/1000μs) (J): 60
Rated Power(W): 0.25
Typical Capacitance (Reference) @1KHZ (pf): 75
