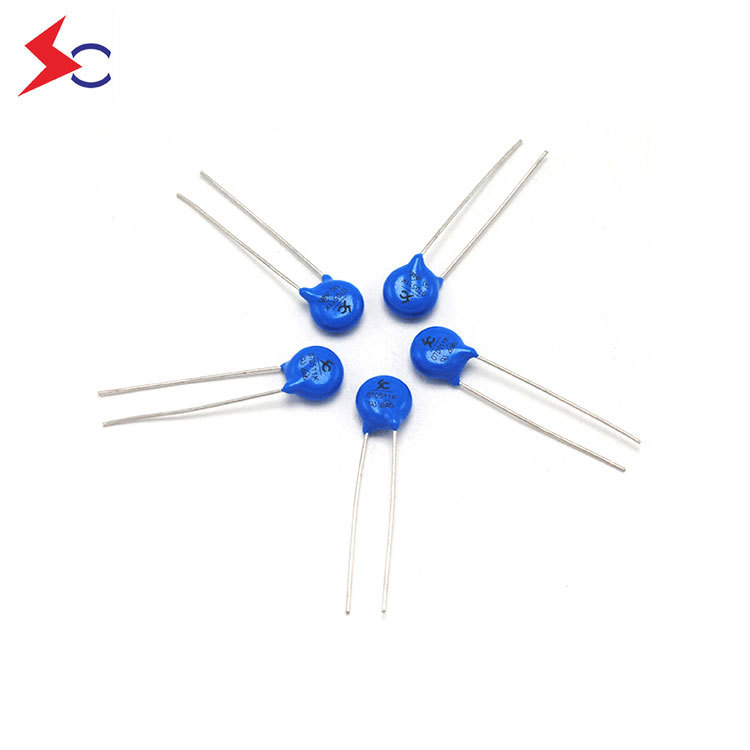

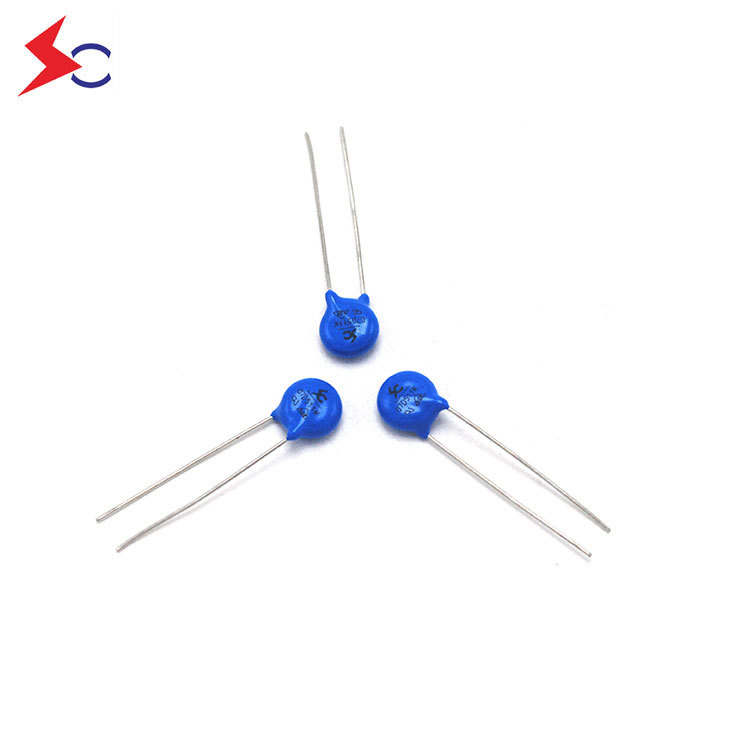

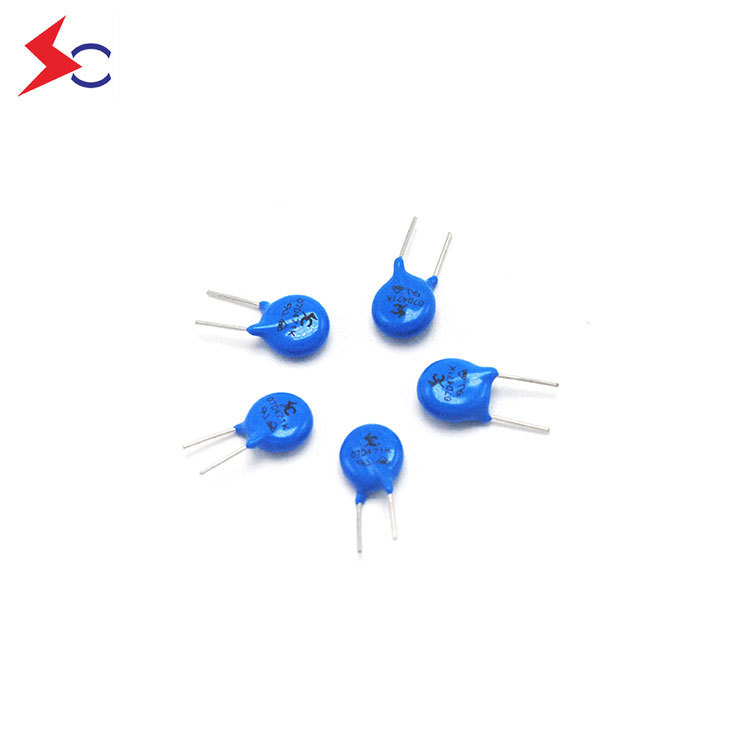

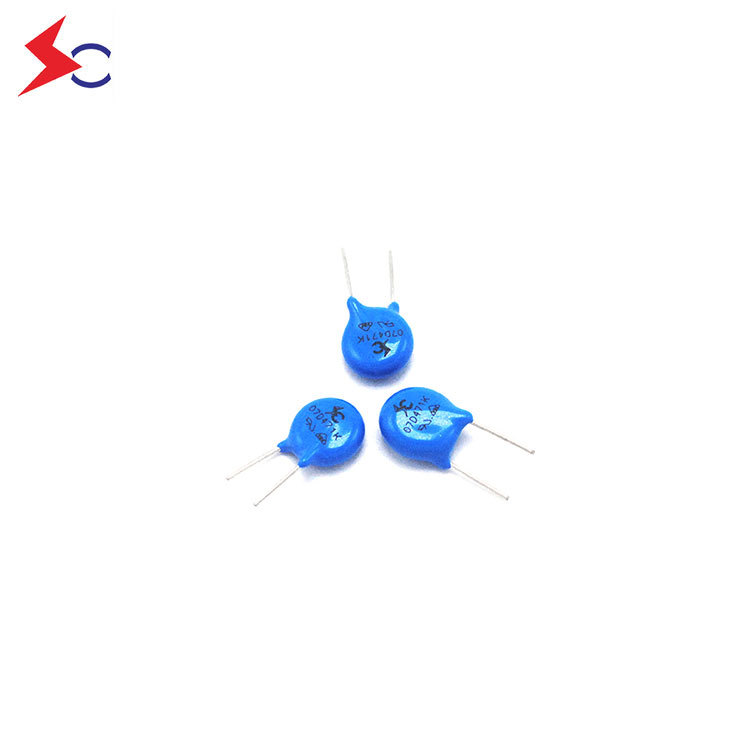

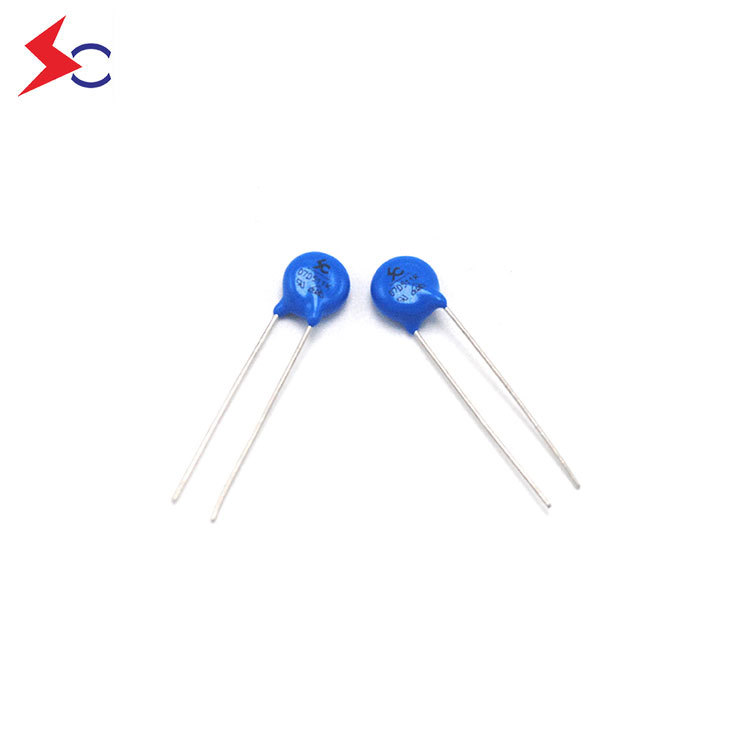

SOCAY Surge Protective Varistors 07D Series MOV 07D561K Varistor Voltage V1mA 504V to 616V
(0)
0 Sold
$0.04
$0.14
The Price Is For Reference Only. Please Consult Customer Service.
Type Number: 07D561K
Maximum Allowable voltage Vac(V)：350
Varistor Voltage Vdc(V)：460
Varistor Voltage V1mA(V)：560(504~616)
Maximum Clamping Voltage Ip(A): 10
Maximum Clamping Voltage Vc(V): 925
Withstanding Surge Current I(A) (1 time): 1200
Withstanding Surge Current I(A) (2 times): 600
Maximum Energy(10/1000μs) (J): 30
Rated Power(W): 0.25
Typical Capacitance (Reference) @1KHZ (pf): 90
Type Number: 07D561K
Maximum Allowable voltage Vac(V)：350
Varistor Voltage Vdc(V)：460
Varistor Voltage V1mA(V)：560(504~616)
Maximum Clamping Voltage Ip(A): 10
Maximum Clamping Voltage Vc(V): 925
Withstanding Surge Current I(A) (1 time): 1200
Withstanding Surge Current I(A) (2 times): 600
Maximum Energy(10/1000μs) (J): 30
Rated Power(W): 0.25
Typical Capacitance (Reference) @1KHZ (pf): 90
