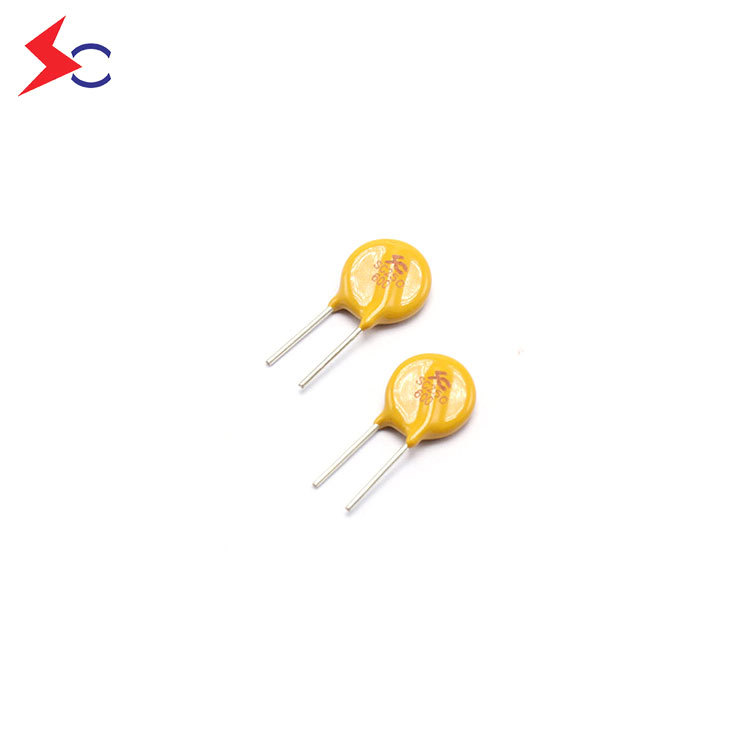

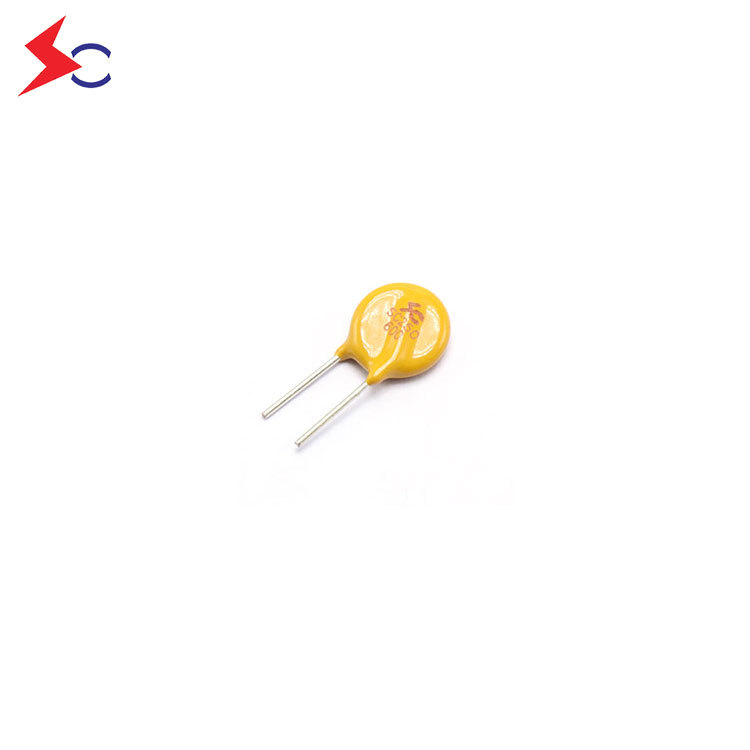

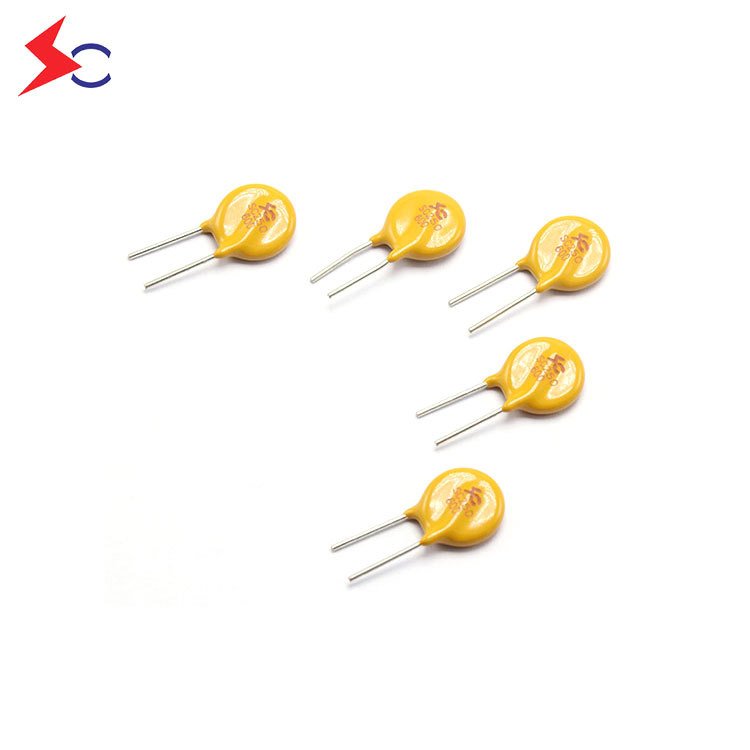

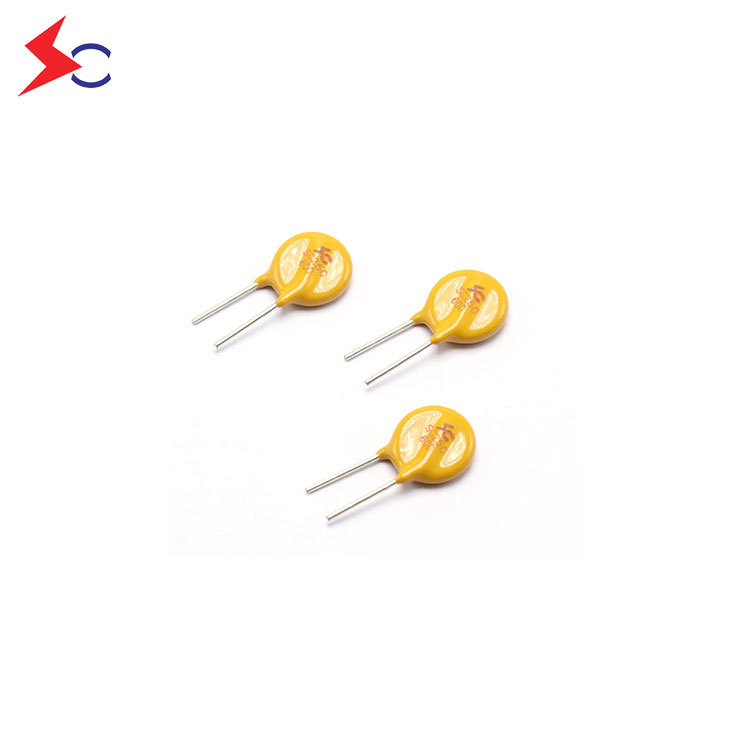

SOCAY Circuit Protection Radial Lead PPTC SC250-600CZ0D 220Vdc DIP Resettable Polymer PTCs Fuses
SKU: SC250-600CZ0D
(0)
0 Sold
$0.07
$0.08
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SC250-600CZ0D
Hold Current—I hold(A)：0.6
Trip Current—I trip(A)：1.2
Rated Voltage—V max(Vdc)：220
Max Current—I max(A)：3.0
Typical Power—P dtyp.(W)：4.0
Maximum Time To Trip—Current(A) ：3.0
Maximum Time To Trip—Time(Sec.)：10.0
Resistance—R min(Ω)：0.5
Resistance—R max(Ω)：0.75
Resistance—R 1max(Ω)：1.13
