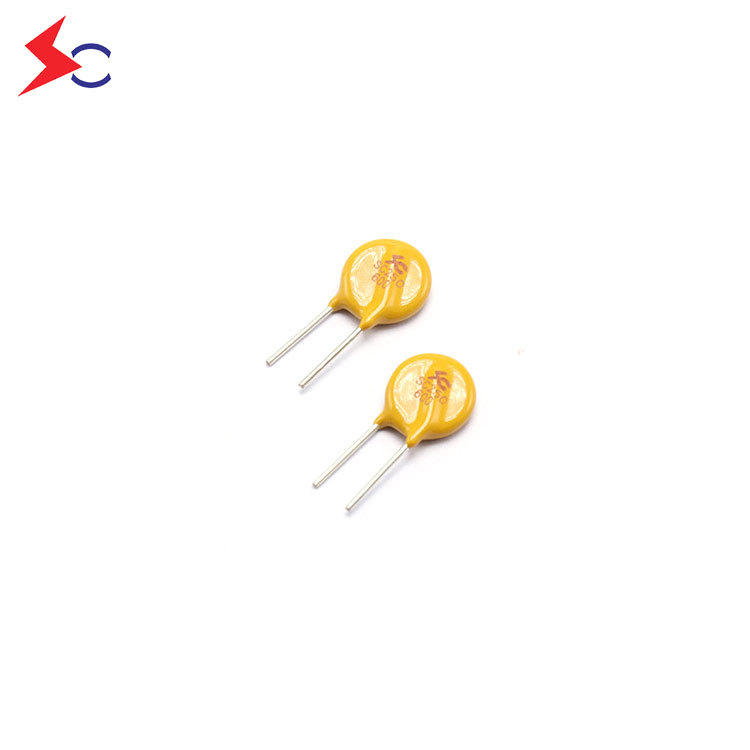

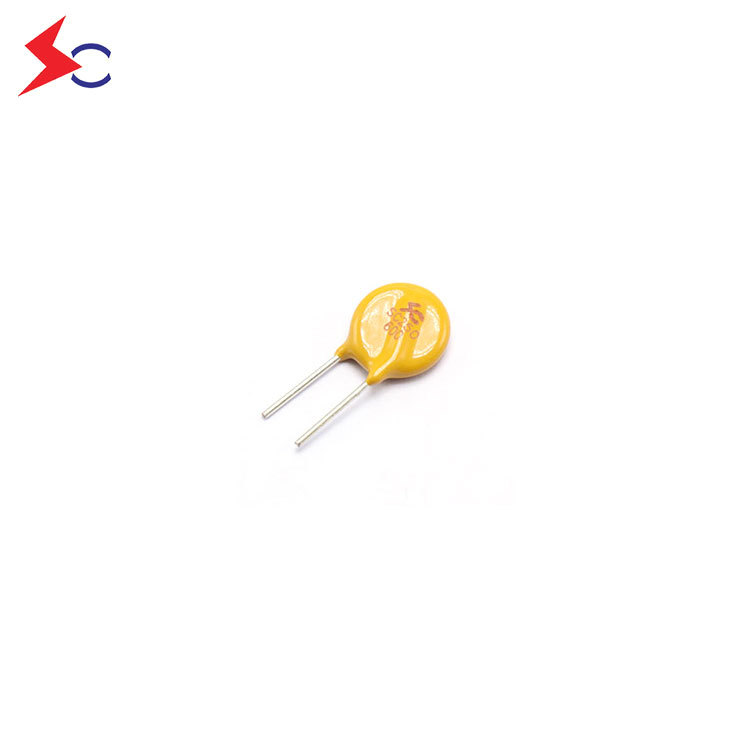

SOCAY High Quality Radial Lead PPTC Fuse Vdc250V With I hold 3.0A SC250-3000SZ0D DIP Resettable Polymer PTCs
SKU: SC250-3000SZ0D
(0)
0 Sold
$0.33
$0.34
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SC250-3000SZ0D
Hold Current—I hold(A)：3.0
Trip Current—I trip(A)：6.0
Rated Voltage—V max(Vdc)：250.0
Max Current—I max(A)：20.0
Typical Power—P dtyp.(W)：4.8
Maximum Time To Trip—Current(A) ：15.0
Maximum Time To Trip—Time(Sec.)：25.0
Resistance—R min(Ω)：0.08
Resistance—R 1max(Ω)：0.225
Part Number：SC250-3000SZ0D
Hold Current—I hold(A)：3.0
Trip Current—I trip(A)：6.0
Rated Voltage—V max(Vdc)：250.0
Max Current—I max(A)：20.0
Typical Power—P dtyp.(W)：4.8
Maximum Time To Trip—Current(A) ：15.0
Maximum Time To Trip—Time(Sec.)：25.0
Resistance—R min(Ω)：0.08
Resistance—R 1max(Ω)：0.225
