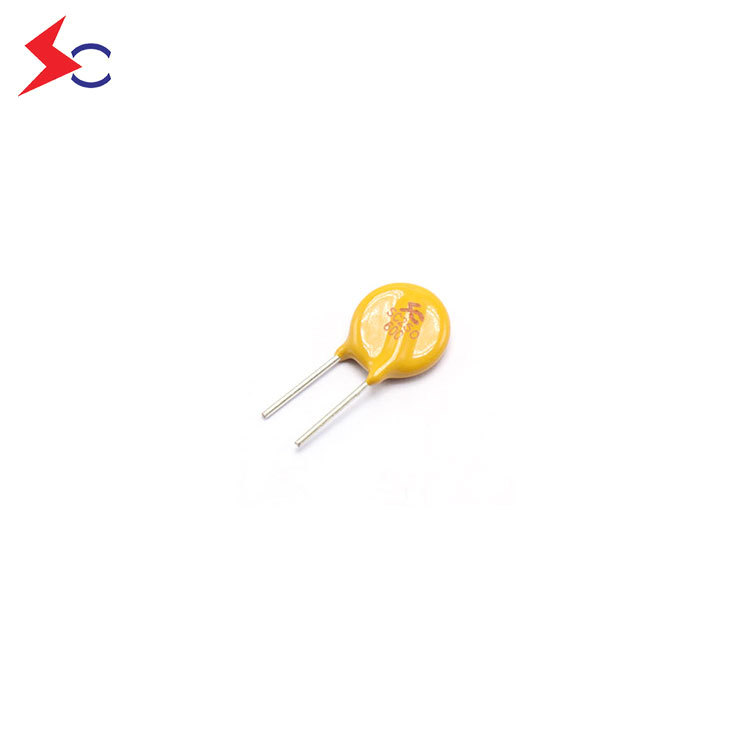

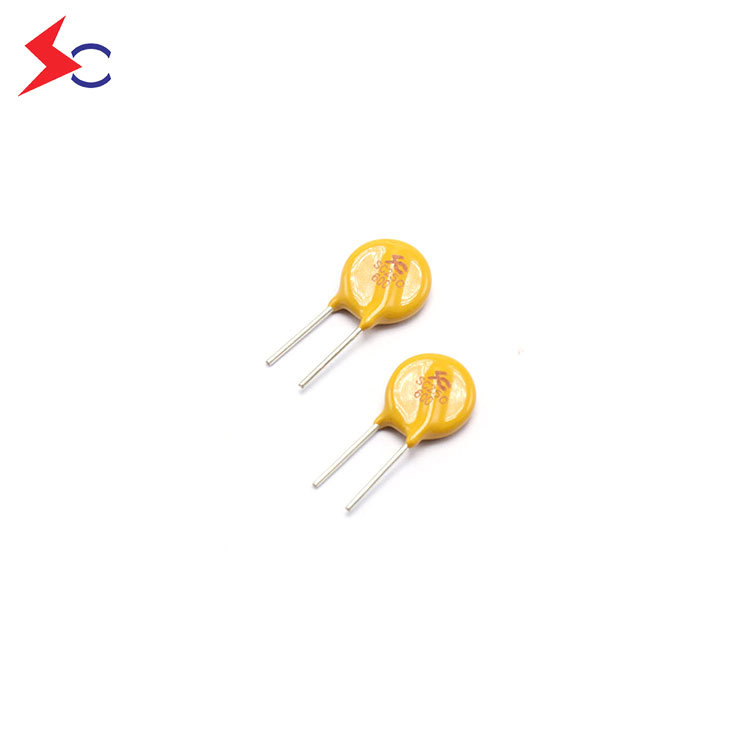

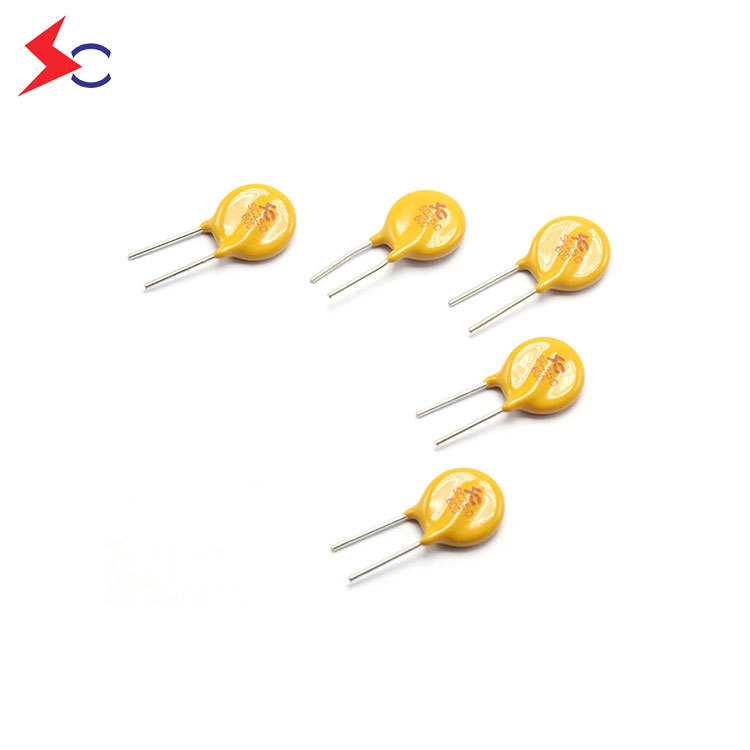

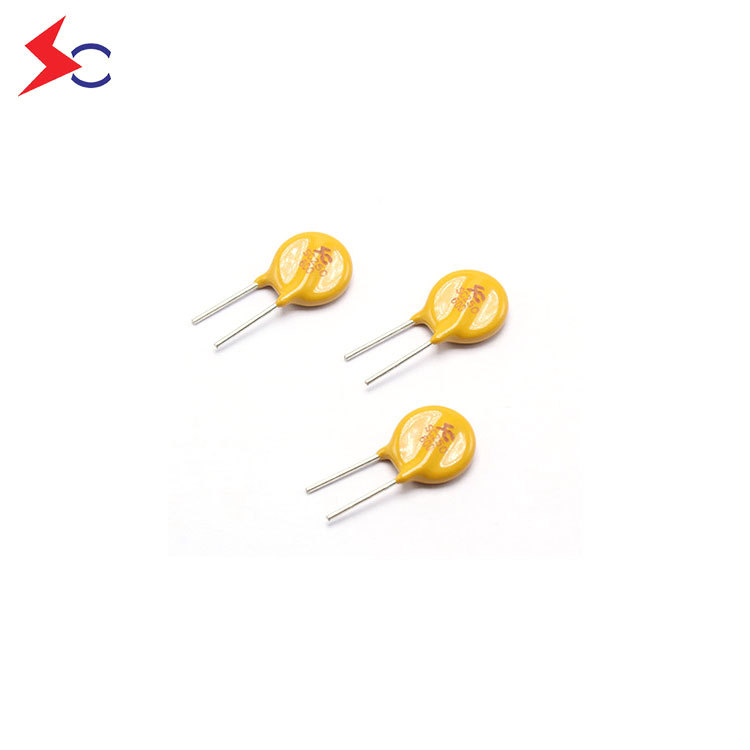

SOCAY Fuses Components DIP PPTC SC250-1200CZ0D Radial Lead Resettable Polymer PTCs From Original Factory
SKU: SC250-1200CZ0D
(0)
0 Sold
$0.09
$0.10
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SC250-1200CZ0D
Hold Current—I hold(A)：1.2
Trip Current—I trip(A)：2.4
Rated Voltage—V max(Vdc)：220
Max Current—I max(A)：10.0
Typical Power—P dtyp.(W)：4.0
Maximum Time To Trip—Current(A) ：6.0
Maximum Time To Trip—Time(Sec.)：15.0
Resistance—R min(Ω)：0.17
Resistance—R 1max(Ω)：0.42
Part Number：SC250-1200CZ0D
Hold Current—I hold(A)：1.2
Trip Current—I trip(A)：2.4
Rated Voltage—V max(Vdc)：220
Max Current—I max(A)：10.0
Typical Power—P dtyp.(W)：4.0
Maximum Time To Trip—Current(A) ：6.0
Maximum Time To Trip—Time(Sec.)：15.0
Resistance—R min(Ω)：0.17
Resistance—R 1max(Ω)：0.42
