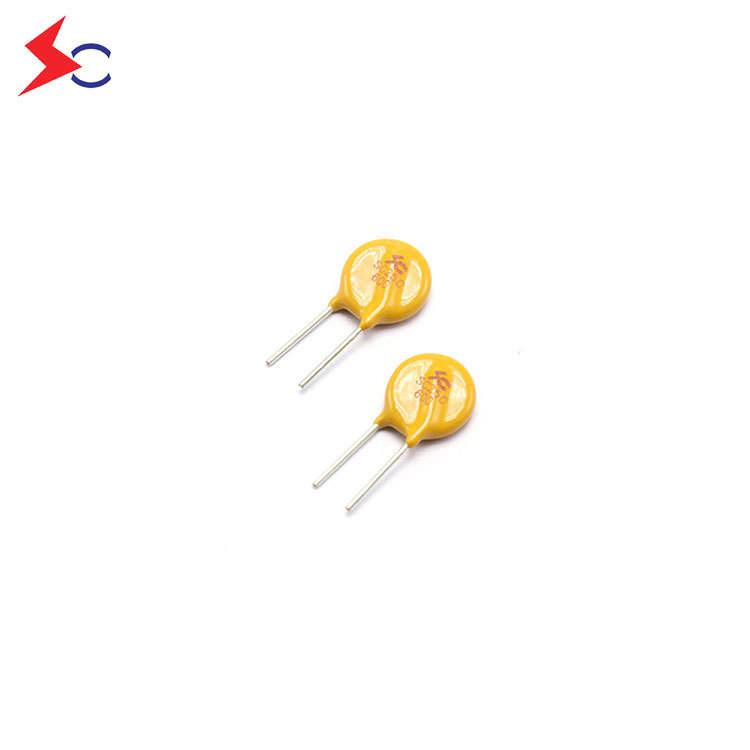

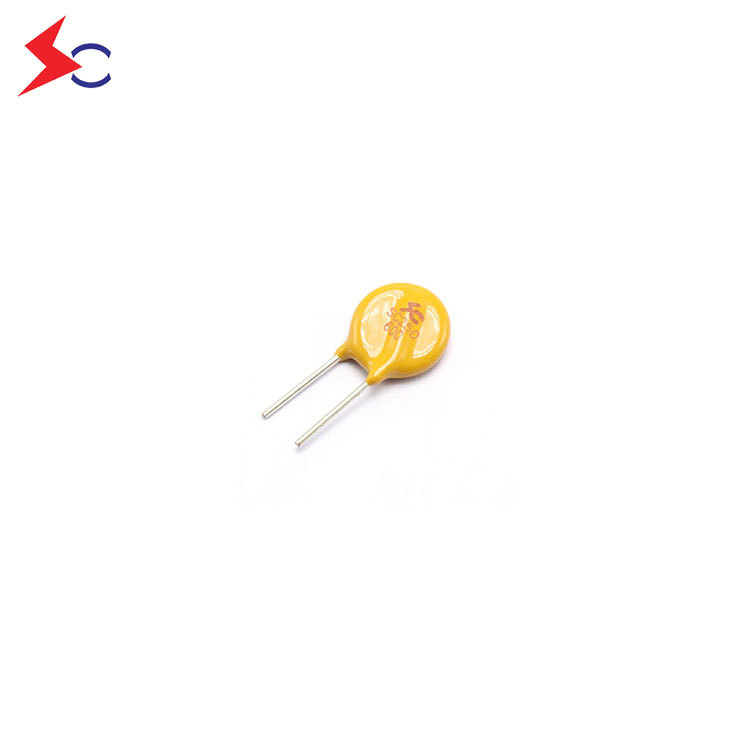

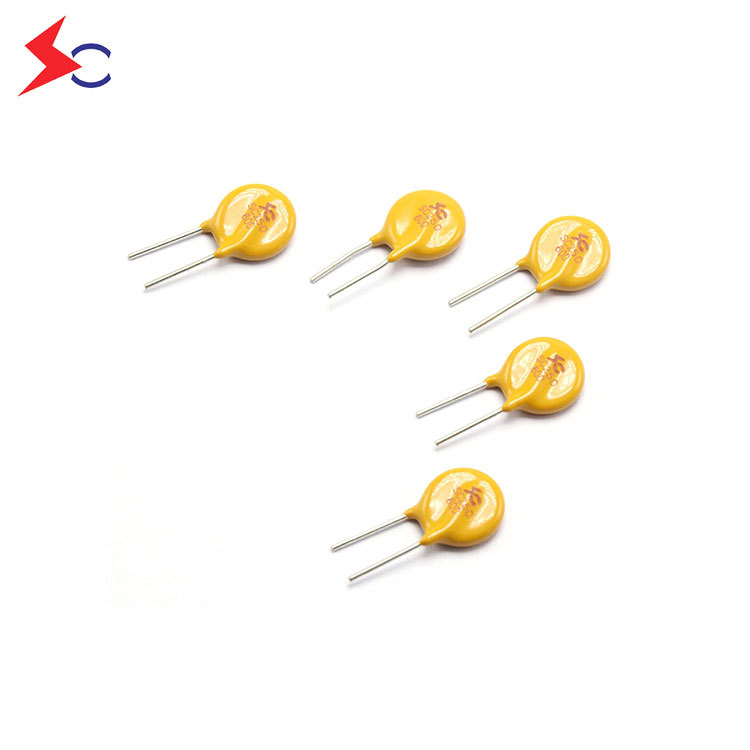

SOCAY Vdc265V 1.25A DIP PPTC Fuse SC250-1250SZ0D Radial Lead Resettable Polymer PTCs For Over-Current Protection
SKU: SC250-1250SZ0D
(0)
0 Sold
$0.25
$0.26
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SC250-1250SZ0D
Hold Current—I hold(A)：1.25
Trip Current—I trip(A)：2.5
Rated Voltage—V max(Vdc)：265.0
Max Current—I max(A)：10.0
Typical Power—P dtyp.(W)：3.3
Maximum Time To Trip—Current(A) ：6.25
Maximum Time To Trip—Time(Sec.)：23.0
Resistance—R min(Ω)：0.16
Resistance—R max(Ω)：0.35
Resistance—R 1max(Ω)：0.59
Part Number：SC250-1250SZ0D
Hold Current—I hold(A)：1.25
Trip Current—I trip(A)：2.5
Rated Voltage—V max(Vdc)：265.0
Max Current—I max(A)：10.0
Typical Power—P dtyp.(W)：3.3
Maximum Time To Trip—Current(A) ：6.25
Maximum Time To Trip—Time(Sec.)：23.0
Resistance—R min(Ω)：0.16
Resistance—R max(Ω)：0.35
Resistance—R 1max(Ω)：0.59
