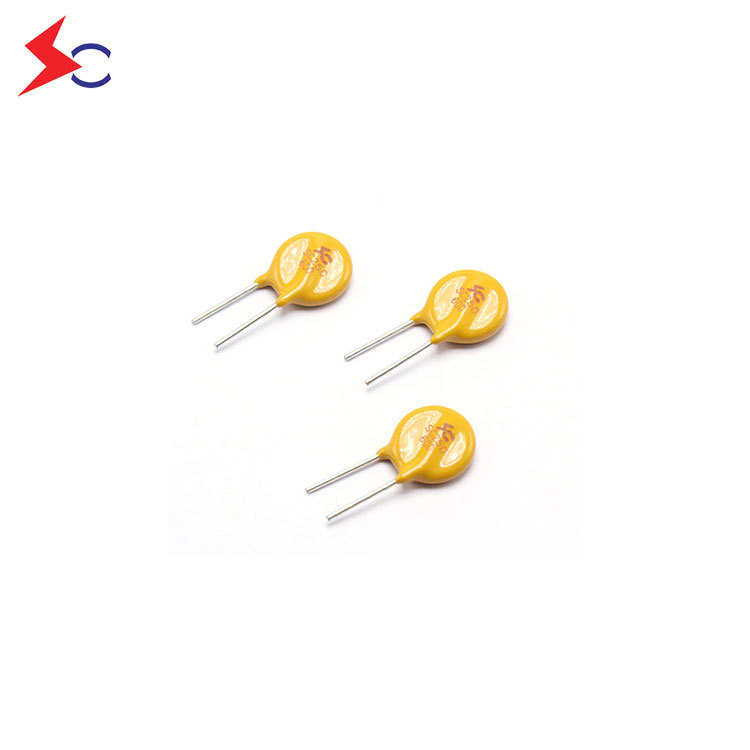

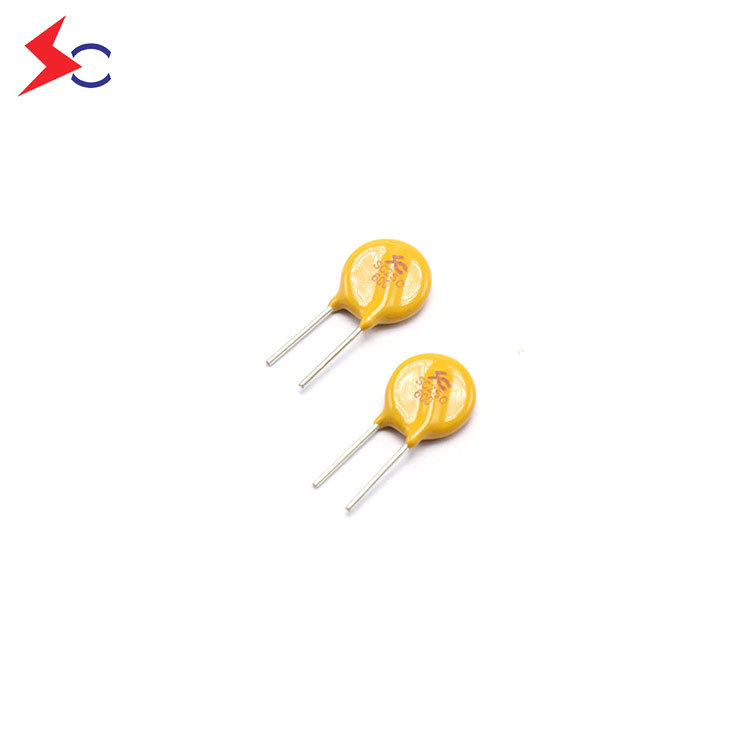

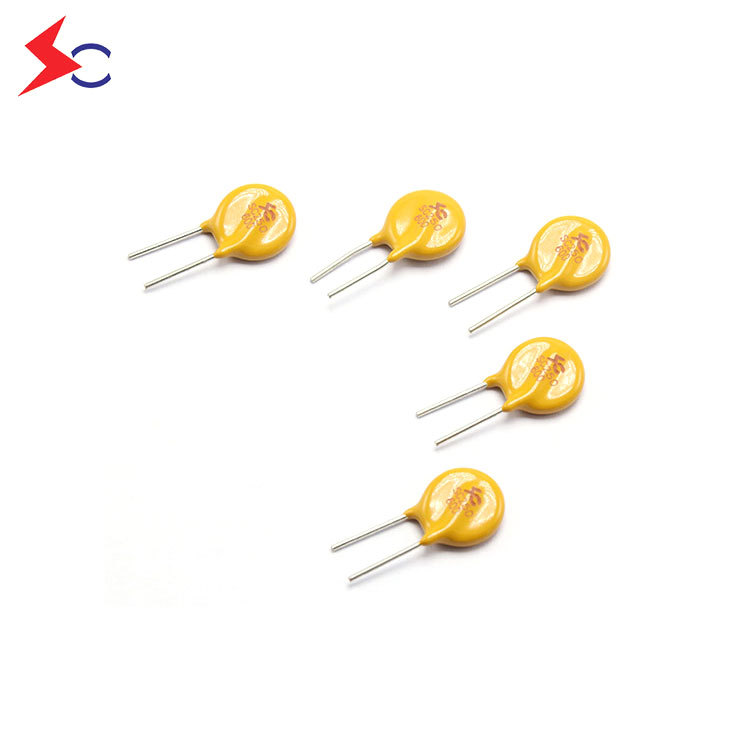

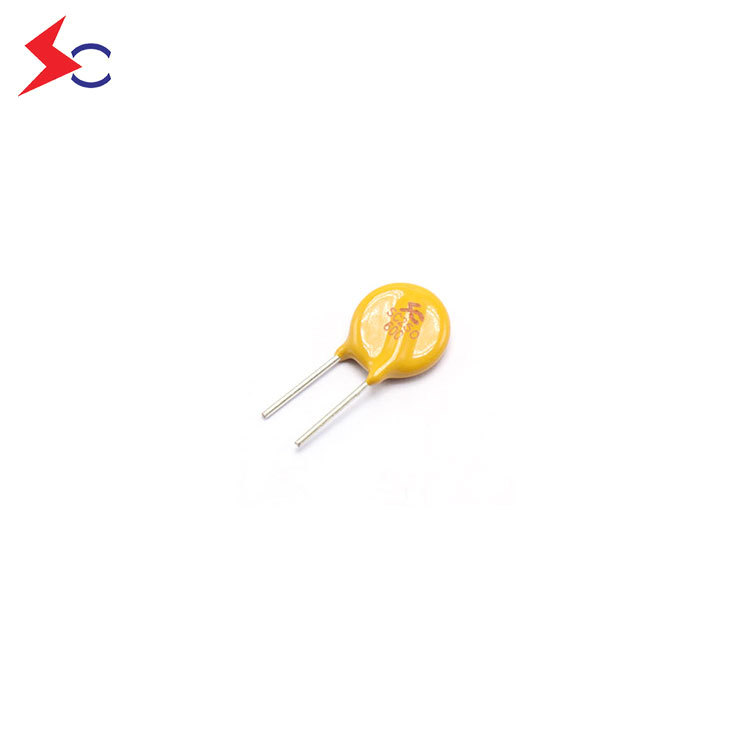

SOCAY Radial Lead Resettable Polymer PTCs Vdc250V With I hold 2.0A SC250-2000SZ0D DIP PPTC Fuse Used In Power Ports
SKU: SC250-2000SZ0D
(0)
0 Sold
$0.16
$0.17
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SC250-2000SZ0D
Hold Current—I hold(A)：2.0
Trip Current—I trip(A)：4.0
Rated Voltage—V max(Vdc)：250.0
Max Current—I max(A)：10.0
Typical Power—P dtyp.(W)：5.0
Maximum Time To Trip—Current(A) ：10.0
Maximum Time To Trip—Time(Sec.)：25.0
Resistance—R min(Ω)：0.12
Resistance—R 1max(Ω)：0.45
Part Number：SC250-2000SZ0D
Hold Current—I hold(A)：2.0
Trip Current—I trip(A)：4.0
Rated Voltage—V max(Vdc)：250.0
Max Current—I max(A)：10.0
Typical Power—P dtyp.(W)：5.0
Maximum Time To Trip—Current(A) ：10.0
Maximum Time To Trip—Time(Sec.)：25.0
Resistance—R min(Ω)：0.12
Resistance—R 1max(Ω)：0.45
