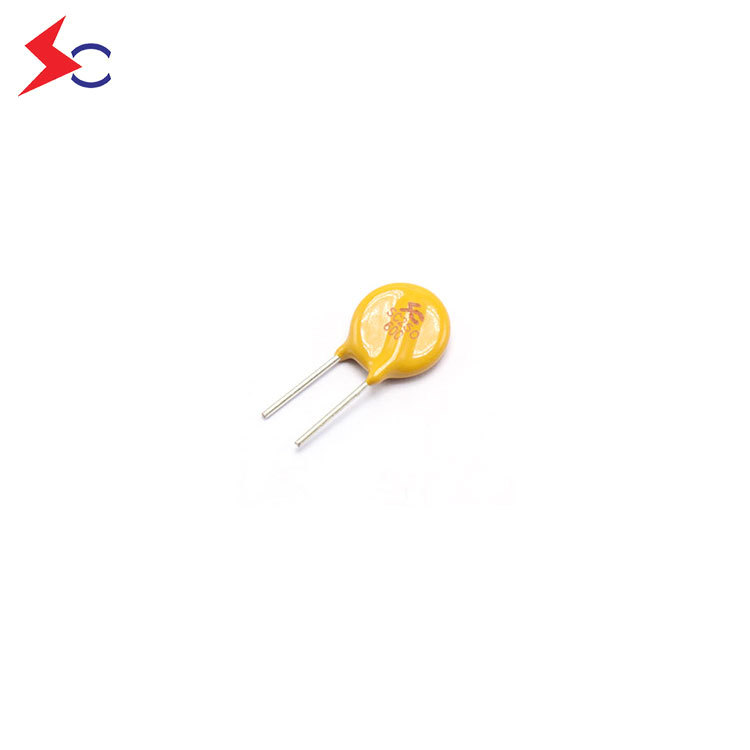

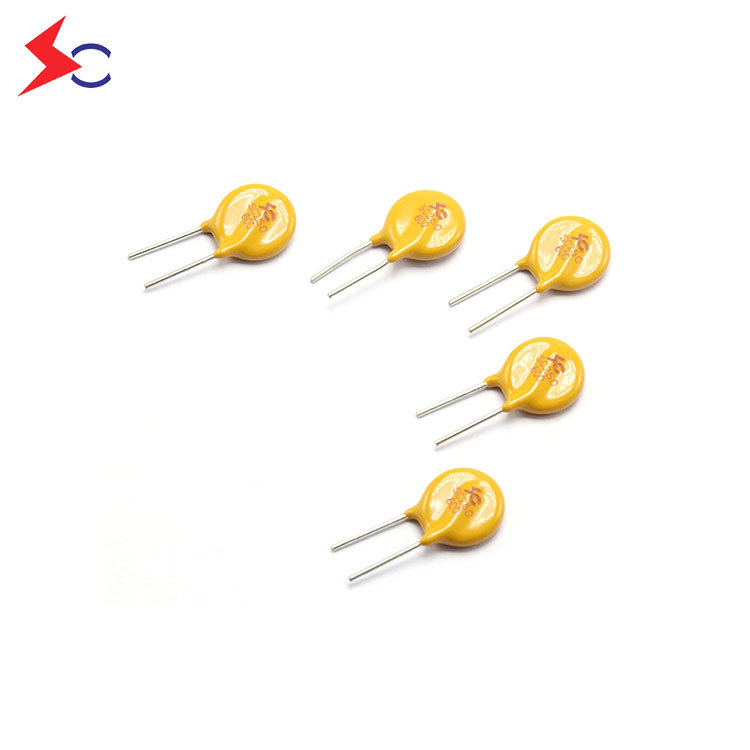

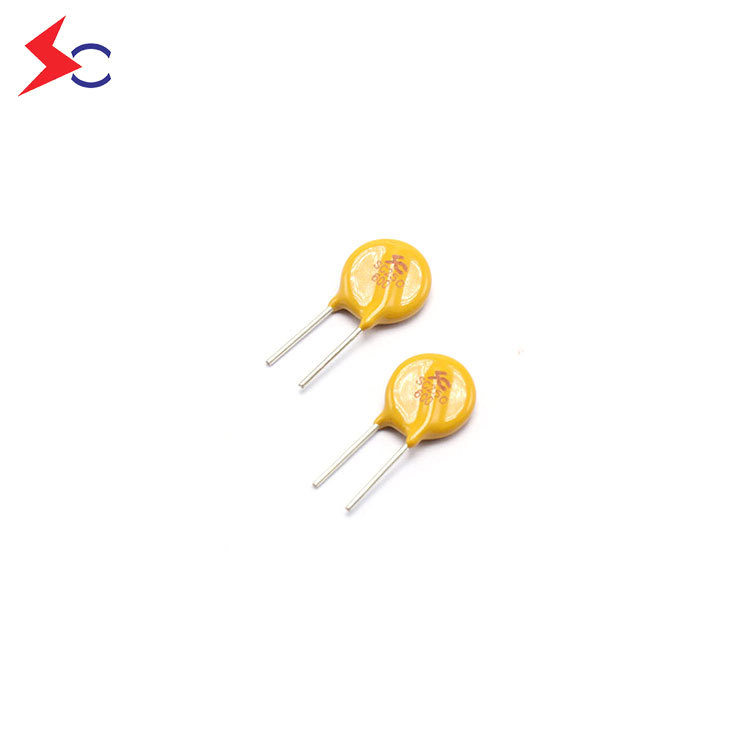

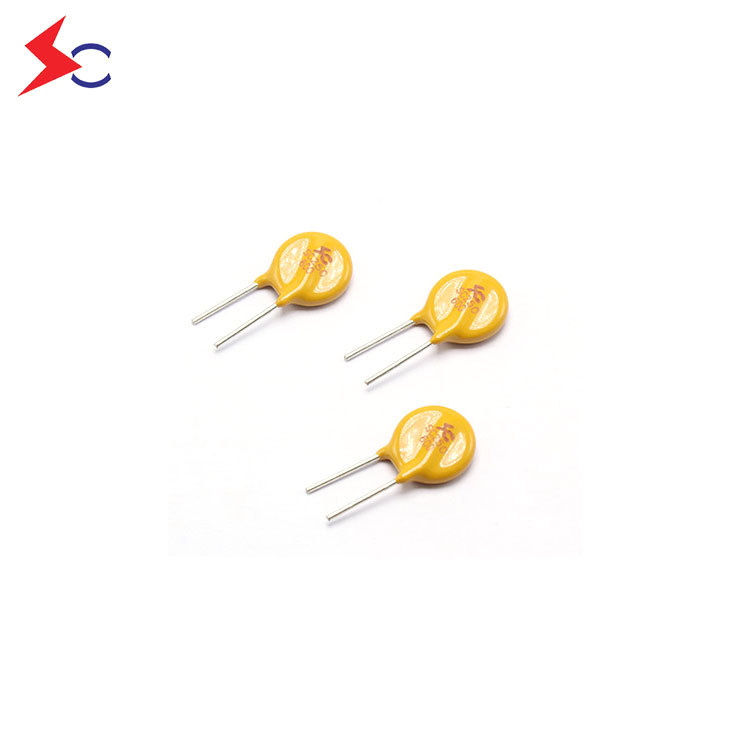

SOCAY DIP 250Vdc PPTC Fuses 0.8A SC250-800SZ0D Radial Lead Resettable Polymer PTCs To Central Office Equipment
SKU: SC250-800SZ0D
(0)
0 Sold
$0.10
$0.11
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SC250-800SZ0D
Hold Current—I hold(A)：0.8
Trip Current—I trip(A)：1.6
Rated Voltage—V max(Vdc)：250
Max Current—I max(A)：5.0
Typical Power—P dtyp.(W)：4.0
Maximum Time To Trip—Current(A) ：4.0
Maximum Time To Trip—Time(Sec.)：20.0
Resistance—R min(Ω)：0.4
Resistance—R 1max(Ω)：1.5
Part Number：SC250-800SZ0D
Hold Current—I hold(A)：0.8
Trip Current—I trip(A)：1.6
Rated Voltage—V max(Vdc)：250
Max Current—I max(A)：5.0
Typical Power—P dtyp.(W)：4.0
Maximum Time To Trip—Current(A) ：4.0
Maximum Time To Trip—Time(Sec.)：20.0
Resistance—R min(Ω)：0.4
Resistance—R 1max(Ω)：1.5
