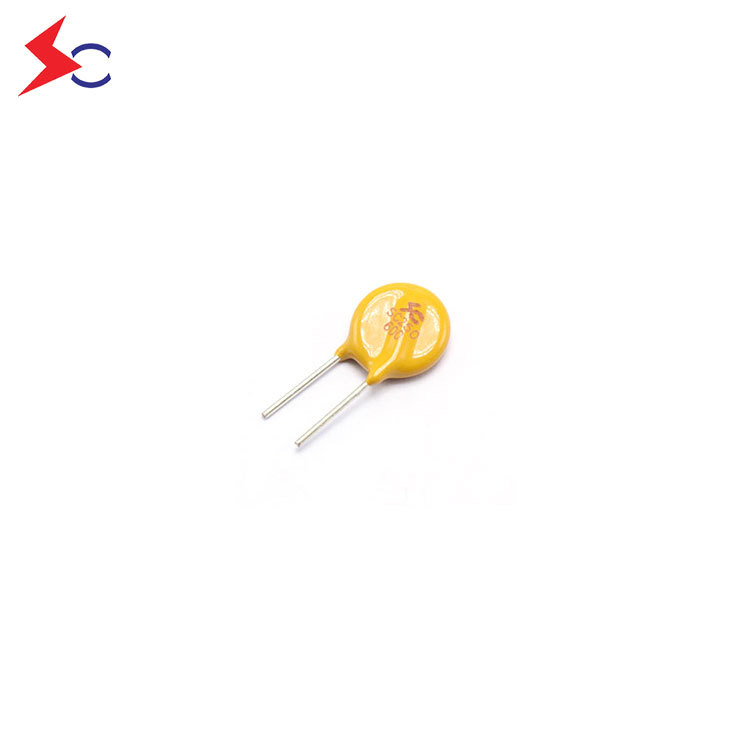

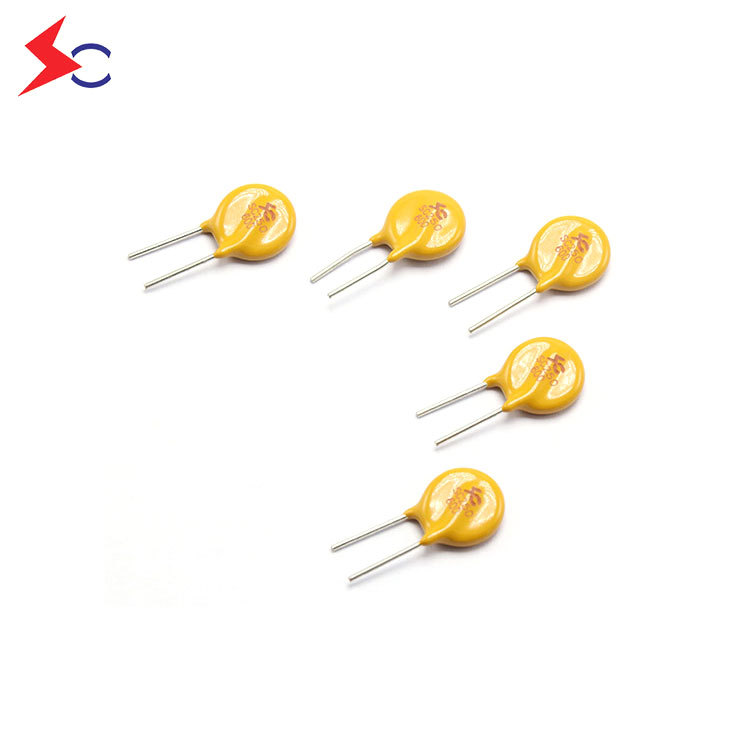

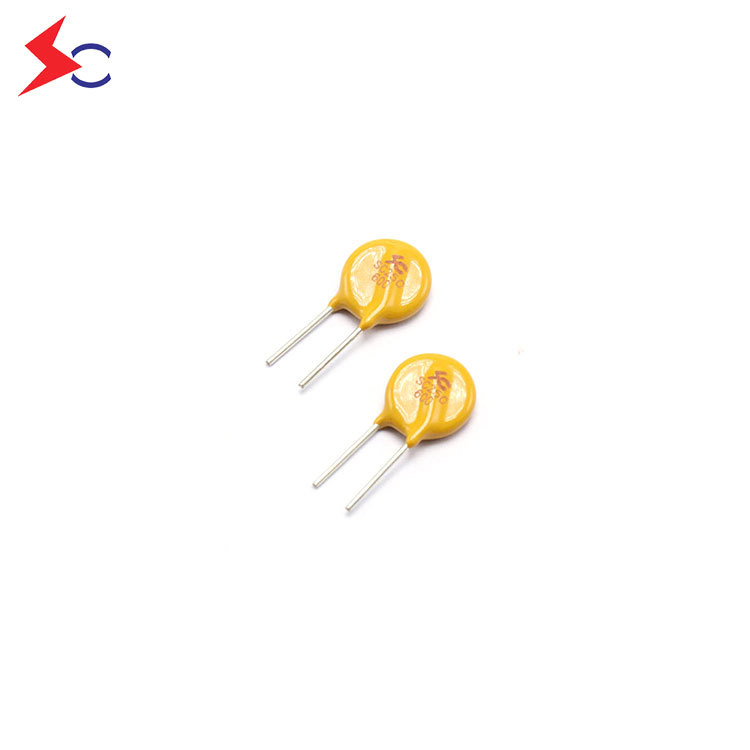

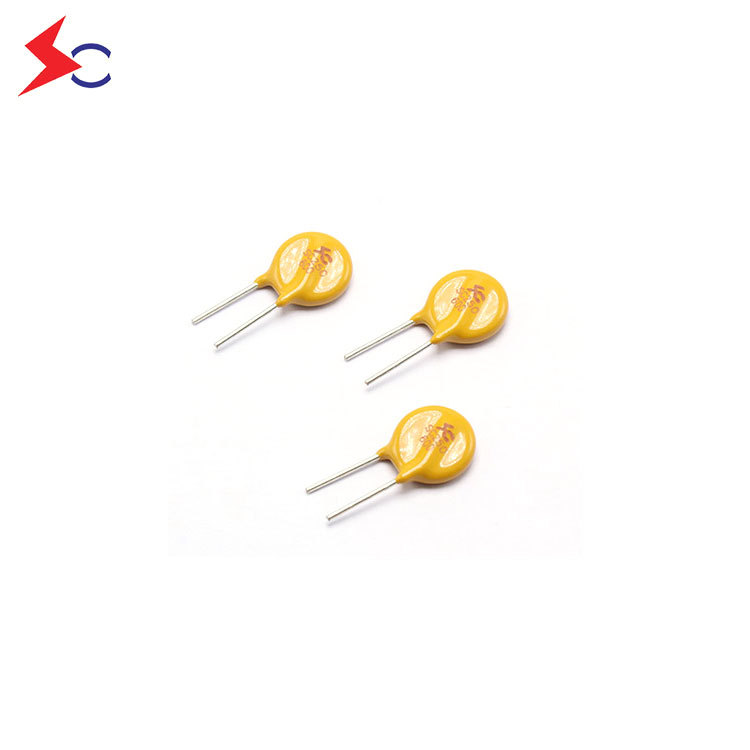

SOCAY Electronics Components DIP PPTC Fuse SC250-500SZ0D Vdc250V Radial Lead Resettable Polymer PTCs For IT Equipment
SKU: SC250-500SZ0D
(0)
0 Sold
$0.09
$0.10
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SC250-500SZ0D
Hold Current—I hold(A)：0.5
Trip Current—I trip(A)：1.0
Rated Voltage—V max(Vdc)：250
Max Current—I max(A)：5.0
Typical Power—P dtyp.(W)：3.0
Maximum Time To Trip—Current(A) ：2.5
Maximum Time To Trip—Time(Sec.)：15.0
Resistance—R min(Ω)：1.0
Resistance—R 1max(Ω)：3.0
Part Number：SC250-500SZ0D
Hold Current—I hold(A)：0.5
Trip Current—I trip(A)：1.0
Rated Voltage—V max(Vdc)：250
Max Current—I max(A)：5.0
Typical Power—P dtyp.(W)：3.0
Maximum Time To Trip—Current(A) ：2.5
Maximum Time To Trip—Time(Sec.)：15.0
Resistance—R min(Ω)：1.0
Resistance—R 1max(Ω)：3.0
