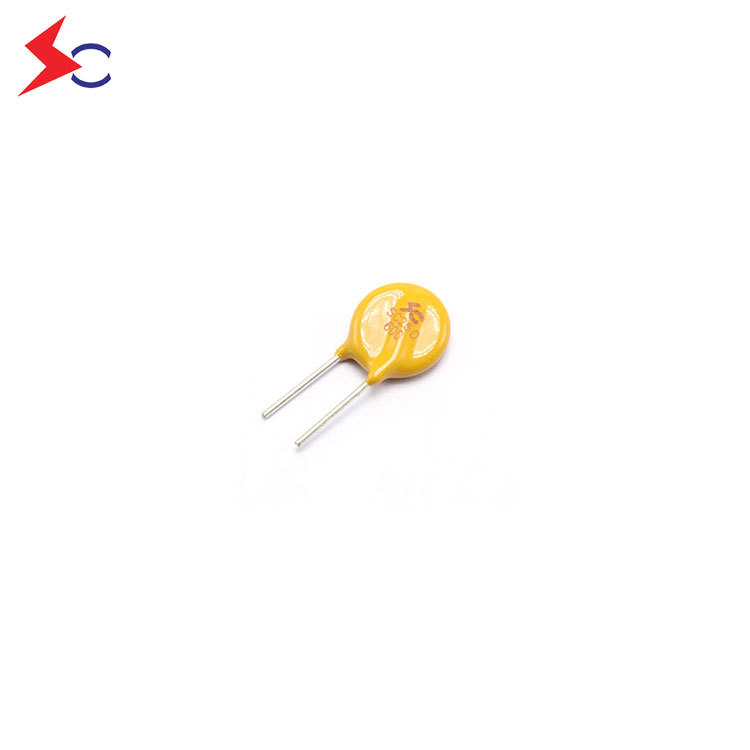

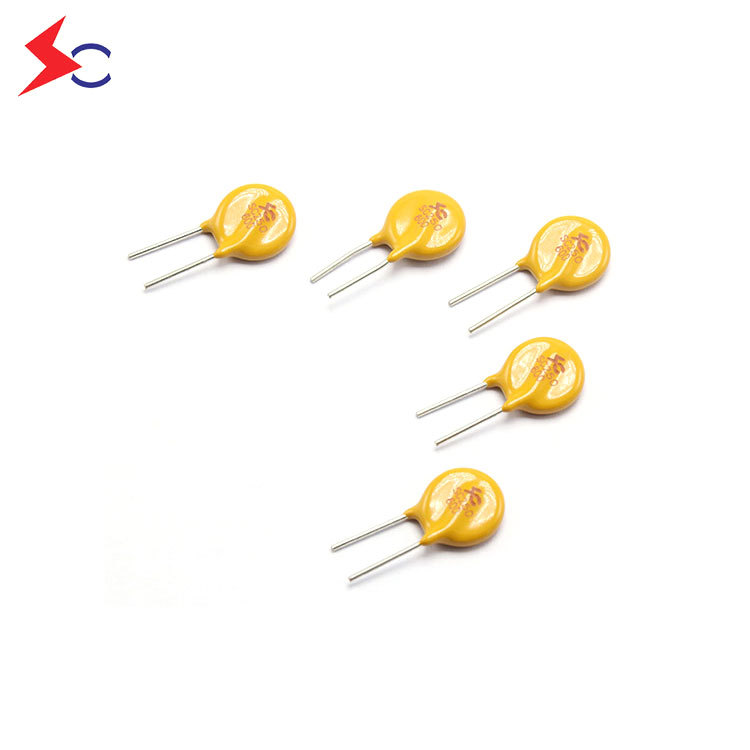

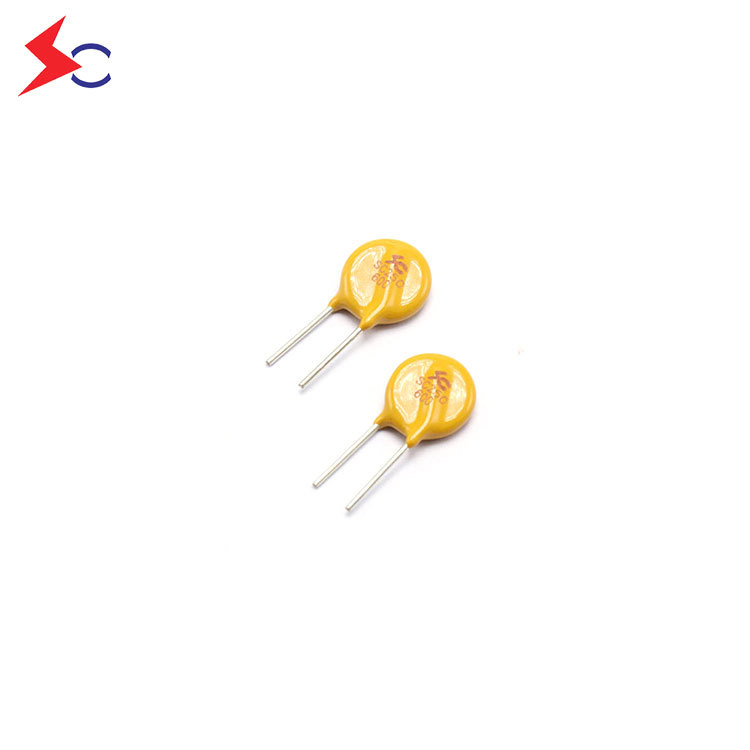

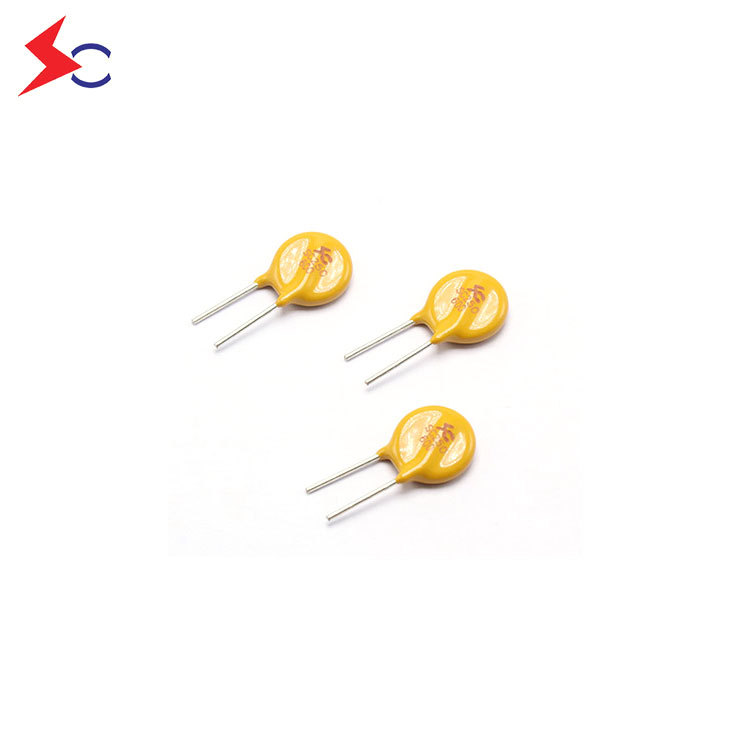

SOCAY Fuses Components DIP PPTC SC250-250SZ0B Radial Lead Resettable Polymer PTCs From Original Factory
SKU: SC250-250SZ0B
(0)
0 Sold
$0.10
$0.11
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SC250-250SZ0B
Hold Current—I hold(A)：0.25
Trip Current—I trip(A)：0.5
Rated Voltage—V max(Vdc)：250
Max Current—I max(A)：3.0
Typical Power—P dtyp.(W)：1.0
Maximum Time To Trip—Current(A) ：3.0
Maximum Time To Trip—Time(Sec.)：6.0
Resistance—R min(Ω)：1.5
Resistance—R max(Ω)：5.0
Resistance—R 1max(Ω)：8.0
Part Number：SC250-250SZ0B
Hold Current—I hold(A)：0.25
Trip Current—I trip(A)：0.5
Rated Voltage—V max(Vdc)：250
Max Current—I max(A)：3.0
Typical Power—P dtyp.(W)：1.0
Maximum Time To Trip—Current(A) ：3.0
Maximum Time To Trip—Time(Sec.)：6.0
Resistance—R min(Ω)：1.5
Resistance—R max(Ω)：5.0
Resistance—R 1max(Ω)：8.0
