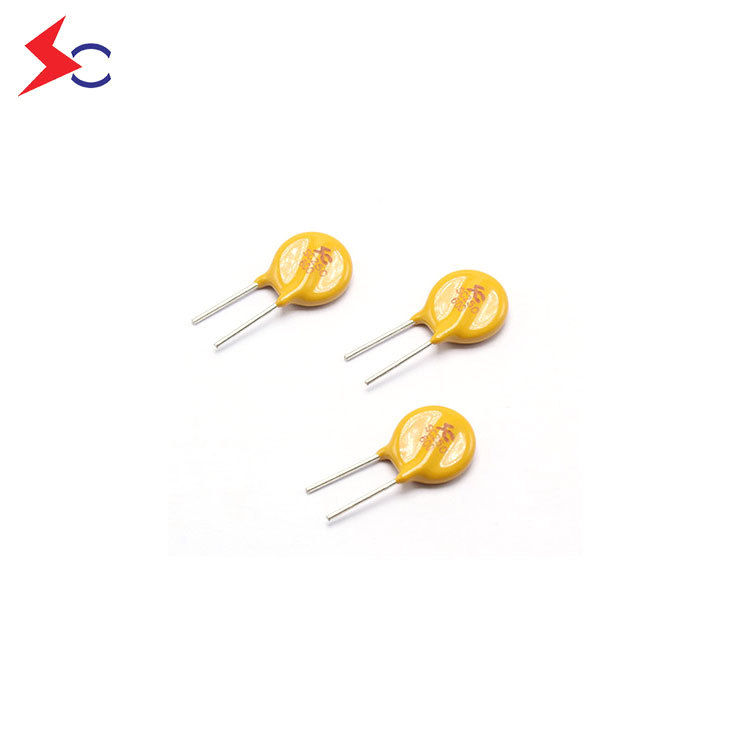

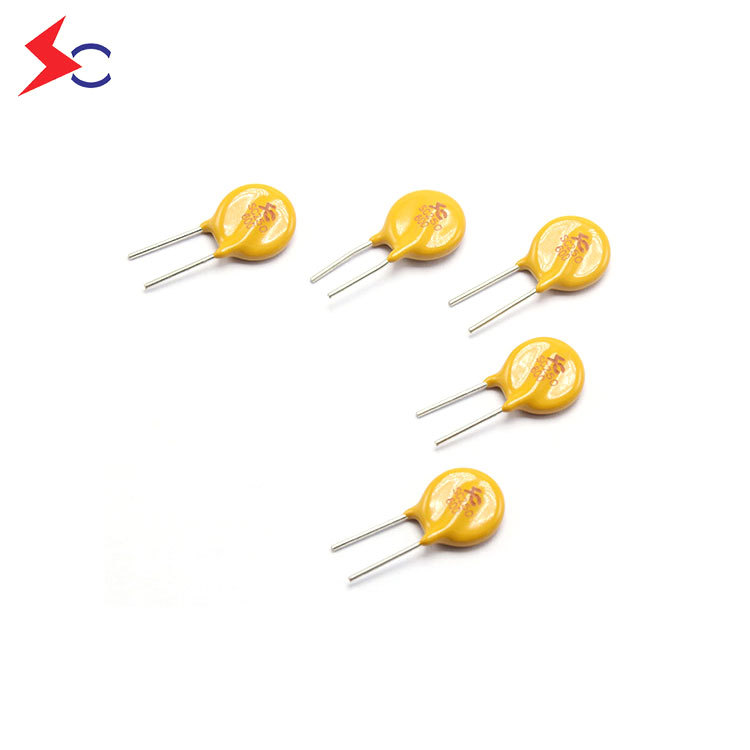

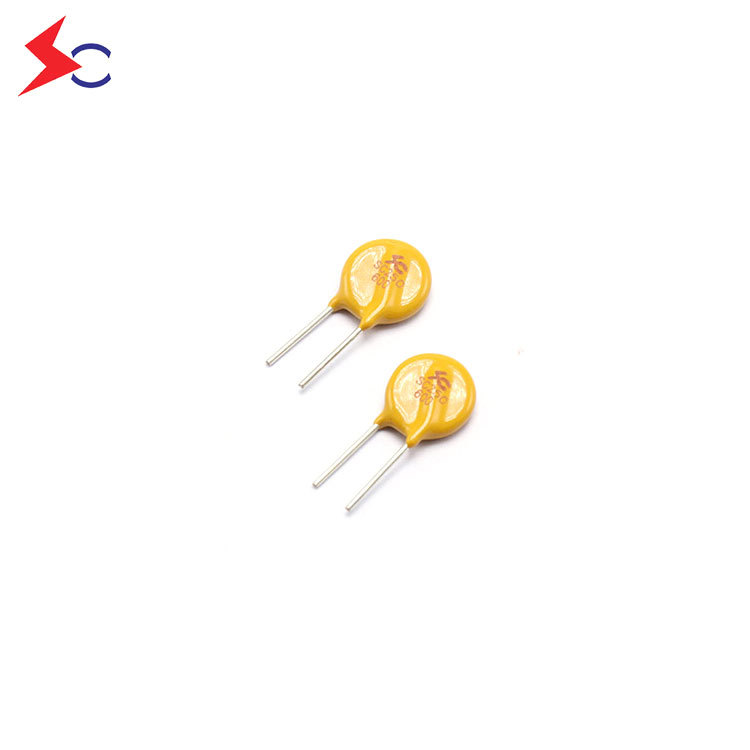

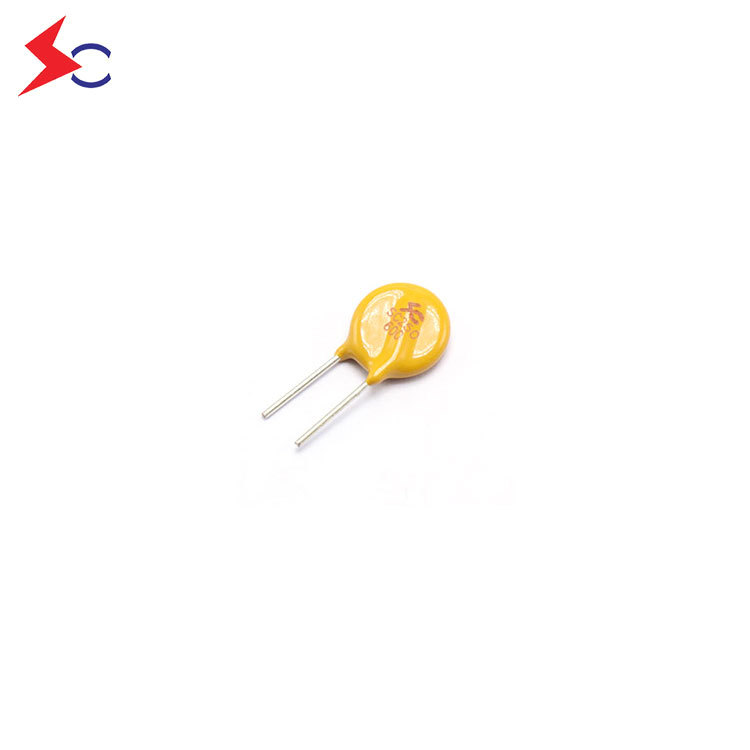

SOCAY High Quality Radial Lead PPTC Fuse Vdc250V With I hold 0.4A SC250-400CZ0D DIP Resettable Polymer PTCs For Automotive Application
SKU: SC250-400CZ0D
(0)
0 Sold
$0.08
$0.09
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SC250-400CZ0D
Hold Current—I hold(A)：0.4
Trip Current—I trip(A)：0.8
Rated Voltage—V max(Vdc)：250
Max Current—I max(A)：3.0
Typical Power—P dtyp.(W)：2.5
Maximum Time To Trip—Current(A) ：2.0
Maximum Time To Trip—Time(Sec.)：10.0
Resistance—R min(Ω)：0.75
Resistance—R 1max(Ω)：1.87
Part Number：SC250-400CZ0D
Hold Current—I hold(A)：0.4
Trip Current—I trip(A)：0.8
Rated Voltage—V max(Vdc)：250
Max Current—I max(A)：3.0
Typical Power—P dtyp.(W)：2.5
Maximum Time To Trip—Current(A) ：2.0
Maximum Time To Trip—Time(Sec.)：10.0
Resistance—R min(Ω)：0.75
Resistance—R 1max(Ω)：1.87
