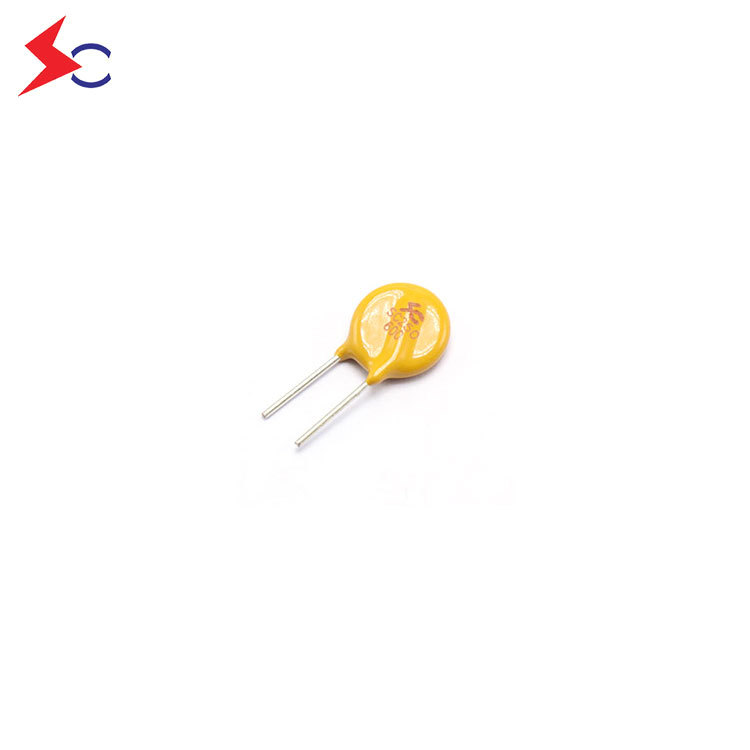

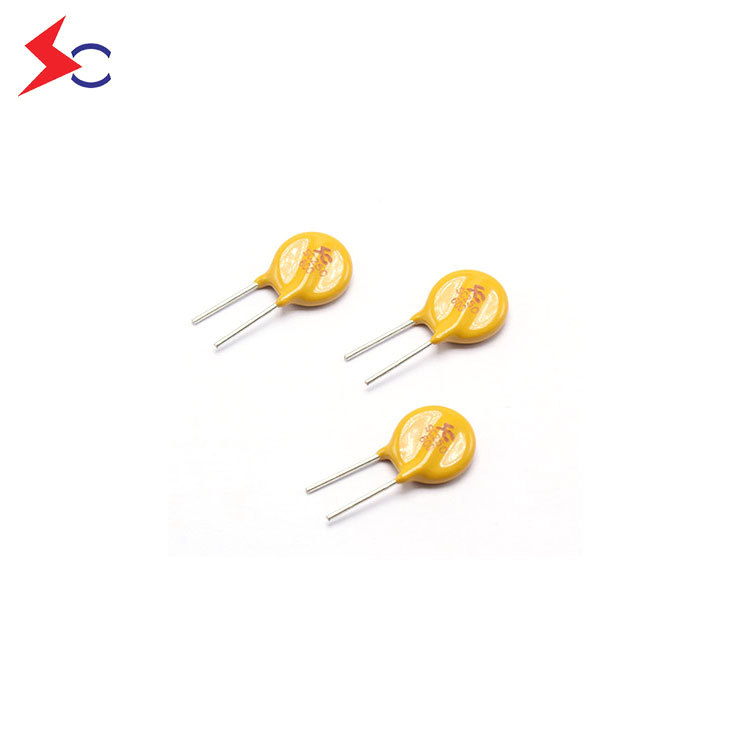

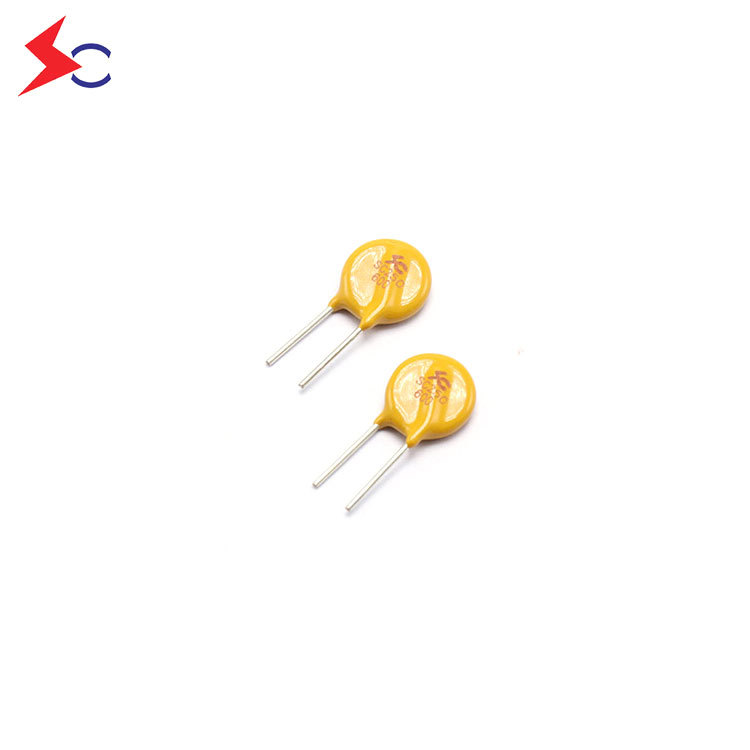

SOCAY Manufacturer DIP PPTC Fuse Vdc250V 0.9A SC250-900SZ0D Radial Lead Resettable Polymer PTCs For IEEE1394 Ports
SKU: SC250-900SZ0D
(0)
0 Sold
$0.13
$0.14
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SC250-900SZ0D
Hold Current—I hold(A)：0.9
Trip Current—I trip(A)：1.8
Rated Voltage—V max(Vdc)：250
Max Current—I max(A)：5.0
Typical Power—P dtyp.(W)：4.5
Maximum Time To Trip—Current(A) ：4.5
Maximum Time To Trip—Time(Sec.)：20.0
Resistance—R min(Ω)：0.5
Resistance—R 1max(Ω)：1.5
Part Number：SC250-900SZ0D
Hold Current—I hold(A)：0.9
Trip Current—I trip(A)：1.8
Rated Voltage—V max(Vdc)：250
Max Current—I max(A)：5.0
Typical Power—P dtyp.(W)：4.5
Maximum Time To Trip—Current(A) ：4.5
Maximum Time To Trip—Time(Sec.)：20.0
Resistance—R min(Ω)：0.5
Resistance—R 1max(Ω)：1.5
