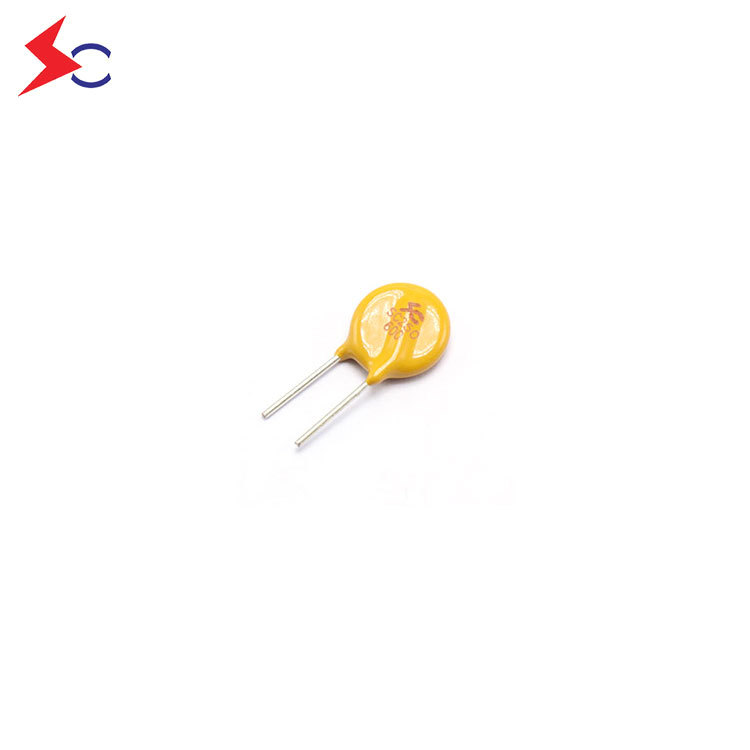

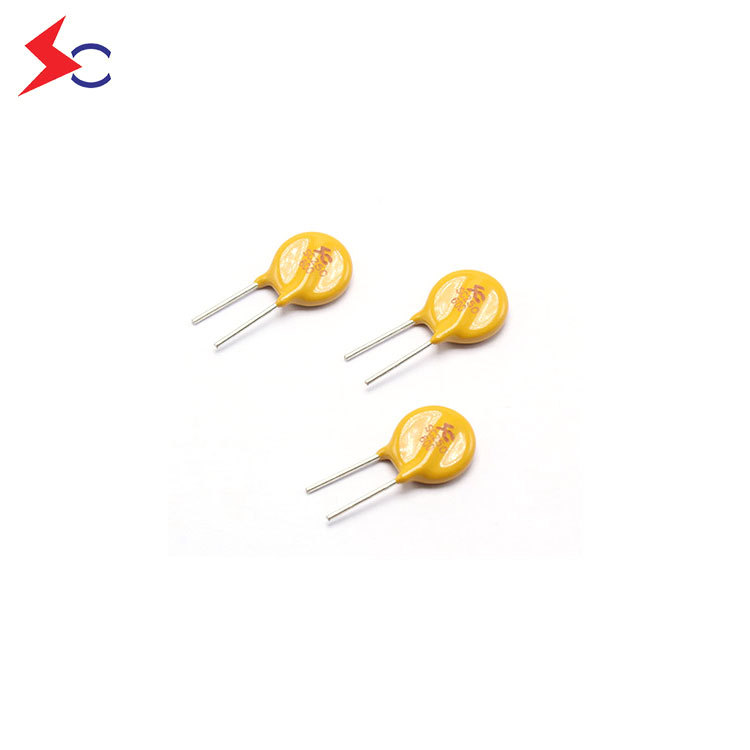

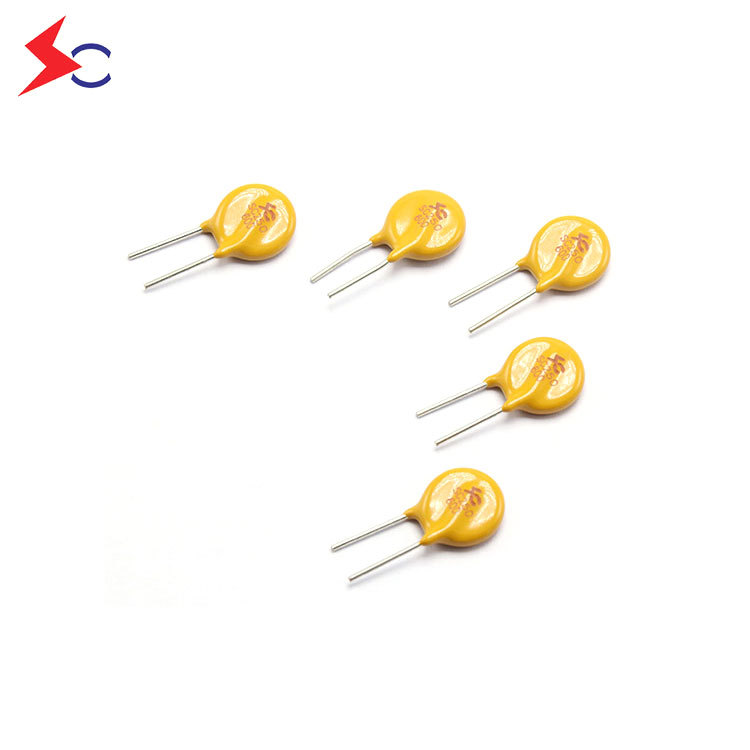

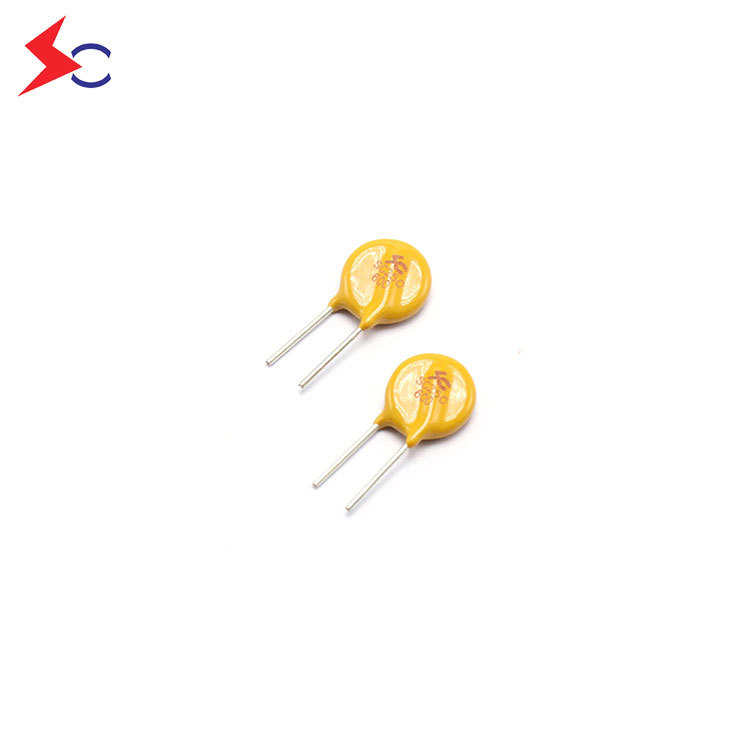

SOCAY Vdc250V 0.4A DIP PPTC Fuse SC250-400SZ0D Radial Lead Resettable Polymer PTCs For Over-Current Protection
SKU: SC250-400SZ0D
(0)
0 Sold
$0.07
$0.08
The Price Is For Reference Only. Please Consult Customer Service.
Part Number：SC250-400SZ0D
Hold Current—I hold(A)：0.4
Trip Current—I trip(A)：0.8
Rated Voltage—V max(Vdc)：250
Max Current—I max(A)：3.0
Typical Power—P dtyp.(W)：3.5
Maximum Time To Trip—Current(A) ：2.0
Maximum Time To Trip—Time(Sec.)：20.0
Resistance—R min(Ω)：1.2
Resistance—R max(Ω)：1.9
Resistance—R 1max(Ω)：2.9
Part Number：SC250-400SZ0D
Hold Current—I hold(A)：0.4
Trip Current—I trip(A)：0.8
Rated Voltage—V max(Vdc)：250
Max Current—I max(A)：3.0
Typical Power—P dtyp.(W)：3.5
Maximum Time To Trip—Current(A) ：2.0
Maximum Time To Trip—Time(Sec.)：20.0
Resistance—R min(Ω)：1.2
Resistance—R max(Ω)：1.9
Resistance—R 1max(Ω)：2.9
